DCGFB Carbonated Pulp Juice Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

juice machine
1. carboanted juice with pulp
2. 3000-20000BPH
3. PET bottle with plastic scew cap
4. full-auto 4 in 1 monoblo

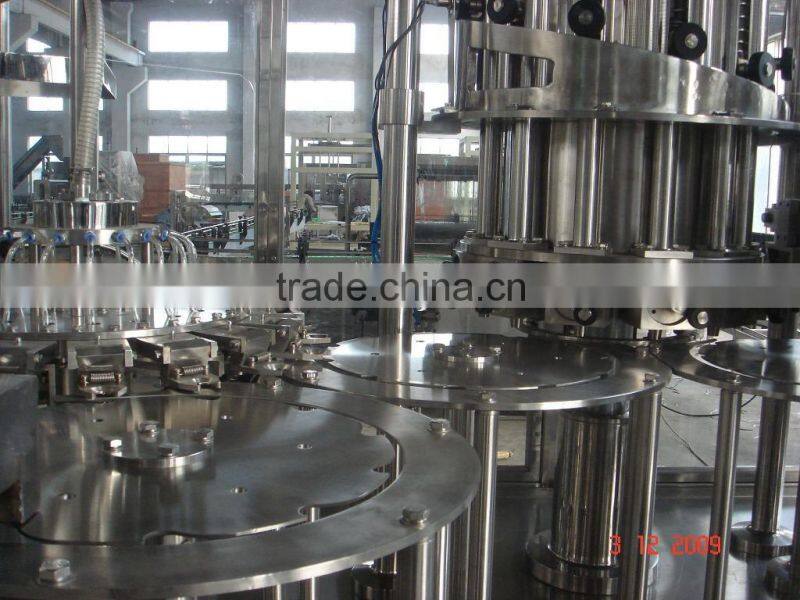

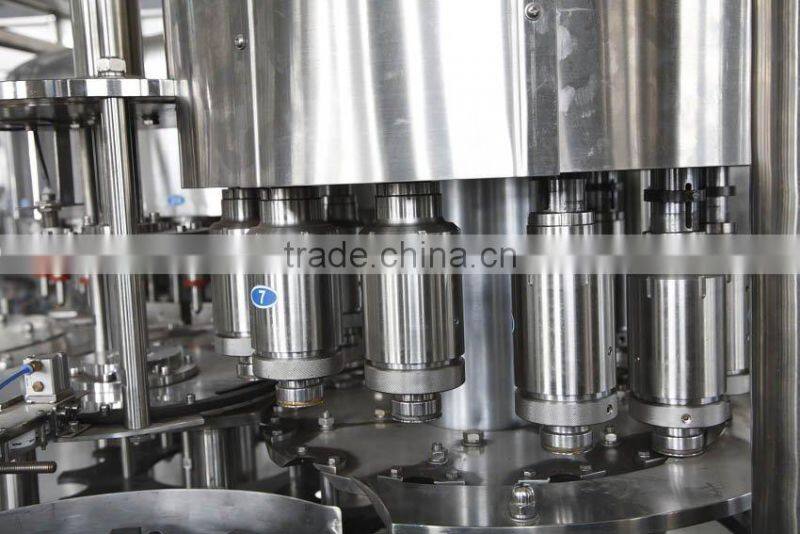

DCGFB Carbonated pulp juice machine

It is used for filling carbonated juice with pulp in PET bottle with plastic screw cap. we can supply the turnkey and installation running service.

Characteristics:

1. it can carry out washing pulp filling, carbonated juice filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.

Technical parameters:

Model	DCGFB18-12-18-6	DCGFB24-18-24-8	DCGFB32-24-32-12	DCGFB40-32-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	15000
Suitable Bottle Types(mm):	Round or square square shaped bottle
PET Bottle Dimension: (mm)	Bottle diameter:50-110 Height :150-330mm
Suitable Cap Standard:	plastic screw Cap
Filling Precision	within ±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	4.3	6.5	10	12
Overall Size(mm)(L×W×H)	3170×2070×2400	4070×2350×2400	5100×2600×2400	6250×3050×2400
Total Weight: (kg)	4000	5000	6000	7000
