compressed air hose clamp

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Port Taiwan port
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	SCHEME
Model Number	B&C series	Usage	Pipe Clamp
Material	Other, Metal, galvanized steel & stainless steel	Structure	Swivel Clamp
Standard or Nonstandard	Standard

Product Description

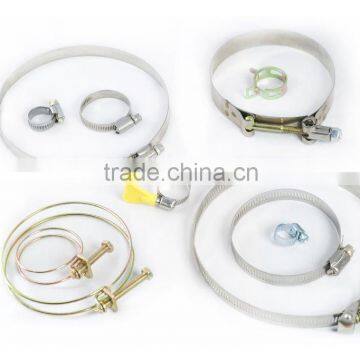

Compressed air hose clamp

* Band width : 8mm & 12.7mm

* Material :

1. Galvanized steel ( Carbon steel )

2. AISI #304 Stainless Steel or AISI #410 Stainless Steel

3. Screw : Normal screw & Philip screw

* Competitive Advantages :

1. Well and High Quality Control
2. Prompt Delivery
3. Customer's Design and Logo are Welcome
4. Competitive Prices
5. ODM Accepted
6. OEM Accepted

* Specification & Packing :

SIZE	MM	PACKING
		PCS / BOX	PCS / CTN	N.W. ( KGS )	G.W. ( KGS )	CUFT
		PCS / BOX	PCS / CTN	N.W. ( KGS )	G.W. ( KGS )	CUFT
Band Width 8mm
1/2"	8 ~ 13	200 pcs	2000 pcs	10.4	11.4	0.61
5/8"	10 ~ 16	200 pcs	2000 pcs	11	12	0.61
3/4"	13 ~ 19	200 pcs	2000 pcs	11.3	12.3	0.84
7/8"	16 ~ 23	200 pcs	2000 pcs	11.9	12.9	0.84
1"	13 ~ 26	200 pcs	2000 pcs	13.3	14.3	1.23

SIZE	MM	PACKING
		PCS / BOX	PCS / CTN	N.W. ( KGS )	G.W. ( KGS )	CUFT
		PCS / BOX	PCS / CTN	N.W. ( KGS )	G.W. ( KGS )	CUFT
Band Width 12.7mm
5/8"	7 ~ 16	100 pcs	1000 pcs	14.2	15.2	0.84
3/4"	10 ~ 19	100 pcs	1000 pcs	14.3	15.3	0.84
7/8"	10 ~ 23	100 pcs	1000 pcs	14.5	15.5	1.23
1-1/16"	19 ~ 27	100 pcs	1000 pcs	15.7	16.7	1.23
1-1/4"	16 ~ 32	100 pcs	1000 pcs	16.5	17.5	1.32
1-1/2"	21 ~ 38	100 pcs	1000 pcs	18.3	19.3	1.32
1-3/4"	19 ~ 44	100 pcs	1000 pcs	19.2	20.7	1.94
2"	32 ~ 51	100 pcs	1000 pcs	20.1	21.6	2.36
2-1/4"	38 ~ 57	100 pcs	1000 pcs	21.5	23	2.5
2-1/2"	40 ~ 64	100 pcs	1000 pcs	22.5	24	2.5
2-3/4"	46 ~ 70	100 pcs	1000 pcs	23.5	25	3.42
3"	57 ~ 76	50 pcs	500 pcs	12.6	14.1	1.94
3-1/4"	67 ~ 83	50 pcs	500 pcs	13	14.5	2.36
3-1/2"	65 ~ 89	50 pcs	500 pcs	13.1	14.6	2.36
3-3/4"	72 ~ 95	50 pcs	500 pcs	13.5	15	2.5
4"	78 ~ 101	50 pcs	500 pcs	13.8	15.3	2.5
4-1/4"	84 ~ 108	50 pcs	500 pcs	14.2	15.8	3.42
4-1/2"	91 ~ 114	50 pcs	500 pcs	15	16.5	3.42
4-3/4"	105 ~ 121	50 pcs	500 pcs	16	17.5	3.42
5"	105 ~ 127	50 pcs	500 pcs	16.8	18.3	3.42
5-1/2"	118 ~ 140	50 pcs	500 pcs	19.5	21.8	3.6
6"	130 ~ 152	50 pcs	500 pcs	21	22.8	3.98
6-1/2"	141 ~ 165	50 pcs	500 pcs	21.5	23.8	3.98
7"	156 ~ 178	50 pcs	500 pcs	22	24.8	3.98
8"	165 ~ 203	50 pcs	500 pcs	24	26.8	3.98

We produced all kind of " HOSE CLAMPS " for 35 years ago in Taiwan, our products of HOSE CLAMPS had shipped to Germany, Sweden, Holland, France, U.K., Switzerland, Spain, Russia, USA, Canada, South America, Middle-East countries......for long time, and we had won a good reputation from our customers.

Feel free to take a closer look around our pages, and if you have interested in, please advise your favorite items.

~~~~~Welcome your enquiry and orders~~~~~

Applications

Heavy Vehicle, Mass Transport

In heavy vehicles and mass transportation, generally stainless steel clamps with high torque values are preffered. In these vehicles, our stainless steel clamps that can endure great torque values under high pressure are used.

On Board Equipment

Our stainless steel clamps can easily meet the high torque values that are needed to prevent leakage in systems that bear high pressures like sewage trucks, cement pumps and cement equipments, fire extinguishers, watering vehicles and systems and fuel transfer systems etc...

Waste treatment Facilities

In waste treatment and transfer applications where non-leakage is important and connections where high torque values are needed, stainless steel clamps that can meet high torque values and that prevent leakage are preffered.

Maintenance and Repair

As a lot of original hardware producers in Turkey prefer stainless steel clamp models in their products, the same type of clamps are used during maintenance and repair.

Marine, Ship Construction

In ship constructon, yacht and boat manufacturing, pipe repairing, exhaust systems, cable installation and fixing applications our clamp models are used. Stainless steel type hose clamps and retaining clamps are preferred in connections where high corrosion resistance values are needed.

Gas and Petrochemical

Our hose clamps are used in applications where non-leakage is requested and naming fuel applications.

Light and Heavy Construction Vehicles

Our retaining clamps are used in stabilizing the casings used to protect the special hoses and cables that need heavy protection due to friction and vibration.

Heating-Cooling

Our hose clamps and retaining clamps are used to prevent the leakage in systems and applications used for heating-cooling purposes.
