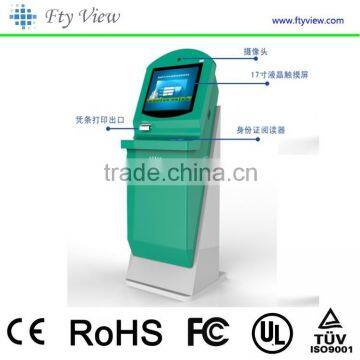

OEM/ODM cash and coin dispenser self-service ATM payment kiosk Information kiosk machine Quality Choice

       LCD Panel

Type of Display

TFT-LCD

Panel Size

15, 17, 19 inch

Display Ratio

4:3 or 16:9

Intel® i3-3220

Graphics

Intel HD Graphic 2500

DDR3, 4GB

Card Reader

Card Type: Magcard, IC Card, RF Card, Mifare Card, UL Card

Interface: RS232/USB

Card Entry Method: Signal of Magnetic, Optoelectronic and rear card

Encrypted Pin Pad

Key Life Span: 2,000,000 cycles

Key Force: 2-3N

Key Trip: >2.5mm

Protection Level: IP65

Bill Acceptor

Brand: Cash Code/ MEI/ ITL/ICT

Validation Rate: High than 96%

Capacity: 600notes~1500notes

Thermal Printer

Brand: Epson/Custom/Citizen

Auto-cutter: Included

Width of Paper: 50mm/80mm/112mm

Printing Speed: 150mm/s

Buffer of Data: 4Kb

Interface: RS232/USB

A4 Printer, Coin acceptor, UPS, Web-camera etc

Shell Material

Tempered glass+4.5 mm thickness Metal Back Shell

Metal case with powder burning;Tempered glass to protect LCD panel

2*10W built-in stereo speakers

Heat Dispersion

Built-in DC fans

Standby

≤3W

Working

30W-180W

Business product promotional display

supermarket, large-scale shopping malls, exclusive agency,

chain shops, large-scale sales, star-rated hotels,restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,

stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,

Internet bars, beauty shops, golf course
