h4 bi xenon hid lamp , bi-xenon HID bulbs hi / lo

1. HID XENON Bulb parameters:

1) HID XENON: Color Temperature: 3000K,4300K,5000K,6000K,8000K,10000K,12000K,15000K,20000K,25000K,30000K

2) HID XENON: Output: 35W,50W or 55W

3) HID XENON: Starting Voltage: 23 KV

4) HID XENON: Luminous: 2800 LM +/-200 LM

5) HID XENON: Life: >3000 Hours

6) HID XENON: As for H4 Hi/Lo lamps,the ray axis can be controlled forward and backward for 4 mm,and up and down for 1.0mm.

2.HID XENON model

5202,H1,H1C,H3,H3C,H4,H6,H7,H7C,H7R,H8,H9,H10,H11,H13,9004,9005,9006,9007,H4-2,H13-2,9004-2,9007-2,D1C/R/S,D2C/R/S,D2H,D4S,H4-3,H13-3,9004-3,9007-3,H4-4,880/881 etc

3.HID XENON Color temperature and color

*The color of hid xenon bulb is expressed by color temperature:

*HID XENON 3000k~golden

*HID XENON 4300k~yellow white

*HID XENON 5000k~shallow yellow

*HID XENON 6000k~diamond white

*HID XENON  8000k~blue white

*HID XENON 10000k~Cambridge blue

*HID XENON 15000k~blue red

*HID XENON 20000k~pink

*HID XENON 25000k~mauve

*HID XENON 30000k~purple

4. HID XENON Ballast test:

1) HID XENON :Open circuit protection test

2) HID XENON: Short circuit protection test

3) HID XENON: Short voltage protection test

4) HID XENON: Over voltage protection test

5) HID XENON: Flash impact test: no flashing during steady status

6) HID XENON: Shockproof, waterproof and dustproof test

7) HID XENON: EMC anti-jamming test

                           HID canbus ballast parameter

Input voltage range: 9-16V/9-18V

Rated voltage: 13.2V/13.5

Startup current: 6.0-6.5A

Normal input current: 3.2A/3.25A

Max. Start voltage: 23KV

Output power: 35W/55W

low-voltage lighting: >8.5V

low-voltage protection: <6V

High-voltage lighting: <17V

High-voltage protection: >15.5V

Ballast size:  83 * 63 * 15MM/121*71*21mm

Operating temperature: -40C~+105C

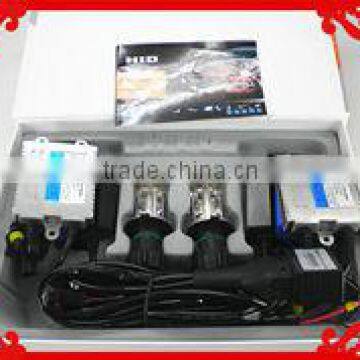

Packing list

 One pair of bulbs,Two ballasts,Other accessories, installation instruction Booklet,warranty card

Packaging Detail

 Brand packing, neutral packing, white box packing, or OEM packing, according to you request.

Delivery Detail

 fast shipping, no delay
