Richmor H.264 SD MDVR With 3G Remote Control and GPS Tracking Bus Mobile DVR
- Shenzhen
 - Credit Card

You May Like
-


3G 4CH Mbile DVR GPS/Alarm PTZ Control Phone Monitor/Call SMS
 -


3G GPS WIFI CAR MOBILE DVR H 264 Dual SD Card Memery With OTA Phone Calling Sim Card
 -


3G New Mobile DVR Taxi DVR GPS/Alarm CE FCC ROHS Certificate
 -


4CH D1 Car School Bus Truck DVR With Two Remote Cameras
 -


HD Car DVR With Motion Alarm, Free CMS Software, Mobile Phone Surveillance
 -


Double SD Card Bus Truck Car Mobile DVR 4ch Mobile DVR 3G/4G G-sensor GPS

Product Details
| Place of Origin | Guangdong, China | Brand Name | Richmor/Customzied | |
| Model Number | RCM-MDR510SDG |
Product Description

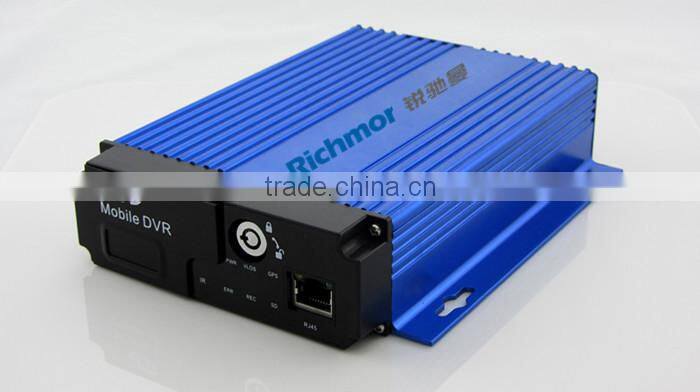

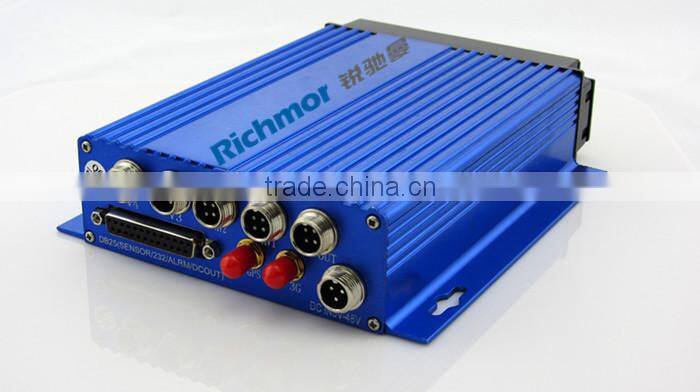

Richmor h.264 SD MDVR with 3G remote control and GPS tracking bus mobile DVR
1.SMS Device Configure
Only one SMS to get device information and change ID/Serve IP etc no matter when car if online or offline.
2.OTA Automatic Remote Updating
Solve the traditional updating one by one and easily broken issue, with new OTA function,updated through FTA Server
3.Phone Calling
When device offline, officer can not talk with driver through software intercom,now Phone Calling solve this issue, can can device SIM Card to get latest information

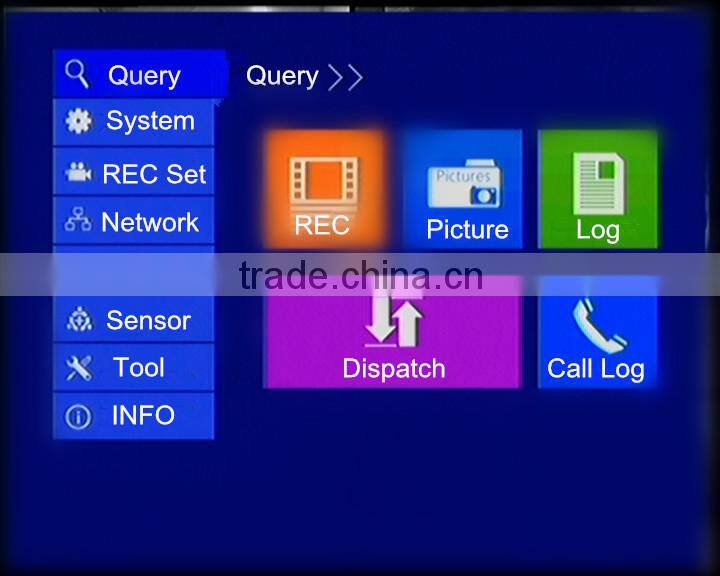

4.Smart Digital GUI Interface
Solve the traditional MDVR setting issue, customer no longer to find where go to setting,our New one can view clearly and know where to set

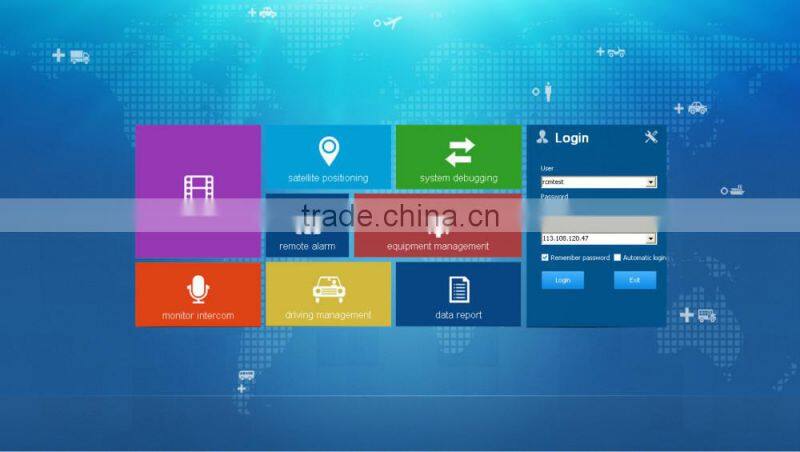

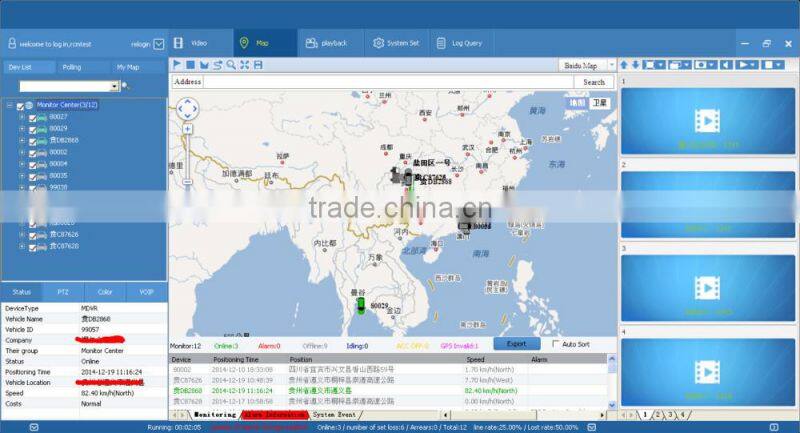

Richmor New Coming Patent Design Powrful Software for 3G Mobile Vehicle DVR
Parameter
Item  | Parameter  | |
OS  | Linux  | |
Language  | English/Chinese/Customized  | |
Video Compression  | H.264 Video Compression  | |
OSD  | Overlays information such as date time and vehicle ID  | |
GUI  | Graphical User Interface  | Setup system parameters with the remote control.  |
Video Record System  | Video Input  | 4Input: 4 CVBS, 1.0Vp-p, 75Ω; Aviation Plug  |
Video Output  | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view  | |
Preview  | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview  | |
Resolution  | D1/HD1/CIF, MAX:2 channels of D1 and 2 channels of CIF  | |
Record Quality  | 1-4 levels, 1 is the highest level and 4 is the lowest level.  | |
Video Standard  | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 4 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 4 level video quality optional; D1: 800Kbps ~ 3Mbps, 4 level video quality optional;  | |
Record Mode  | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.  | |
Audio  | Audio Input  | 2CH Aviation Plug Input  |
Audio Output  | 1CH Aviation plug,Output Voltage: 1~2V  | |
Compression  | G.726 compression, 8KB/s speed  | |
Alarm Input  | 6CH Alarm Input,Alarm Linkage  | |
Alarm Output  | 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off  | |
Communication Interface  | 2CH RS232,PTZ/POS/Oil Sensor/LED Advertisement Panel  | |
Wireless Transmission  | Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE  | |
GPS Position  | Support Built GPS/BD Module  | |
Storage  | SD Card  | Max 2 SD Card, each 128GB Loop Record  |
Update  | Support SD Card,OTA Remote Automatic Updating  | |
File Format  | .264  | |
File System  | Special FAT32 File System  | |
Record Replay  | Video Search  | Search By Record Time/Record Type etc  |
Playback  | Max support 4CH Replay /Stop/Fast/Slow at same time  | |
Support forward and backword play at the speed of: x 2,x4,x8,x16.  | ||
Voltage & Power  | Power Management  | Wide Voltage.Support Timed/Delay off  |
Input Voltage  | DC:+7V ~ +48V  | |
Output Voltage  | +12V/1.5A,+5V/1.5A  | |
Power Protection  | UPS,Automatic keep record file when power sudden off,make sure file not damage  | |
Power  | Working <5W, Standby <0.5W  | |
Working Environment  | Temperature  | -20℃ to +70℃  |
Humidity  | 20% to 80%  | |
Security  | Password  | User/Admin 2 Level Different Password  |
Other  | Size  | 170 (D)* 140.5/110.5 (W)* 40.3(H) mm  |
Net Weight  | 0.70 Kg  | |
SHIPPING INFO
Estimated Delivery Time
1. Sample: Will be delivery to you in 3-5 working days;
2. Quantity Order can be discussed
 Remarks:
*Your order will be dispatched before next 2 working day after full payment is done when stock lasts ( 48 hours aging time);
*Related documents will be sent after your order is dispatched, please check you email;
*All parcels will be shipped by DHL/TNT/UPS/EMS/FedEX/Air etc according your idea;
PAYMENT INFO
1. We accept T/T;Western Union;Paypal optional, please select the one convenient for you
2. 30% deposit before production,balance before shipping;
Remarks:
When payment done please sent bank slip to us so that we can check and arrange the production
WARRANTY INFO
Free Replacement :
Mobile DVR Can replace free under conditions Within 15 days after sale,in the precondition of our quality problem,non-artificial damage
Supplier Warranty:
We offer ONE YEAR warranty on this product. If your item has any warranty issue please contact us for a satisfying solution
Remarks:
*All qualified returns/replacement must be guided by us. We may not accept your return without informing us in advance.
1.What is the cost for software?
Richmor Software are free to you, will find Server/PC.WEB.Ipad.IOS.Android Client Software etc when you get package;
2.Should I set up server at my country or using your server?
Both,but we suggest setup server at your side which will be with perfect effective, Our well trained sales & engineers will be reply you in time to work together with you
3.OEM/ODM Service?
Yes, we can. Tell your idea to us, will work with our developers to design for you. USA NEW Software/Brasil Client Software/USA firmware/ Japan Hardware successfully case
Once products were pushed on CPSE Fair/Mexico Security Fiar/Peru Security fair etc ,attraced muilt worldwide customers.
