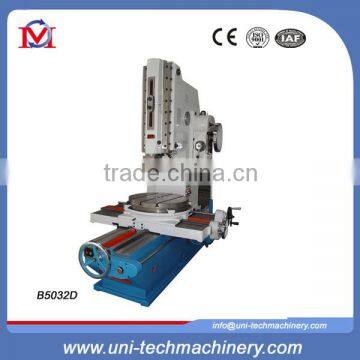

vertical key way slotting machine B5032D

FOB Price

US$ 3,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	UNITECH	Model Number	B5032
Voltage	220/380/400	Power(W)	4KW
Dimension(LWH)	226114952245MM	Weight	3000KG
Certification	CE,ISO9001	Warranty	ONE YEAR
After-sales Service Provided	Overseas third-party support available

vertical key way slotting machine

is used for slotting the flat and formed surfaces, keyways, etc.

Product Description

Features:

1. This machine is used for slotting the flat and formed surface keyways, etc.
2. It is suitable for either single piece of small batch production
3. The main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain
4. The worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually
5. The feed is stopped automatically, when the worktable is in case of trouble

Specification:

MODEL	B5020D	B5032D
Max.slotting length	200mm	320mm
Max.dimensions of wodplece(L*H)	485*200mmm	600*320mm
Max.weight of workpiece	400kg	500kg
Max.cutting force	5500N	7500N
No.of strokes per minutem	32,50,80,125,r ,p,m	20.32.50.80.r.p.m
Vertical ajustment of ram	230mm	315mm
Inclination of ram	0-8°	0-8°
Distance between tool holdingsurface and column front	485mm	600mm
Max.tool shank size (W*H)	25*40mm	25*40mm
Table diameter	500mm	630mm
Distance between table surface and low end of ram	320mm	490mm
Max.longitudinal travel of table	400/450mm	480/620mm
Max.cross travel of table	450/500mm	480/560mm
Max.Rotary angle of table	±360°	±360°
Range of table longitudinal and cross power feeds	0.08-1.21mm	0.08-1.21mm
Range of table power feeds	0.052-0.783	0.052-0.783
Power of rapid drive motor	3kw	4kw
Rotating speeed of main drive motor	1430r.p.m	960r.p.m
Overall dimensions (LWH)	1835513051980mm	218015052285mm
Weight(approx)	2400kg	3500kg

Our Services

1. Professional engineer inspection before shipment.

2. after delivery, details inspecting picture or video sent

3. easy-wear spare parts supplied by free

4. spare parts posted within 4 days for our machine itself own fault.

5. quality control time 12 months

Packaging & Shipping

Batch production:

Our product is done in the standard of normal workshop, large-scale production of high quality, ensure high efficiency and ensure product quality.
