Heavy Duty Vertical Metal Slotting Machine B5020D

FOB Price

US$ 10,050 - 25,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Uni-tech
Model Number	B5020		After-sales Service Provided	Overseas third-party support available

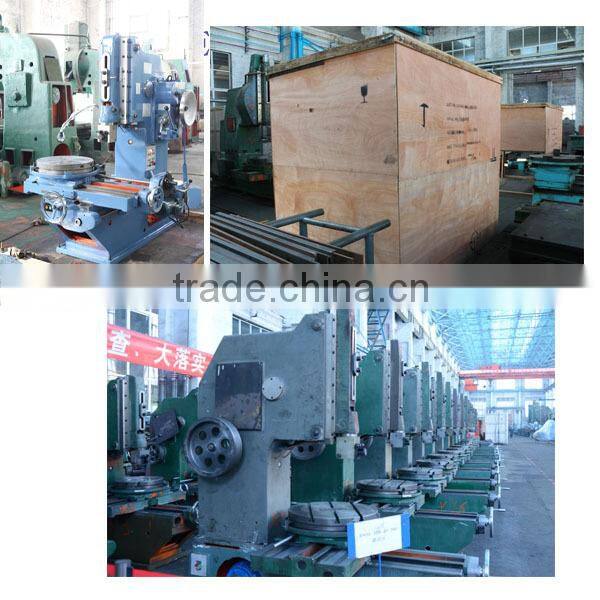

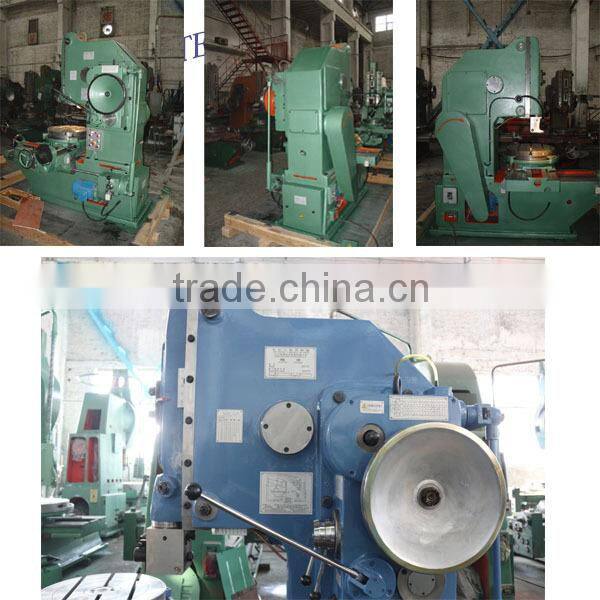

Heavy duty vertical metal slotting machine B5020D
Automatic slotting machine
Equipped with a braking motor&is operated

Heavy duty vertical metal slotting machine B5020D A

Automatic slotting machine

1. Slotting Machine
2. Equipped with a braking motor&is operated centrally
3. Lubuicated by the oil pump
4. Safe&reliable for operating

Specification	B5020D	B5032D	B5040	B5050A
Max slotting length	200mm	320mm	400mm	500mm
Max dimensions of workpiece (LxH)	485x200mm	600x320mm	700x320mm
Max weight of workpice	400kg	500kg	500kg	2000kg
Table diameter	500mm	630mm	710mm	1000mm
Max longitudinal travel of table	500mm	630mm	560/700mm	1000mm
Max cross travel of table	500mm	560mm	480/560mm	660mm
Range of table power feeds (mm)	0.052-0.738	0.052-0.738	0.052-0.783	3,6,9,12,18,36
Main motor power	3kw	4kw	5.5kw	7.5kw
Overall dimensions (LxWxH)	1836x1305x1995mm	2180x1496x2245mm	2450x1525x2535mm	3480x2085x3307mm
