JGH-60 Metal Craft Pattern-Roller.machine

FOB Price

US$ 4,000 - 8,000 / Set

1 Set(Min. Order)

Port QINGDAO; SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	UNI-TECH
Model Number	JGH-60		After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

JGH-60 Metal Craft Pattern-Roller.machine
1)easily gained by rolling
2)wide variety of patterns
3)CE,ISO9001

JGH-60 Metal Craft Pattern-Roller.machine

Product Description

Introduction

1.With continuous enlargement of markets for metalcrafts, people’s appreciation for and their taste in the beautiful metal crafts have also been increasing and developing.

2.The definitely-formed metal pieces once widely applied to processing the metal craft products can no longer meet people’s need for house furnishing, furniture ornament and city beautification.

3.Having noticed this situation, our company has, all by ourselves, devised and developed this peerless machine of JGH-60 Metal Craft Pattern-Roller.

4.With the rollers, a wide variety of patterns and designs can be easily gained by rolling on the shaped metal stocks in definite sizes.

5.With the metal crafts made of these processed stocks with the rolled patterns on, peoples aesthetical taste in the metal craft products will thus be sufficiently satisfied.

Technical Parameters and processing Capacities:

ITEMS		TECHNICAL PARAMETERS
		Dimensions of the Stocds to be Processed	Rotation Speed of The Main Shaft
Processing Capacities (mm)	Flat Steel	60×10	0~40 r/min Note: Always chose and use the right shaft speed in accordance with the sizes of the stocks to be worked on.(See Attachment 7 for the positive connection between rotation speed of the main shaft and frequency.)
	Square Steel	30×30
	Rectangular Steel Pipe	100×50
	Round Steel	φ8 -φ20
Decelerator for Cycloidal Pin-wheel		380V,50HZ/Power of motor:7.5KW./ Synchronous Speed of rotation:1500rpm./Output Rotation speed of Main Shaft:35rpm./Gear Ratio:1:43.
Net Weight (kg)		1050	NOTE: Three sets of pattern-rolling wheels are attached to your machine (For flat steel, square steel and rectangular pipe).Other rolling-wheels produced by us for various patterns are available for your option.
Gross Weight (kg)		1260
External dimension(mm)(L)		1636×990×1330

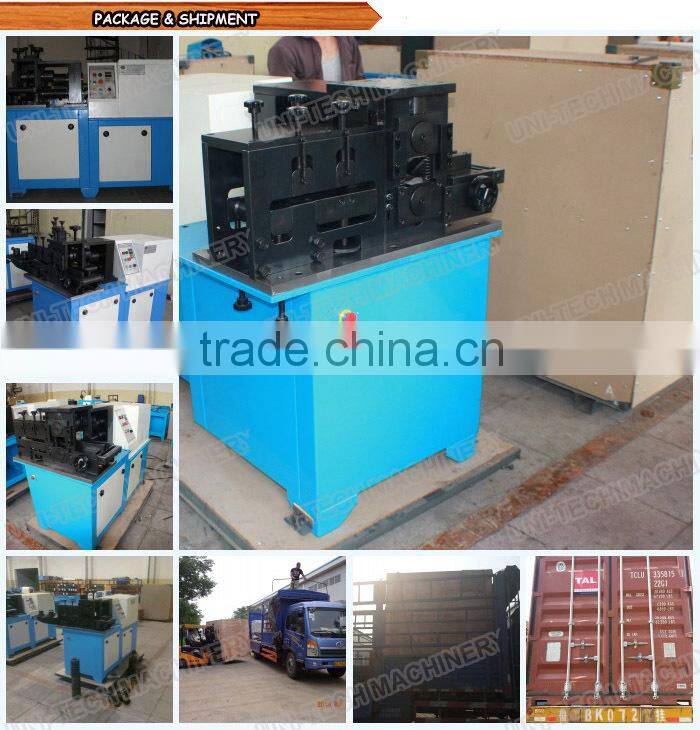

Packaging & Shipping
