Home > Products > Construction Machinery > Semi-electric Stacker of Fix Type Forks
Semi-electric Stacker of Fix Type Forks
US$ 1,500 - 2,500
/ Set
1 Set(Min. Order)
- Any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | UNI-TECH | Model Number | CDD10B | |
| Type | Manual Pallet Truck | Power Souce | Other | |
| Rated Loading Capacity | 1000kg | Max. Lifting Height | 3000mm | |
| Min. Lifting Height | 90mm | Fork Length | 608mm | |
| Fork Width | 580mm | Overall Dimensions | 1678mm | |
| Certification | CE,ISO9001 | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Semi-electric Stacker of fix type forks1)Compact design with strong European steel construction.
2)Simple and convenient lif

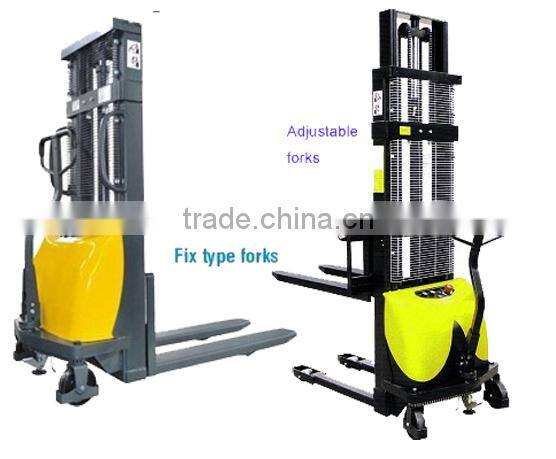

Semi-electric Stacker of fix type forks
Product Description:
Specification-Advantages:
• Handle-castor chain assist steering system greatly reduces the labor intensity.
• Equipped with explosion-proof valve,ensure no sharp drop of platform and prevent operator from harm.
• Over-discharge protection device greatly prolongs the battery use time.
• With adjustable forks,which can be lowered to the same level of the legs.
• Easy operating foot brake.

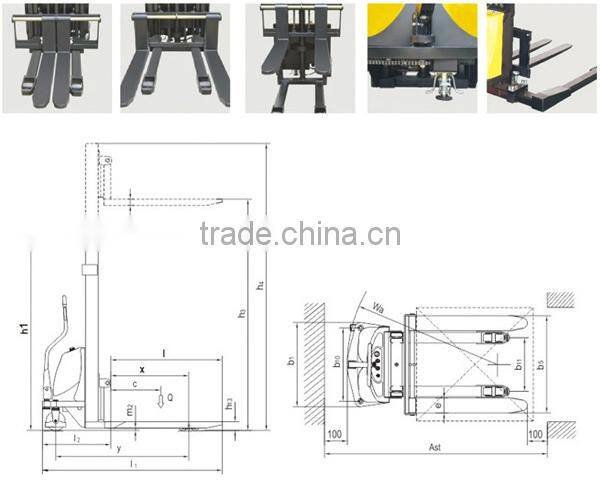

| MODEL | Fix type forks | Adjustable forks | ||||
| CDD10B -Ⅲ | CDD15B -Ⅲ | CDD10B -Ⅲ | CDD15B -Ⅲ | |||
| Load capacity | Q(kg) | 1000 | 1500 | 1000 | 1500 | |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 | |
| Fork height, lowered | h13(mm) | 90 | 90 | 90 | 90 | |
| Wheelbase | y(mm) | 1185 | 1265 | 1185 | 1265 | |
| Height, mast lowered | h1(mm) | 2090/1840/2090 | 2090/1840/2090 | |||
| Max. lift height | h3(mm) | 1600/2500/3000 | 1600/2500/3000 | |||
| Height, mast extended | h4(mm) | 2090/3060/3560 | 2090/3060/3560 | |||
| Overall length | l1(mm) | 1678 | 1740 | 1735 | 1835 | |
| Length to face of forks | l2(mm) | 608 | 670 | 665 | 765 | |
| Overall width | b1(mm) | 800 | 955 | |||
| Fork dimensions | s/e/l(mm) | 60/170/1070 | 60/142/1070 | |||
| Width overall forks | b5(mm) | 580/695 | 295-930 | |||
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2288 | 2368 | 2288 | 2368 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2267 | 2347 | 2267 | 2347 | |
| Turning radius | Wa(mm) | 1425 | 1505 | 1425 | 1505 | |
| Lift speed, laden/unladen | m/s | 0.08/0.1 | 0.08/0.1 | |||
| Lowering speed, laden/unladen | m/s | 0.15/0.12 | 0.15/0.12 | |||
| Service brake | Mechanical | |||||
| Battery voltage, nominal capacity K5 | V/Ah | 12/120 | 12/120 | 12/120 | 12/120 | |
| Battery weight | kg | 45 | 90 | 45 | 90 | |
| Service weight(with battery) | kg | 400/460/480 | 455/520/535 | 400/460/480 | 455/520/535 | |
Our services:
FAQ
PAYMENTS: 1.TT 30% advance payment product,pay the balance before delivery.
2.LC at sight.
COLOR, VOLOTAGE, POWER according to the client's requirement .
Any questions please don't hesitate to let me know!
Skype:shaojie_2010 Tel:+86-0632-5810216
Contact Us
- Tengzhou Uni-Tech Co., Ltd.
- Contact nameSHIMING ZHONG Chat Now
- Phone86-0632-5810219
- AddressROOM NO. 1004, XINXING BUSINESS BUILDING, TENGZHOU, SHANDONG,CHINA, Zaozhuang, Shandong
