Home > Products > Boring Machine > T8018A, T8018B,T8018C Vertical Fine Boring Machine
T8018A, T8018B,T8018C Vertical Fine Boring Machine
- 100 Set / Sets per Month
- QINGDAO SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | Normal | Automatic Grade | Semi-Automatic | |
| Max. Swing Diameter | 650mm | Place of Origin | Shandong, China | |
| Brand Name | UNI-TECH | Model Number | T8018A,T8018B,T8018C | |
| Voltage | 220V,380V,415V | Power(W) | 3.75KW | |
| Dimension(L*W*H) | 2680*1500*2325mm | Weight | N./G./G.W. 3500/3700Kg | |
| Certification | ISO9001;CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Vertical Fine Boring Machine1.Processing special heavy motor cylinders
2.Special milling function
3.CE,ISO9001

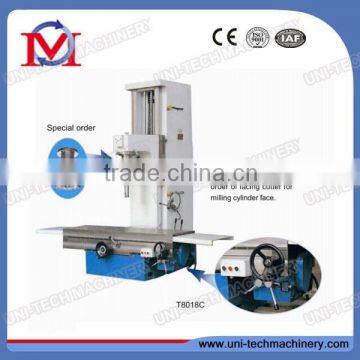

T8018A, T8018B,T8018C Vertical Fine Boring Machine
Feature:
The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
T8018A: mechanical-electronic drive and spindle speed frequency changed speed variation.
T8018B: mechanical drive.
T8018C: used for processing special heavy motor cylinders
1.boring cylinders of car,coach,tractor
2.Special milling function.
3.Longitudinal table motion.
Specification:
| Main Specifications | T8018A | T8018B | T8018C |
| Processing Diameter | 30-180 | 30-180 | Φ42-Φ180 mm |
| Max Boring Depth | 450 | 450 | 650mm |
| Spindle Speed r/min | Infinitely variable | 175,230,300,350,460,000 | 175,230,300,350,460,000 |
| Spindle Feed mm/r | 0.05,0.10,0.20 | 0.05,0.10,0.20 | 0.05,0.10,0.20 |
| Main Motor Power kw | 3.75 | 3.75 | 3.75 |
| Overall Dimensions mm(L x W x H) | 2000 x 1235 x 1920 | 2000 x 1235 x 1920 | 2680×1500×2325mm |
| Packing Dimensions mm(L x W x H) | 1400 x 1400 x 2250 | 1400 x 1400 x 2250 | 1578×1910×2575 mm |
| N.W/G.W kg | 2000/2200 | 2000/2200 | 3500/3700 |
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
Every month, we will export almost 500 sets machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.Because we are a know-how machinery expert.
View more about
PAYMENTS:
1.T.T 30% before production, T.T 70% after the BL copy
2.L/C at sight.
COLOR, VOLOTAGE, POWER according to your requirements .
If you have any questions, please don't hesitate to contact me.
Skype< shaojie_2010>
