Product Details
| Place of Origin | Guangdong, China | Brand Name | Bessky/ OEM | |
| Model Number | BE-9608H8IB100C | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
cctv surveillance dvr system security camera 8 channel,CMOS/Sony chip dome home use cctv camera system
Camera Feature:
Bullet CCTV Camera:

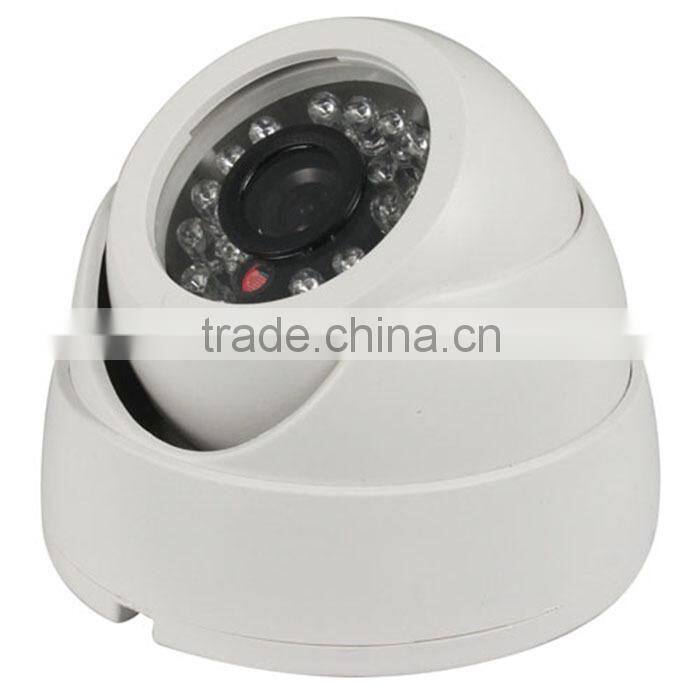

Plastic IR Dome Camera
24 pcs 5mm IR-LED ,IR Range: 20M
Built-in 3.6mm/F2.0 Board Lens
Dimension:90 x 83(H) mm
CCTV Camera Specification:
| Specification: | ||||||
| Model No. | BE-DIB70 | BE-DIB70S | BE-DIB100C | BE-DIB80M | BE-DIB60 | BE-DIB48C |
| Image Sensor | 1/3"Sony | 1/3"Sony | 1/3"CMOS | 1/3"CMOS | 1/3"Sony | 1/4"CMOS |
| ICX673BK CCD | ICX811AK CCD | PC1099 | PC3089 | ICX639BK CCD | BF3003 | |
| Horizontal Resolution | 700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD | 700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD | 1000TVL | 800TVL | 600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD | 480TVL |
| Pixels | PAL: 976 (H)×494(V) | PAL: 976 (H)×582(V) | 962 (H)×504(V) | 762 (H)×504(V) | PAL: 795 (H)×596(V) | PAL: 500(H)×582(V) |
| NTSC : 976 (H)×582 (V) | NTSC : 976 (H)×582 (V) | NTSC: 811 (H)×508 (V) | NTSC: 510(H)×492(V) | |||
| Television Standards | PAL/ NTSC | |||||
| IR LED | 24PCS of ¢5mm IR LED | |||||
| IR Distance | 20m | |||||
| Lens | Built-in 3.6mm/F2.0 Board Lens | |||||
| Sync System | Internal | |||||
| Usable Illumination | 0.01Lux/F2.0 | |||||
| IR Power On | CDS Auto Control | |||||
| S/N Ratio | ≥65dB (AGC OFF) | ≥54dB (AGC OFF) | ≥48dB (AGC OFF) | |||
| Gamma Correction | 0.45 | |||||
| Video Output | Composite Signal (1.0Vp-p, 75Ω) | |||||
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec | |||||
| Electronic Shutter | Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec | |||||
| Operation Temperature | -10°C ~ +50°C, RH: 95% Max | |||||
| Storage Temperature | -20°C ~ +60°C, RH: 95% Max | |||||
| White Balance | Auto | |||||
| Power Supply | DC12V | |||||
| Dimension | 92 x 64(H) mm | |||||
| Weight | 400g | |||||

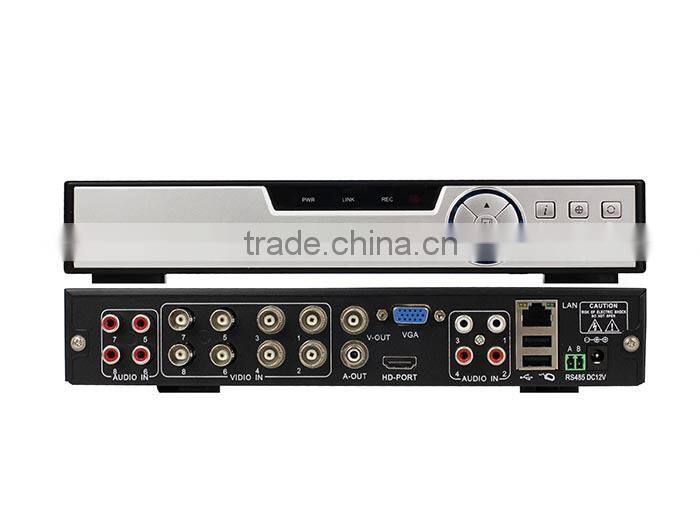

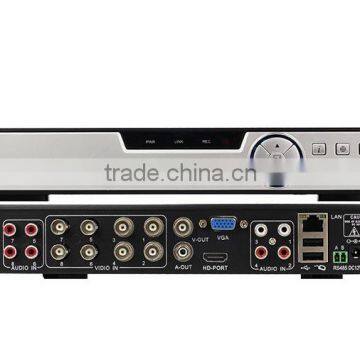

DVR Specification:
Video Compression Format | H.264 |
Video System | NTSC / PAL |
GUI OSD | YES |
Video Input | 8CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output | 1CH VGA/1CH HDMI/1CH BNC |
Audio Input/Output | 4CH audio input,1CH audio output(RCA) |
Maximum Recording Rate | 960H:960×480 pixels with 15FPS <NTSC> /960×576 pixels with 15FPS <PAL> |
Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage | Support 1 SATA HDD |
Alarm Input/Output | NO |
Multiplex Operation | Live display/record/playback/backup/network transmit |
Recording Mode | Manual/Timer/Motion/Alarm |
Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device | USB flash drive,USB hard disk and network backup |
Pre-alarm Recording | Recording for 10 seconds before alarming |
Network Protocol | TCP/IP,PPPOE ,DDNS and NTP |
Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
CMS software | YES |
Mobilephone View | YES |
Electronic zoom | YES |
VGA Interface | YES |
Log record function | YES |
Image Tour | YES |
IR Remote control | YES |
Video Loss Detection | YES |
Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
PTZ Control | YES |
USB Mouse | YES |
Power Source | 12V/2A |
Key Lock(Password Protection) | YES |
Power-down recovery function | YES |
Size(mm) | 260(L) x 44(H) x 221(W) |
How to use the cctv camera system:

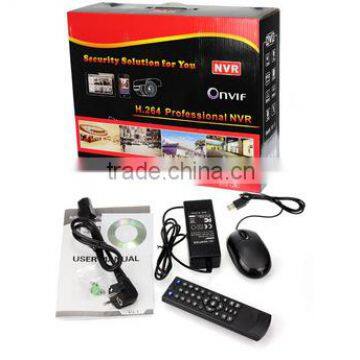

Package including:
2. 8PCS BE-ICD80M(1/3" CMOS 800TVL,Weatherproof IR CAMERA,36 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 30M)
3. 1PC TK06(12V/10A power Supply)
4. 1P BE-plug01 (Connect power adaptor and power)
5. 8PCS BE-VP20 (20M 2 in 1 (Power+Video) extension cable with BNC connector.)
6. 1PC BE-1IN8(1 in 8 cable for cameras)
CCTV Camera MOQ:
1. Sample order >=1pcs
2. Normal Order >=10pcs per model after sample test
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. The warranty time starts from the shipping date from our factory
Price Term:
FOB Shenzhen
Payment:
T/T, Paypal, Western Union, MoneyGram, L/C are all available
