BRAND BLR/AAS SUCTION LINE ACCUMULATORS SERIES
                            Negotiable
                                                            / Piece


                                                100 Pieces(Min. Order)

                    - NINGBO
 - T/T

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BLUE | |
| Model Number | BLR/A-AS 3 84 | Type | Other, Refrigeration Compressor, Distillation Equipment | |
| Application | Refrigeration Parts | Certification | Other, CE, CE |
Product Description
BRAND BLR/AAS SUCTION LINE ACCUMULATORS SERIES
GENERAL DEFINITION
- Suction line accumulators partially eliminate risk of returning cooling gas into compressor in liquid form.
 - "U" tube design is used to provide maximum cooler flow, and minimum oil trap.
 - It provides excessive cooling of gas in liquid line and quick evaporation of liquid drops coming to liquid trap.
 - The system comprises the following;Long-line systems,Conversion circuit systems,Heating pump and defrost applications. Recommended for liquid coolers.
 - Ensure correctness of In & Out signs on suction line accumulators.

Connection Parts
- We determined Input and Output connections according to volume of products.
 - ODS connection is used in standard products.
 - Different connection may be used upon request.
 - Please contact us for further details.
 - There is no Safety Valve connection in standard products.
 - Safety Valve connection can be provided upon request.
 - Please contact us for different Safety Valve connections.

NOTE
- Our firm manufactures products of any required diameter, length, and properties according to relevant standards.
 - Different colors may be used upon request in number of quantities.
 - Liquid receivers are manufactured in accordance with CE 97/23/EC directive.
 - Please contact us for further details.

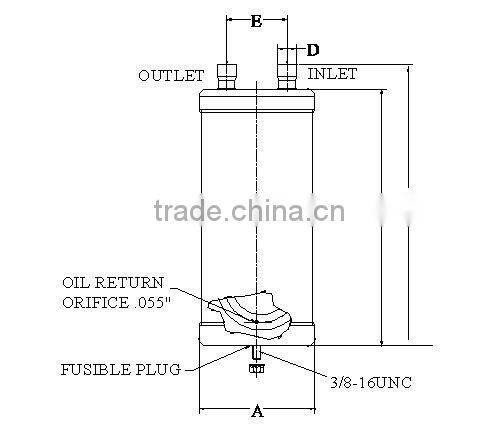

DRAWING&PICTURE

TECHNICAL DATA
MODEL  | Connection(Inch)  | B     DIAMETER (Inch)  | C HEIGHT (Inch)  | D FITTING DISTANCE (Inch)  | R-22 TONS   at +40°F  | 50%   FULL HOLDING CAPACITY (LBS.)                                | WT (LBS.)  | |
40°F LIQUID  R22/R134a  | 40°F LIQUID  R404A/R507  | |||||||
BLR/AAS- 384  | 0.5  | 3  | 8  | 1.63  | 2  | 1.5  | 1.5  | 2  |
BLR/AAS- 3105  | 0.625  |   | 10  | 1.63  | 3  | 2  | 2  | 2.4  |
BLR/AAS- 3125  | 0.625  | 3  | 12  | 1.63  | 3  | 3  | 2.5  | 2.9  |
BLR/AAS- 3126  | 0.75  | 3  | 12  | 1.63  | 4  | 3  | 2.5  | 2.9  |
BLR/AAS- 3145  | 0.625  | 3  | 15  | 1.63  | 3  | 3.5  | 3  | 3.3  |
BLR/AAS- 3146  | 0.75  | 3  | 14  | 1.63  | 4  | 3.5  | 2.75  | 3.3  |
BLR/AAS- 464  | 0.5  | 4  | 6  | 2.5  | 2  | 2.5  | 2  | 2.8  |
BLR/AAS- 465  | 0.625  | 4  | 6  | 2.5  | 3  | 2.5  | 2  | 2.8  |
BLR/AAS- 4105   | 0.625  | 4  | 10  | 2.5  | 3  | 4  | 3.5  | 4.6  |
BLR/AAS- 4106   | 0.75  | 4  | 10  | 2.5  | 4  | 4  | 3.5  | 4.6  |
BLR/AAS- 596  | 0.75  | 5  | 9  | 2.75  | 4  | 6  | 5.5  | 5.1  |
BLR/AAS- 597   | 0.875  | 5  | 9  | 2.75  | 7.3  | 6  | 5.5  | 5.1  |
BLR/AAS- 5126   | 0.75  | 5  | 12  | 2.75  | 4  | 8  | 7.5  | 6.6  |
BLR/AAS- 5127  | 0.875  | 5  | 12  | 2.75  | 7.3  | 8  | 7.5  | 6.6  |
BLR/AAS- 5137  | 0.875  | 5  | 13  | 2.75  | 7.3  | 8.5  | 8  | 7.1  |
BLR/AAS- 5139  |   1-1/8  | 5  | 13  | 2.75  | 11.8  | 8.5  | 8  | 7.1  |
BLR/AAS- 5179  |   1-1/8  | 5  | 17  | 2.75  | 11.8  | 12  | 10  | 8.4  |
BLR/AAS-51711  |   1-3/8  | 5  | 17  | 2.75  | 18.8  | 12  | 10  | 8.4  |
BLR/AAS- 6117  | 0.875  | 6  | 11  | 2.94  | 7.3  | 10  | 9  | 10  |
BLR/AAS- 6137  | 0.875  | 6  | 13  | 2.94  | 7.3  | 12  | 11  | 11.7  |
BLR/AAS- 6139  |   1-1/8  | 6  | 13  | 2.94  | 11.8  | 12  | 11  | 11.7  |
BLR/AAS-61411  |   1-3/8   | 6  | 14  | 2.94  | 18.8  | 15  | 12  | 12.1  |
BLR/AAS-61713  |   1-5/8  | 6  | 17  | 2.94  | 28.5  | 16  | 15  | 15.4  |
BLR/AAS-62013  |   1-5/8  | 6  | 20  | 2.94  | 28.5  | 20  | 16  | 18.1  |
BLR/AAS-62513  |   1-5/8  | 6  | 25  | 2.94  | 28.5  | 25  | 20  | 22.6  |
