BLR/STAS H48 Liquid Line Replaceable Core Filter Drier Shell

FOB Price

US$ 20 - 50 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Description

BLR/STAS cartridge sleeves are used to eliminate possible moisture, acid, and dirt within the system, and prevent malfunction due to these factors.
They are used in cooling units between evaporator,accumulator and evaporator, and liquid tank.
Detachable flange provided easy cleaning and check-up.
Ensure correct placement of gasket into recess before mounting flange connection.
Mount by tightening bolts at equal degree.
Flange system is independent from body, and deep drawn body is used.

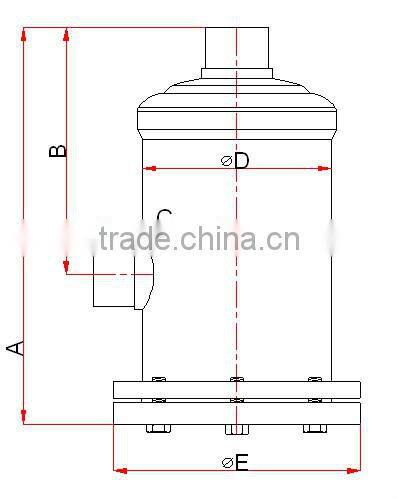

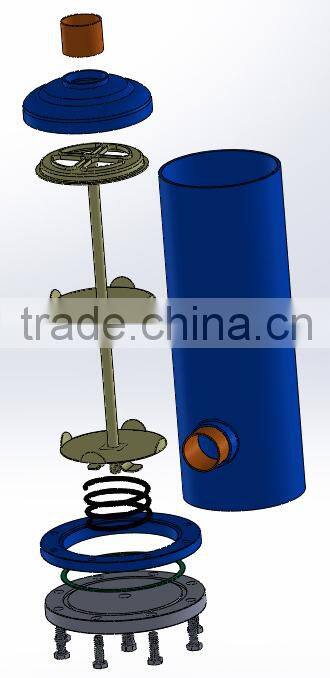

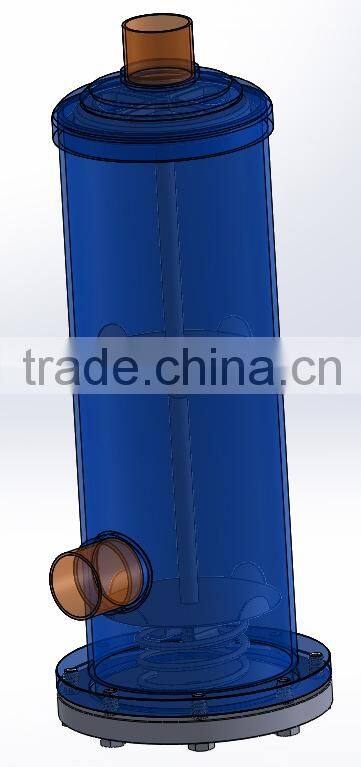

Drawing&Picture

Technical date

MODEL	CONNECTION	NUMBER OF 48 IN 3 CORE	DESICCANT VOLUME (Cu.In)	DIMENSIONS (In)
				DIMENSIONS (In)
				A	B	C	D
H48 Filter Drier Shells / Single
BLR/STAS-485T	5/8 ODF	1	48	9.47	6.00	3.78	0.63
BLR/STAS-487T	7/8ODF			9.69	6.25	3.75	0.78
BLR/STAS-489T	1 1/8 ODF			9.75	6.31	3.84	0.94
BLR/STAS-4811T	1 3/8 ODF			9.84	6.44	3.97	0.94
BLR/STAS-4813T	1 5/8 ODF			9.88	6.50	4.03	1.13
BLR/STAS-4811SV	1 3/8 ODF			9.84	6.44	3.97	0.94
BLR/STAS-4813S-V*	15/8 ODF			9.88	6.50	4.03	1.13
BLR/STAS-4817S-V*	2 1/8 ODF			10.06	6.56	4.56	1.34
BLR/STAS-4821S-V*	2 5/8 ODF			10.44	7.03	4.75	1.04
H48 Filter Drier Shells /Double
BLR/STAS-967T	7/8 ODF	2	96	15.19	11.72	3.75	0.78
BLR/STAS-969T	1 1/8 ODF			15.22	11.78	3.84	0.94
BLR/STAS-9611T	1 3/8 ODF			15.31	11.91	3.97	1.03
BLR/STAS-9613T	1 5/8 ODF			15.38	11.97	4.03	1.13
BLR/STAS-9617T	2 1/8 ODF			15.56	12.03	4.56	1.34
BLR/STAS-9617S-V*	2 1/8 ODF			15.56	12.03	4.56	1.34
BLR/STAS-9617S-V*	2 1/8 ODF			15.56	12.03	4.56	1.34
BLR/STAS-9621S-V*	2 5/8 ODF			15.94	12.50	4.75	1.50
BLR/STAS-9625S-V*	3 1/8 ODF			15.69	12.63	5.44	1.66
H48 Filter Drier Shells / Triple
BLR/STAS-1449T	1 1/8 ODF	3	144	21.25	17.38	3.84	0.94
BLR/STAS-14411T	1 3/8 ODF			21.34	17.53	3.97	1.03
BLR/STAS-14413T	1 5/8 ODF			21.38	17.59	4.03	1.13
BLR/STAS-14417T	2 1/8 ODF			21.56	17.63	4.56	1.34
H48 Filter Drier Shells / Quadruple
BLR/BLR/STAS-19211T	1 3/8 ODF	4	192	26.91	23.00	3.97	1.03
BLR/BLR/STAS-19213T	1 5/8 ODF			26.94	23.17	4.03	1.03
BLR/BLR/STAS-19217T	2 1/8 ODF			27.13	23.13	4.56	1.13
BLR/BLR/STAS-1927/5T	7/8 * 5/8			26.50	6.00	3.69	7/8*5/8

Working Pressure[PS]: 33 Bar

Test Pressure[PT]: 48 Bar

Allowable Temperature[TS]: Min. - 10°C / Max.-130°C

Color [RAL]: 5009

General Tolerans [mm]: ± 3

Details of the connection parts are given on page 60.
