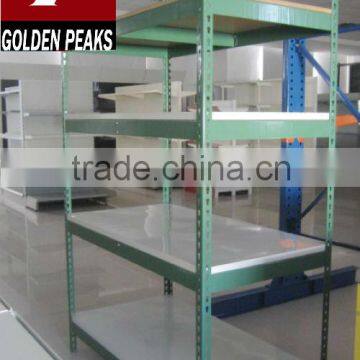

warehouse rack,storage rack
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | golden peaks | |
| Model Number | GP-wr10 | Type | Multi-Level | |
| Material | Steel | Feature | Other | |
| Use | Warehouse Rack | Certification | CE | |
| Depth | 0.8 of the panel | Weight Capacity | 500-600kg/level | |
| Width | 600MM | Height | 2000MM |
Product Description
Cantilever Racking(for dealers)
1. Frame
1.1 Light/Medium Duty
1.1.1 Upright section size 150/200mm
Note: Upright length should be multiple of pitch (50mm).
Specification type 150/200
Height mm | Max arm level | Clear space each level mm | H-bracing Qty | D-bracing Qty |
1500 | 3 | 380 | 2 | 1 |
1800 | 3 | 480 | 2 | 1 |
2000 | 4 | 380 | 2 | 1 |
2200 | 4 | 430 | 2 | 1 |
2500 | 4 | 505 | 2 | 1 |
2800 | 5 | 440 | 3 | 2 |
3000 | 5 | 480 | 3 | 2 |
1.1.2 Bracing Assembly
1.2 Heavy Duty
1.2.1 Upright section size 300mm
Note: Upright length should be multiple of pitch (140mm).
Specification type 300
Height mm | Max arm level | Clear space each level mm | H-bracing Qty | D-bracing Qty |
2588 | 3 | 670 | 4 | 1 |
3008 | 3 | 810 | 4 | 2 |
3568 | 4 | 720 | 4 | 2 |
3988 | 4 | 825 | 4 | 3 |
4548 | 4 | 965 | 6 | 3 |
4968 | 5 | 832 | 6 | 3 |
5528 | 5 | 944 | 6 | 4 |
1.2.2 Bracing Assembly
1.3 Upright Assembly(See below pictures)
Consisted by upright & base /bolts & nuts /spring washer /flat washer /square taper washers /anchor
Components quantity per frame:
upright & base
bolts & nuts /spring washer /flat washer /square taper washers
2. Frame Load Capacity Table( KG/Frame)
Light Duty Frame(150*60)
Medium Duty Frame(200*60)
Note: In above table, from left to right is Frame Height, Arm Length, Single Side Loading, Double Side Loading, etc.
