Roll Up Electirc Door Shutters

Place of Origin	Guangdong, China		Brand Name	ALUROLL
Model Number	RS-62		Open Style	Rolling
Position	Industrial		Surface Finishing	Finished
Type	Cellar Doors		Door Material	Aluminum Alloy

Specifications

Sound insulation, All-weather, UV Stablized
Pre-coated Aluminum
100% PU
Application: Interior & exterior
3 control system

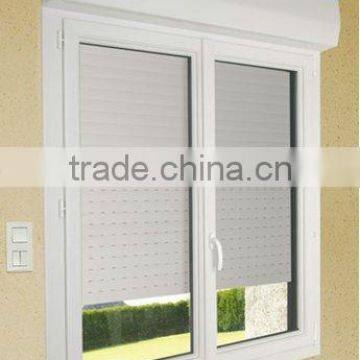

Aluminum  Slats Roller Shutter for Doors & Windows



About the product



A. Roller shutter



   1) Dimension: can be customized;

   2) System option: tubular motor driving system, manual strap control system, crank control system

   3) Slats option: 45, 55mm.

   4) Maximun width: 2500~3200mm.

   5) Maximun height: 3000~3900mm.

   6) Maximun coverage: 7~10m²

   7) Material: aluminum alloy.

   8) Control:  remote, switch, strap, crank

   9) Motor: 6 ~ 50 Nm (tubular motor)

   10) Comon color: white, silver, apricot, brown



B. Slats



Cover	Max Width	Max Height	Max Area	Weight/m	Weight/m2	Quantity/m	Length
45 mm	2500 mm	3000 mm	7m2	0.115 kg	2.55	22.2 pcs	5.8
55 mm	3200 mm	3900 mm	10m2	0.15 kg	2.7	18 pcs	5.8



C. Package



Item	Packing
Roller shutters	Wooden case
Slats	Bubble protective film
Other components	Standard export package





About Us



*Experience: Our annual output is 700,000 m²

*Machines:  We have introduced the roll forming machines from Dallan, one of the distinguish machine producers in Italy.

*R&D:  Our engineers, one of the most professional R&D team of China, satisfied clients  to have all kinds of colors, tailer-made roller shutter solutions before deadlines.

*QC:  We apply AQL (Acceptable Quality Level) into all stages, ranging from IQC (Incoming QC), IPQC (In-Process QC), FQC (Final QC) and OQC (Outgoing QC).

*Certificate: We manufacture all products according to ISO2001:2000 , TUV quality control guidelines.
