Home > Products > Toggle Switch > CNTD Factory Price 15A 250VAC 3-way ON-OFF-ON Momentary Toggle Switch With CE (C5R13B) Quality Choice
CNTD Factory Price 15A 250VAC 3-way ON-OFF-ON Momentary Toggle Switch With CE (C5R13B) Quality Choice
- Ningbo/Shanghai Port China
- T/T Money Gram Credit Card PayPal
You May Like
-
CNTD Yueqing Manufacturer Showerproof Mini Switch Toggle ON-ON DPDT 15A 125VAC C522B
-
CNTD CE Approved 6ways SPDT ON-ON Waterproof Mini Toggle Switch 3A 250VAC C512B
-
China CNTD 12V 4 Position OFF ON ON Toggle Switches C511B
-
China CNTD Professional Manufacturer 15A 250VAC Types of Toggle Switches With Screw Terminal C513B Quality Choice
-
China CNTD 2 Position 12mm Mounting Hole 15A 250V Spring Return Waterproof ON-ON Toggle Switch SPDT C5R12B
-
CNTD Hot Double Pole On OFF Table Lamp Mini Waterproof 4-Way Toggle Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNTD | |
| Model Number | CR513B | Max. Current | 15A | |
| Max. Voltage | 250VAC | Mechanical Life | 5000,000 times/min |
Product Description

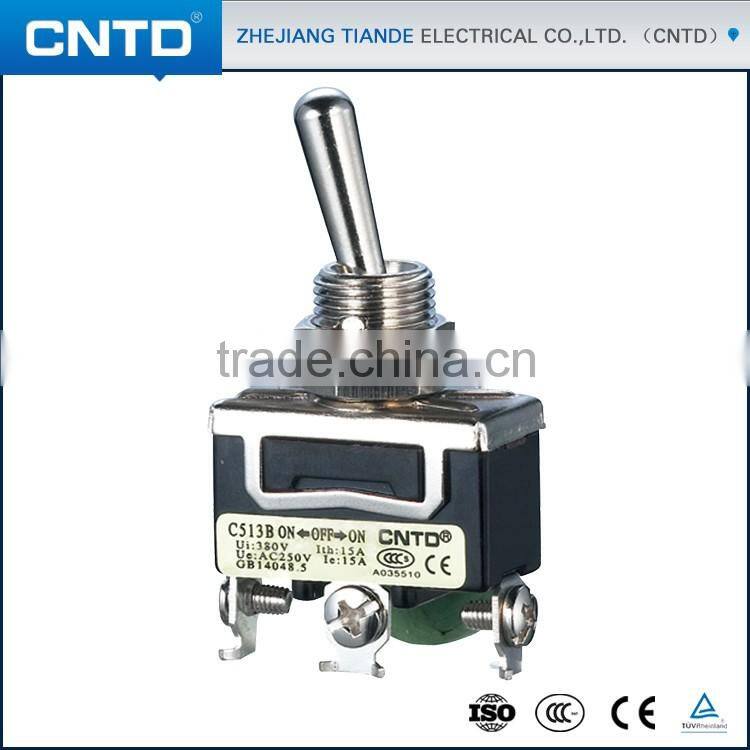

CNTD Factory Price 15A 250VAC 3-way ON-OFF-ON Momentary Toggle Switch with CE (C5R13B)
Features
- Current: 10A and 15A
- Movement way: Fixed type and spring return type
- Terminal block: screw terminal, solder terminal and tab terminal
- Rainproof, waterproof and oilproof cap
- Mounting hole: 12mm
Product Characteristics
| Model No. | C5R13B |
| Name | Toggle switch |
| Type | 15A 250VAC Spring return type |
| Contact | Single pole double throw ON-OFF-ON |
| Terminal | Tab terminal, screw teminal and solder terminal |
| Life | Mechanical:5000,000times/min; Electrical:1000,000times/min |
Insulation resistance | 100mΩ min.(at 500VDC) |
| Dielectric strength | 2000VAC,50/60HZ for 1 minute |
| Vibration | 10-55HZ,1.5mm double amplitude |
| Weight | About 22 to 58g |
| Degree of protection | IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV, CCC,CE,ISO9001 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |

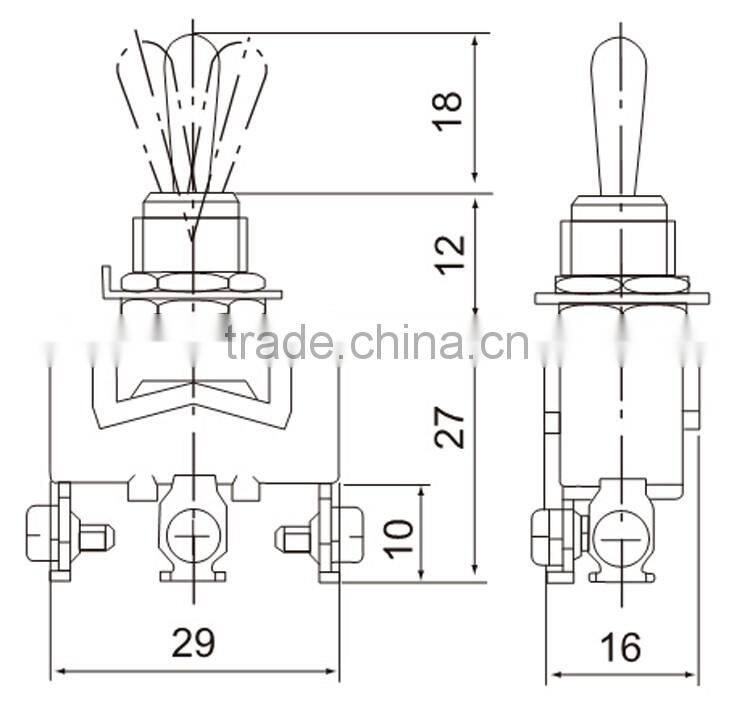

Dimension and Appearance
You are here:Home>> Toggle switch >> C5 Series
Related Products
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
- Payment terms: 30% deposit in advance, 70% before shipment, 100% T/T in advance
- Lead time:7-10 working days after payment received
- Shipping Ways: Express, Air shipment and Sea shipment as per customers' request



1. Q: Could i put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided for free.
7. Q: How long to make a sample?
A: Fast delivery If we have stock.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
