CNTD Yueqing Manufacturer Flush Mounting 15A 125VAC Mini Toggle Switch ON-ON DPDT C522A
- Ningbo/Shanghai Port China
- T/T Money Gram Credit Card PayPal
You May Like
-
China CNTD DPDT ON-OFF-ON 8Pin Spring Return Toggle Switch 220V (C5R23B) Supplier's Choice
-
CNTD Hot Sale ON-OFF-ON 4pin Spring Loaded Toggle Switch SPDT (C513A) Quality Choice
-
China CNTD Factory Supply 12mm Mounting Hole Spring Return ON-OFF 4-way Toggle Switch 220V DPST (C5R21B)
-
CNTD Factory Price 15A 250VAC 3-way ON-OFF-ON Momentary Toggle Switch With CE (C5R13B) Quality Choice
-
CNTD Yueqing Manufacturer Showerproof Mini Switch Toggle ON-ON DPDT 15A 125VAC C522B
-
CNTD CE Approved 6ways SPDT ON-ON Waterproof Mini Toggle Switch 3A 250VAC C512B
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNTD | |
| Model Number | C522A | Max. Current | 15A | |
| Max. Voltage | 250VAC | Mechanical Life | 5000,000 times/min |
Product Description

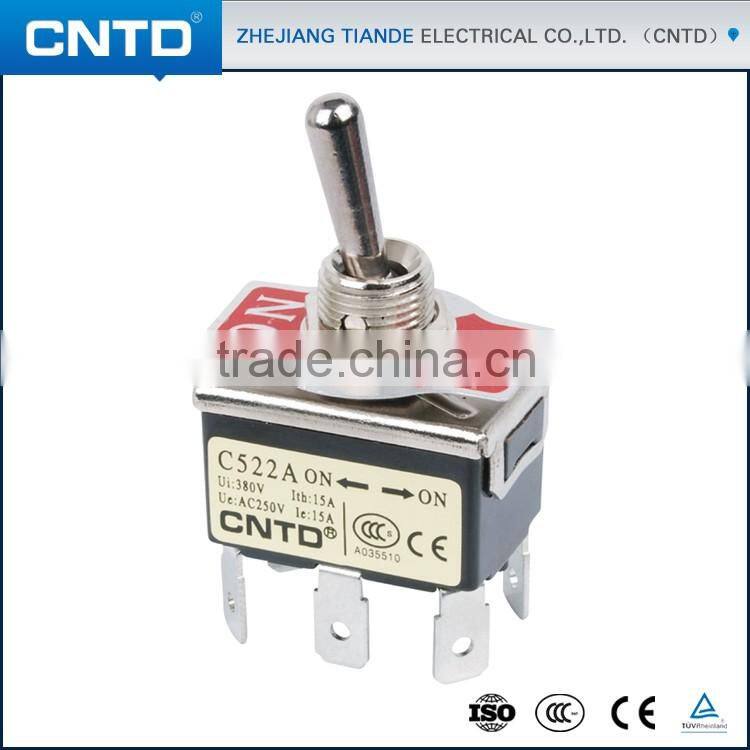

CNTD Yueqing Manufacturer Flush mounting 15A 125VAC Mini Toggle Switch ON-ON DPDT C522A
Features
- Current: 10A and 15A
- Movement way: Fixed type and spring return type
- Terminal block: screw terminal, solder terminal and tab terminal
- Rainproof, waterproof and oilproof cap
- Mounting hole: 12mm
Product Characteristics
| Model No. | C522A |
| Name | Toggle switch |
| Type | 15A 250VAC Fixed type |
| Contact | Double pole double throw ON-ON |
| Terminal | Tab terminal, screw teminal and solder terminal |
| Life | Mechanical:5000,000times/min; Electrical:1000,000times/min |
Insulation resistance | 100mΩ min.(at 500VDC) |
| Dielectric strength | 2000VAC,50/60HZ for 1 minute |
| Vibration | 10-55HZ,1.5mm double amplitude |
| Weight | About 22 to 58g |
| Degree of protection | IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV, CCC,CE,ISO9001 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |

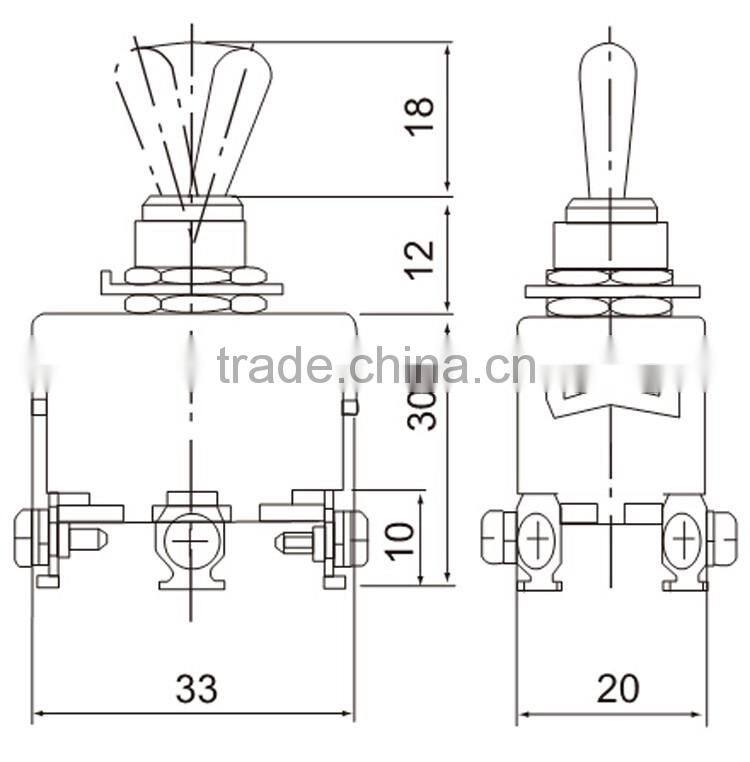

Dimension and Appearance
