Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNTD | |
| Model Number | C2PNR6 | Protection Level | IP65/IP40 | |
| Max. Current | 10A | Max. Voltage | 380V |
Product Description

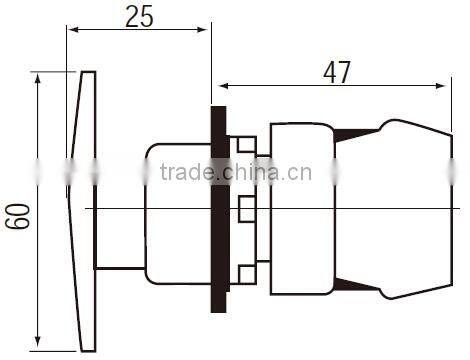

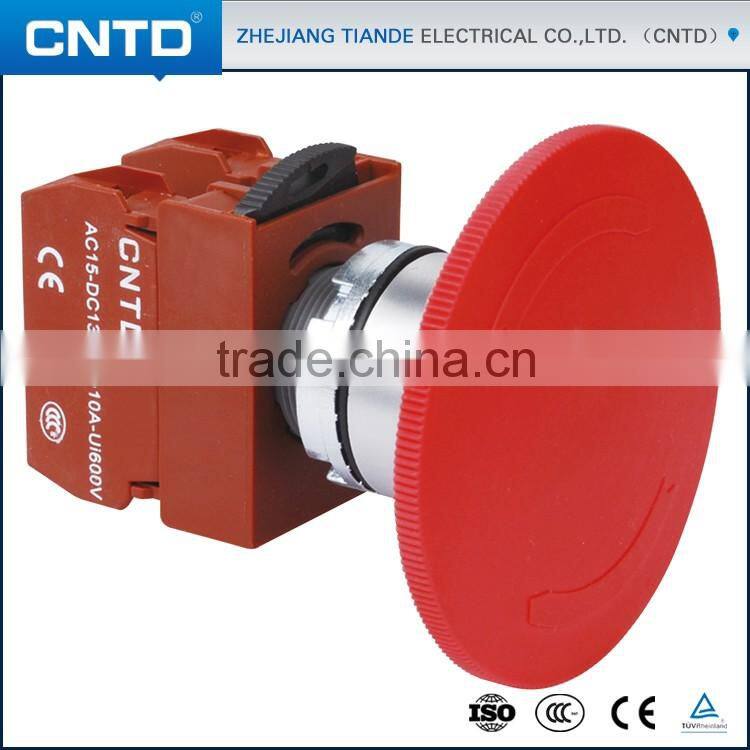

CNTD Waterproof Emergency Stop Red Wireless Push Button Switch 60mm

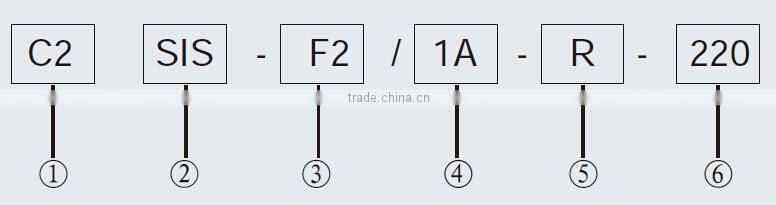

Model Designations
- Fixed hole diameter: C2=22φRound,C3=30φRound
- Types:flat head,short handle knob,long handle knob,key knob,convex head,emergency stop head, Long handle with lamp knob, standard type indicating lamp and so on.
- Operation type:Pushbutton Switch: Blank=Self-resetting,D=Self-locking Knob Switch,Monolever Switch: F2=2 to the self-locking,F3=3 to the self-locking, F4=4 to the self-locking,T2=2 to reset,T3=3 to reset,T4=4 to reset

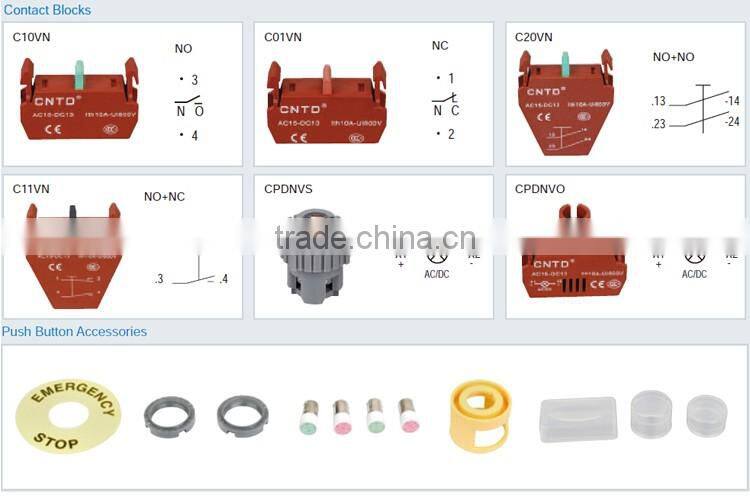

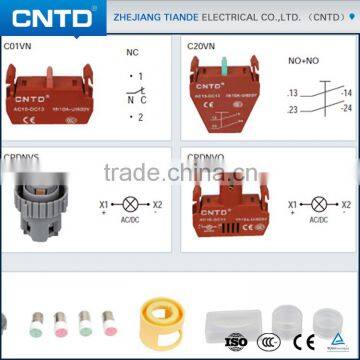

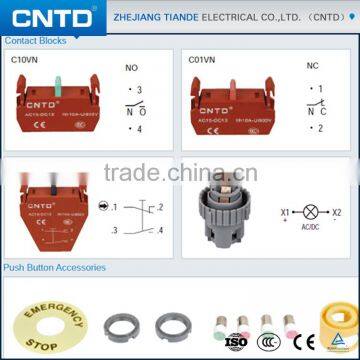

- Contact:1A=1NO,1B=1NC,1C=1A1B,1D=1A+1B,2A=2NO,2B=2NC,2C=1A1B+1A1B
- Head color: R=red,G=green,Y=yellow,W=white,B=black,BL=blue
- With lamp voltage:12=12VDC,24=24VDC,36=36VDC,48=48VDC 110=110VAC,220=220VAC, 380=380VAC
You are here:Home>> Pushbutton Switch >>Waterproof Push Button Switch
Product characteristics
| Model No. | C2PNR6 |
| Name | Push Button Switch |
| Electrical capacitor | Max insulation voltage600VAC, Max thermal current10A |
| Operation | AC15 Type:250VAC/6A, DC13 Type:250VDC/0.6A |
| Contact resistance | Max 50MΩ |
| Insulation strength | 2500VAC 50Hz,1 minute |
Insulation resistance | 500VDC below,100MΩ above |
Mechanical life | Pushbutton switch: momentary>3,000,000 lasting>5,000,000 |
Selector switch: momentary>3,000,000 lasting>5,000,000 | |
| Key switch: momentary>3,000,000 lasting>5,000,000 | |
| Emergency switch: >3,000,000 | |
Vibration resistance | 10g @40-500Hz |
| Life | Lamp 1,000 hour LED 1,000 hour |
| Electrical life | Contact block AC15 250VAC/6A >1,000,000 DC13 250VAC/0.6A >1,000,000 |
| Degree of protection | IP65/IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CE/CCC/EN60947-5-1 approved standard |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
