Ball Joint Rod End Bearing PHSA10 PHSA16 PHSA20 PHSA22
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | UMT | Bore Size | 10, 30 | |
| Model Number | UC5 | Place of Origin | China | |
| Precision Rating | P0-P6 |
Product Description
ROD END BEARING DETAILS

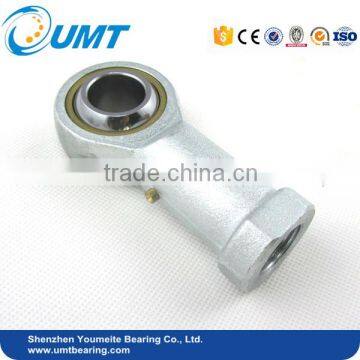

Rod end of steel and zinc coated, with female thread, Sliding surface with bronze linear;Inner ring of carbon chromium steel, spherical surface with chromium plating; Can be lubricatedvia a nipple or a hole in the rod end. It has characteristics of large load capability, easy mountingand dismounting and mechanism simplification.
PHSA16 ROD END BEARING DESCRITION
| Strusture | rod end bearing |
| Type | rod end bearing |
| Bore size | 16mm |
| Outside Diameter | 42mm |
| Breadth | 21mm |
| Weight | kg |
| Model number | PHSA16 |
| Precision | P0-P6 |
| Seals type | Not |
| Clearance | C0,C2,C3,C4,C5 |
| Vabration | Z1,Z2,Z3,Z4 |
| Number row | single row |
| Application | chemical, semi-conductor,valve&pump,food,electonic |
NON-STANDARD BALL BEARING SIZE:
| type | Dimensions(mm) | a | weight (g ) | old designation | |||||||||||
| d | d3 | d2 | d5 | S | B | L5 | C1 | h1 | L3 | d4 | L4 | ||||
| PHSA5 | 5 | M5x0.8 | 18 | 12.5 | 10 | 8 | 4 | 6 | 27 | 10 | 9 | 36 | 13 | 25 | SI5T/K |
| PHSA6 | 6 | M6x1 | 20 | 13 | 11 | 9 | 5 | 6.75 | 30 | 12 | 10 | 45 | 13 | 27 | SI6T/K |
| pHSA8 | 8 | M8x1.25 | 24 | 16 | 14 | 12 | 5 | 9 | 36 | 16 | 12.5 | 48 | 13 | 46 | SI8T/K |
| PHSA10 | 10 | M10x1.5 | 28 | 19 | 17 | 14 | 6.5 | 10.5 | 43 | 20 | 15 | 57 | 13 | 76 | SI10T/K |
| PHSA12 | 12 | M12x1.75 | 32 | 22 | 19 | 16 | 6.5 | 12 | 50 | 22 | 17.5 | 66 | 13 | 115 | SI12T/K |
| PHSA14 | 14 | M14x2 | 36 | 25 | 55 | 19 | 8 | 13.5 | 57 | 25 | 20 | 75 | 13 | 170 | SI14T/K |
| PHSA16 | 16 | M16x2 | 42 | 27 | 25 | 21 | 8 | 15 | 64 | 28 | 22 | 84 | 13 | 230 | SI16T/K |
| PHSA18 | 18 | M18x1.5 | 46 | 31 | 27 | 23 | 10 | 16.5 | 71 | 32 | 25 | 94 | 13 | 320 | SI18T/K |
| PHSA20 | 20 | M20x1.5 | 50 | 34 | 30 | 25 | 10 | 18 | 77 | 33 | 27.5 | 102 | 13 | 420 | SI20T/K |
| PHSA22 | 22 | M22x1.5 | 54 | 37 | 32 | 28 | 12 | 20 | 84 | 37 | 30 | 111 | 13 | 540 | SI22T/K |
| PHSA25 | 25 | M24x2 | 60 | 42 | 30 | 31 | 12 | 22 | 94 | 42 | 33.5 | 124 | 13 | 750 | SI25T/K |
| PHSA28 | 28 | M27x2 | 66 | 46 | 41 | 35 | 14 | 24 | 103 | 41 | 37 | 136 | 13 | 820 | SI28T/K |
| PHSA30 | 30 | M30x2 | 70 | 50 | 41 | 37 | 15 | 25 | 110 | 51 | 40 | 145 | 13 | 1300 | SI30T/K |
| type | Dimensions(mm) | a | weight (g ) | old designation | |||||||
| d | d3 | d2 | B | C1 | h | L1 | L2 | ||||
| POSA5 | 5 | M5x0.8 | 18 | 8 | 6 | 33 | 19 | 42 | 13 | 20 | SA5T/K |
| POSA6 | 6 | M6x1 | 20 | 9 | 6.75 | 36 | 22 | 46 | 13 | 21 | SA6T/K |
| POSA8 | 8 | M8x1.25 | 24 | 12 | 9 | 42 | 25 | 54 | 13 | 34 | SA8T/K |
| POSA10 | 10 | M10x1.5 | 28 | 14 | 10.5 | 48 | 29 | 62 | 13 | 58 | SA10T/K |
| POSA12 | 12 | M12x1.75 | 32 | 16 | 12 | 54 | 33 | 70 | 13 | 92 | SA12T/K |
| POSA14 | 14 | M14x2 | 36 | 19 | 13.5 | 60 | 26 | 77 | 13 | 153 | SA14T/K |
| POSA16 | 16 | M16x2 | 42 | 21 | 15 | 66 | 40 | 86 | 13 | 205 | SA16T/K |
| POSA18 | 18 | M18x1.5 | 46 | 23 | 16.5 | 72 | 44 | 95 | 13 | 280 | SA18T/K |
| POSA20 | 20 | M20x1.5 | 50 | 25 | 18 | 78 | 47 | 103 | 13 | 370 | SA20T/K |
| POSA22 | 22 | M22x1.5 | 54 | 28 | 20 | 84 | 51 | 111 | 13 | 475 | SA22T/K |
| POSA25 | 25 | M24x2 | 60 | 31 | 22 | 94 | 57 | 124 | 13 | 650 | SA25T/K |
| POSA28 | 28 | M27x2 | 66 | 35 | 24 | 103 | 62 | 136 | 13 | 800 | SA28T/K |
| POSA30 | 30 | M30x2 | 70 | 37 | 25 | 110 | 66 | 145 | 13 | 1070 | SA30T/K |
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.
Our plant shandong UMT has been working in the filed of bearing design and
manufacturing for more than 10years now is taking a leading position in mainland china.
Our plant has more than 500 employees , including 30 bearing professional techincians;
more than 600 new bearing items can be completed each year.
we can produce all kinds of bearing as customer's requirement.
PERSONAL BASIC INFORMATIOM
ROD END BEARING PICTURE
If this product is not what you want,that's nothing.
Click on the image below to see more products.You must have your favorite.
MAKING A BEARING PROCESS
DIFFERENT TYPE OF BRAND
OUR CERTIFICATE
Q : Why choose us ?
a.With background of about 10 years
b.Strict Inspection ,and the best quality price with reasonable price bearings provided .
c.OEM service provided.
d. Delivery products from our factory warehouse , delivery time is short .
e. After sale service at any time .
Q: What kind of bearing you producted ?
main products are deep groove ball bearing , spherical roller bearings , tapered roller bearing ,thrust ball bearing ,others could be special made for you .
Q:What brand you could provided ?
A: our brand is HQBF , we also offer OEM service .
Q:Your product certifications ?
A: ISO 9001:2008 , ISO 9001:2000
Q: Delivery Time ?
A: 7-15 days ,also base on your order quantity
Q: Payment Terms ?
A: Usually we accept T/T ,and also accept L/C ,western union ,and order online
Q: Loading Port ?
A: Shenzhen China , as your appointed .
