CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701)
- Ningbo/Shanghai Port China
- T/T Credit Card PayPal
You May Like
-
CNTD Factory Supply Insulation Bakelite Shell 1NO1NC Push Button Micro Switch (CM-1306) Quality Choice
-
High Demand Export Products UL VDE ROHS Approved Mini Micro Switch T125 5e4
-
CNTD Factory Supply CM Series High Accuracy 1NO1NC Screw Terminal Micro Switch (CM-1300)
-
CNTD China 10A/250VAC Button Type Miniature Micro Switch IP67 (CMV-100C) Quality Choice
-
Yueqing Well-know Brand CNTD 10A 250V 5e4 Mini Electric Switch (CMV-106C)
-
CNTD Innovation 2016 Waterproof Micro Switch IP40 250VAC 10A 250VDC 0.25A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNTD | |
| Model Number | CM-1701 | Max. Current | 15A | |
| Max. Voltage | 250V | Operating Temperature | -10~+80C | |
| Protection Level | IP65 |
Product Description
CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701)
Features
- Various of actuators, action position is adjustable (such as CM1701)
- High switch on and off capacity(15A)
- High accuracy
- Wide range of operation speed
- Each type of CM series has solder terminal, screw terminal and tab terminal are selective
- Add A for solder terminal, add C for tab terminal, blank for screw terminal
Technical Data
Operation speed | 0.01mm-1m/sec |
Operating frequency | Mechanical: 240 operations/min. |
Electrical: 20 operations/min. | |
Contact resistance | 15mΩ max. (initial value) |
Insulation resistance | 100mΩ min. (at 500VDC) |
Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts | |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
Vibration frequency | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
Ambient temperature | General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃ |
Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
Life | Mechanical: 20,000,000 operations min. Electrical: 500,000 operations min. |
Weight | About 22g to 58g |
Degree of protection | IP65 |

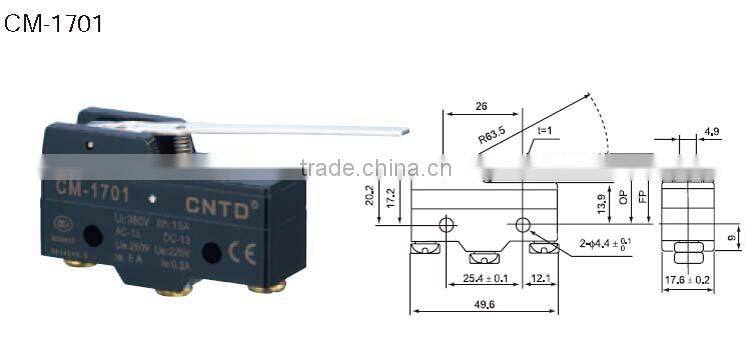

Appearance and Dimension
Operating characteristics
Models | CM1300 | CM1301 | CM1303 | CM1305 |
OF Max. | 350g | 300g | 300g | 350g |
RF Min. | 114g | 50g | 50g | 114g |
PT Max. | 0.4mm | 4mm | 4mm | 0.4mm |
OT Min. | 0.13mm | 1.6mm | 1.6mm | 1.6mm |
MD Max. | 0.05mm | 1.3mm | 1.3mm | 0.05mm |
FP Max. |
| 20.6mm | 31.8mm |
|
OP(mm) | 15.9 ±0.4 mm | 17.4 ±0.8 mm | 28.6 ±0.8 mm | 28.2 ±0.5 mm |
Models | CM1306 | CM1307 | CM1308 | CM1309 | CM1701 |
OF Max. | 350g | 350g | 350g | 350g | 70g |
RF Min. | 114g | 114g | 114g | 114g | 14g |
PT Max. | 0.4mm | 0.4mm | 0.4mm | 0.4mm | 10mm |
OT Min. | 1.6mm | 5.5mm | 3.58mm | 3.58mm | 5.6mm |
MD Max. | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 1.27mm |
FP Max. |
|
|
|
| 28.2mm |
OP(mm) | 21.5 ±0.5 mm | 21.50. ±8 mm | 33.4±1.2 mm | 33.4±1.2 mm | 19 ±0.8 mm |
Models | CM1702 | CM1703 | CM1704 | CM1705 | CM1743 |
OF Max. | 160g | 100g | 160g | 10g | 160g |
RF Min. | 28g | 22g | 42g | 3g | 42g |
PT Max. | 5mm | 7.1mm | 2.7mm | 20mm | 2.7mm |
OT Min. | 2mm | 4mm | 2.4mm | 5.6mm | 2.4mm |
MD Max. | 1mm | 1.02mm | 0.5mm | 3mm | 0.5mm |
FP Max. | 24.8mm | 36.5mm | 32.5mm |
| 43.6mm |
OP(mm) | 19 ±0.4 mm | 30.2 ±0.8 mm | 30.2 ±0.4 mm | 19±0.4 mm | 43.1 ±0.8 mm |
