Product Details
Place of Origin | Zhejiang, China | Brand Name | CNTD | |
Model Number | CWLD1 | Protection Level | IP66 | |
Operating Temperature | -5~+80C (with no icing) | Max. Current | 10A | |
Max. Voltage | 250V |
Product Description

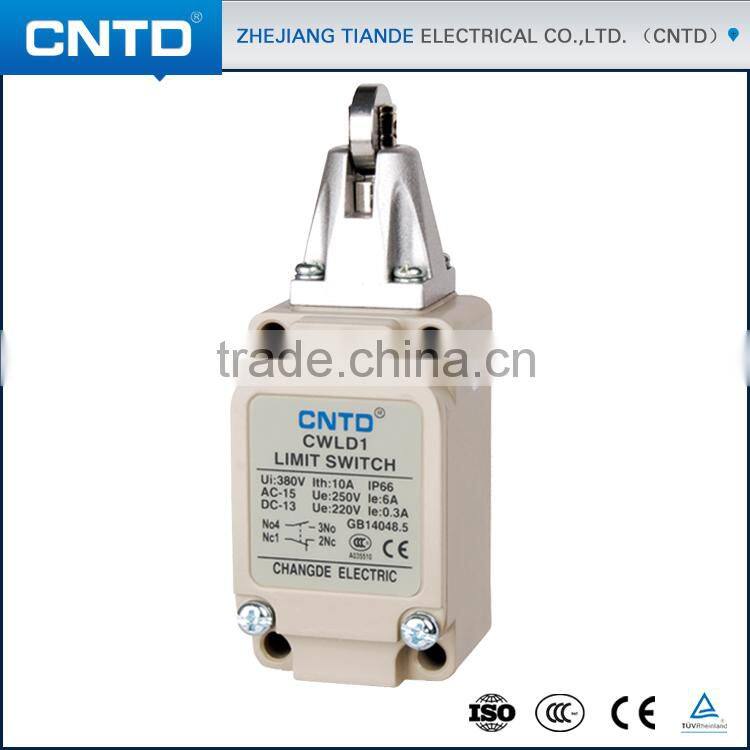

CNTD Quality Quarantee Low Price Cross Roller Plunger Actuator Momentary Limit Switch CWLD1
Features
Double-circuit type of limit switch, widely used
With strong aluminum cast outer shell
High mechanical strength
Water-proof, oil-proof construction
Structure preventing oil, water and pressure
Indicating plate with setting position is installed in it, so it is easy to maintain
Various of actuators for option, easy to use
Built-in contact stand has double-spring, so it has long mechanical life
Selective M20 x 1.5 cable gland
Rating
Rated Voltage | Noninductive Load (A) | Inductive Load (A) | ||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
NC | NO | NC | NO | NC | NO | NC | NO | |
125VAC 250VAC 480VAC 600VAC | 10 5 3 1 | 3 2 1.5 1 | 1.5 1 0.8 0.5 | 10 5 3 1.5 | 5 3 1.5 1 | 2.0 1.0 0.8 0.5 | ||
8VDC 14VDC 30VDC 125VDC 250VDC | 10 10 6 0.8 0.4 | 6 6 4 0.2 0.1 | 3 3 3 0.2 0.1 | 10 10 6 0.8 0.4 | 6 6 4 0.2 0.1 |
NOTES:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has
an inrush current of 6 times the steady-state current.
Characteristics
Operation speed | 1mm-2m/sec |
Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
Contact resistance | 25mΩ max. (initial value) |
Insulation resistance | 100mΩ min. (at 500VDC) |
Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts | |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
Vibration | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
Ambient temperature | -10℃ to +80℃ |
Humidity | <95% RH |
Life | Mechanical: 15,000,000 operations above (under rated OT) Electrical: 500,000 operations above |
Weight | About 275g |
Degree of protection | IP67 |
Operating Characterisitics
Models | CWLCA2-2 | CWLD2 | CWLNJ | CWLNJ-S2 | CWLCA12-2-Q | CWLCL | CWLCA32-41 | CWLD | CWLNJ-2 | CWLNJ-30 | CWLD1 | CWLD3 |
OF Max. | 1360g | 2720g | 150g | 29g | 1360g | 142g | 1200g | 2720g | 120g | 80g | 2720g | 2720g |
RF Min. | 227g | 910g | - | - | 227g | 28g | - | 910g | - | - | 910g | 910g |
PT Max. | 20 º | 1.7mm | 28mm | 28mm | 20 º | 20 º | 55 º | 1.7mm | 28mm | 28mm | 1.7mm | 1.7mm |
OT Min. | 30 º | 5.6mm | - | - | 30 º | 30 º | 35 º | 6.4mm | - | - | 5.6mm | 5.6mm |
MD Max. | 12 º | 1mm | - | - | 12 º | 12 º | - | 1mm | - | - | 1mm | 1mm |
TF Max. | 2720g | - | - | - | 2720g | 200g | - | - | - | - | 2720g | 2720g |
TT Min. | 50 º | 6.5±0.8mm | - | - | 50 º | 50 º | OP:90±10 º | OP:34±2.8mm | - | - | 6.5±0.8mm | 9±0.8mm |

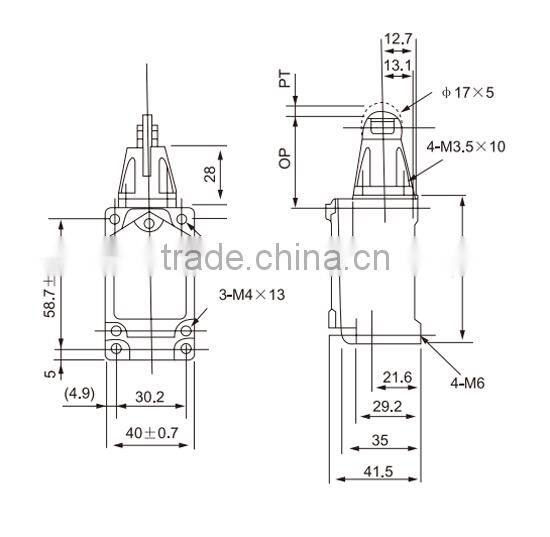

Appearance and Dimension
Model
CWLCA2-2 | TZ-5104(WLCA2-2) |
CWLCA12-2-Q | TZ-5108(WLCA12-2-Q) |
CWLCA32-41 | TZ-5105(WLCA32-41) |
CWLCL | TZ-5107(WLCL) |
CWLD | TZ-5101(WLD) |
CWLD1 | TZ-5103(WLD1) |
CWLD2 | TZ-5102(WLD2) |
CWLD3 | TZ-5109(WLD3) |
CWLNJ | TZ-5106(WLNJ) |
CWLNJ-30 | TZ-5168(WLNJ-30) |
CWLNJ-2 | TZ-5166(WLNJ-2) |
CWLNJ-S2 | TZ-5169(WLNJ-S2) |
