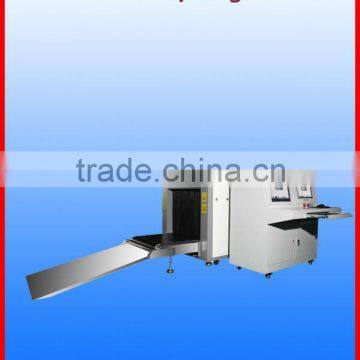

X-ray security machine

Specifications

FEATURE

1. Alarm by sounds + light  Alarm by sounds and light when conform to condition.
2. Network interface  Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray  Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control  Turn off the machine only need one step  revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye  Could be expediently observing enlargement area.
6. Estimate malfunction by self  Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA

Tunnel Size                    1000(W)×800(H)mm

Conveyor Speed                0.22 m/s

Conveyor Max Load             230 kg

Single inspection dosage           < 1.5µGy

Wire Resolution                 0.101mm metal line

SPATIAL RESOLUTION   LEVEL  1.3 MM DIAMETER       VERTICAL    1.0 MM DIAMETER

PENETRATE RESOLUTION     0.511 MM DIAMETER

Steel Penetration                34MM armor plate

Film Safety                    For ISO 1600

Maximum leakage radiation        <0.1µGY/H

X-RAY GENERATOR

Orientation                       Vertically Upward

Tube Current                      0.4~1.2MA(adjustable)

Anode Voltage                     100~160 KV(adjustable)

Angle                            60°

Generator cooling/working periods       Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM

X-RAY SENSOR                 L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR                      HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY               24 BIT REAL COLORS

EDGE ENHANCEMENT          OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT  IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY   INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY              INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER                              FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING                     INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE             DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

IMAGE RESTORATION              RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

IMAGE STORING                   REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

MULTI-ENERGY FUNCTION

MULTI-ENERGY COLOR   DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN

HIGH ENERGY/LOW ENERCY       SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC

AUXILIAY FUNCTION FOR DRUGS + EXPLOSIVES   HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.

AUDIBLE + VISIBLE ALARM  GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

OPERATING ENVIRONMENT

Storage Temperature            -20ºC to 60ºC

Operating Temperature          0ºC to 45ºC

Relative Humidity               20 to 95% non-condensing

System Power                  220 VAC (±10%) 50±3HZ

Power wastage                1.0 KW (Max)

Noise                        <65DB
