6zone walk through metal detector gate(XST-LCD)

Specifications

6zone walk through metal detector gate(XST-LCD)

Archway detector, metal detector, walk through metal detector,metal detector gate, door frame metal detector

Features

1.  Easy to operate with the big LCD screen, Chinese & English operate language . Infrared remoter controller adopted
2. Made of high quality alloy and PVC synthetic material, Watertightness and fireproofing.

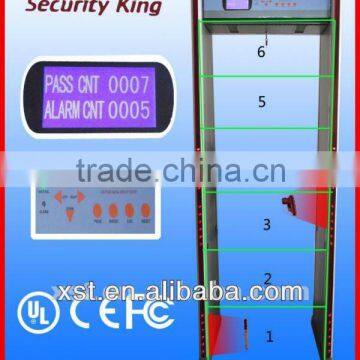

3. Six detecting zones which overlapped each other are as tall as examinee, combine with alarm-LED on every zone. Show the position of target metal directly.
4. Four emitters match with receivers opposite, eliminate detecting blind spots.
5. Sensitivities can be adjusted: Each zone’s sensitivity can be adjusted from 1 to 100. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.
6. The function of statistics: The number of passed examinees and the alarm times can be count.
7. Parallel operation: The gate can not only work itself, but also work together with the same model (when parallel operate, the distance between each unit must more than 40 cm), so that it can meet the demand of big visitor flow rate.
8. Harmless to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes, etc.
9. Installed conveniently: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
10. Protected by password: Only the authorized person can operate it.
11. Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.

Technical Parameters

Standard  Configuration

 Instruction book(Including one Certificate of Quality & Guarantee Repair List)

Application

Airports
Correctional Facilities
Public Buildings
Private Buildings
Schools
Special Events
Loss Prevention
Nuclear Facilities
Transportation Terminals
Courthouses
Corporate Security
Historical Landmarks

Accessories Purchased

Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.

Storage Battery: Maintain the gate working for about 4 hours after charged.

Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector

PS: Coin Standard: The gate can detect one coin with out inference.
