Airport Subway Door Frame Metal Detector, Body Scanner Metal Detector For Security Check

Airport Subway Door Frame Metal Detector, Body Scanner Metal Detector For Security Check

Features:

1. Made of high quality alloy and PVC synthetic material, Watertightness and fireproofing.

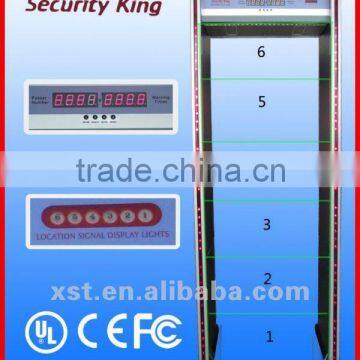

2. Six detecting zones which overlapped each other are as tall as examinee, combine with alarm-LED on every zone. Show the position of target metal directly.
3. Four emitters match with receivers opposite, eliminate detecting blind spots.
4. Sensitivities can be adjusted: Each zone’s sensitivity can be adjusted from 1 to 100. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.
5. The function of statistics: The number of passed examinees and the alarm times can be counted.
6. Parallel operation: The gate can not only work itself, but also work together with the same model (when parallel operated, the  distance between each unite must be more than 40 cm), so that it can meet the demand of big visitor flow rate.
7. No harm to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes, etc.
8. Installed conveniently: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
9. Protected by password: Only the authorized person can operate it.
10. Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.

Technical Parameters:

Power Supply: 110-220V/AC

Power: <30w

External Dimension:  2200mm(H)*820mm(W)*550mm(D)

Passageway Dimension: 2000mm(H)*700mm(W)*550mm(D)

Work environment:  -20°C- +45°C

Standard: GB15210-2003<WALK THROUGH METAL DETECTOR>

Standard

One Main Case              One Left Probe             One Right Probe

One Power Line            Eight Screws

One Instruction (Including one Certificate of Quality & Guarantee Repair List)

Accessories Purchased

Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the control distance should be shorter.

Storage Battery: Maintain the gate working for about 4 hours after charged.

Application

1. Places where security  should be examined. Such as airport, customs, harbor, station, etc.

2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.

3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.

4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry, coinage line , etc.

5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater, ballroom, bar, KTV, etc.

6. Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.

Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector

PS: Coin Standard: The gate can detect one coin with out inference.
