3.0mm Tangential Belt China for Twisting Machine
- 1000 Square Meter / Square Meters per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
Standard or Nonstandard | Nonstandard | Type | Flat Belt | |
Material | Other, rubber&polyester | Place of Origin | Jiangsu, China | |
Brand Name | Sejone | Model Number | TC35/30LK |
Product Description
3.0mm Tangential Belt China for Twisting Machine

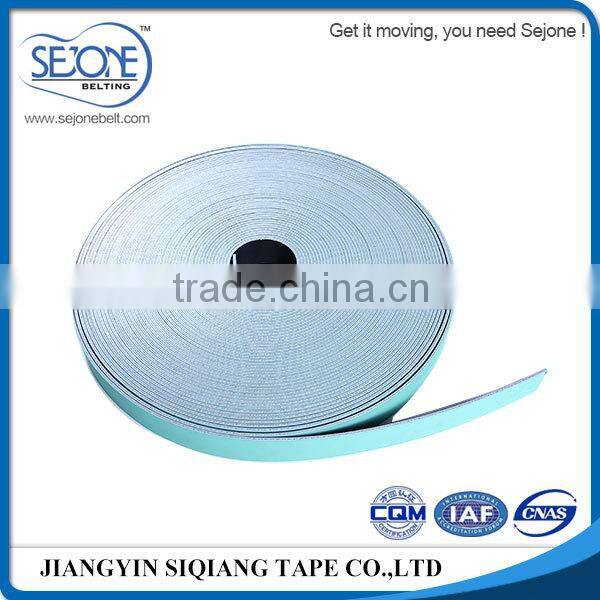

- Description: 3.0mm light green / black tangential belt for twisting machines

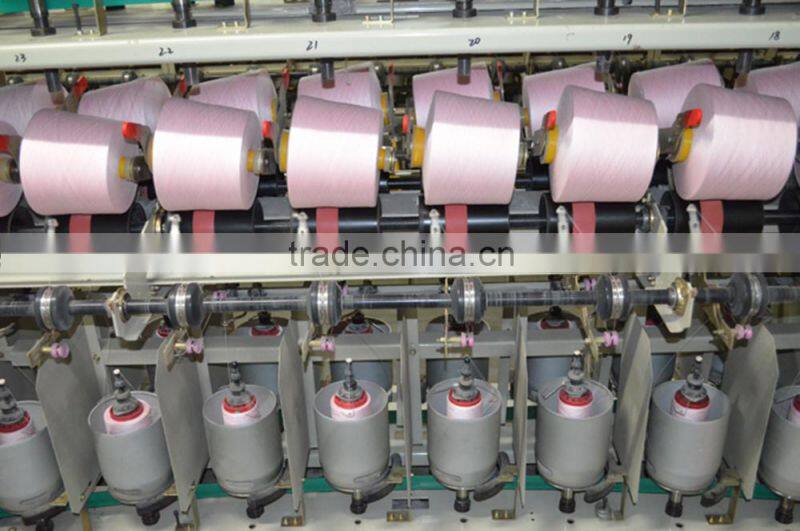

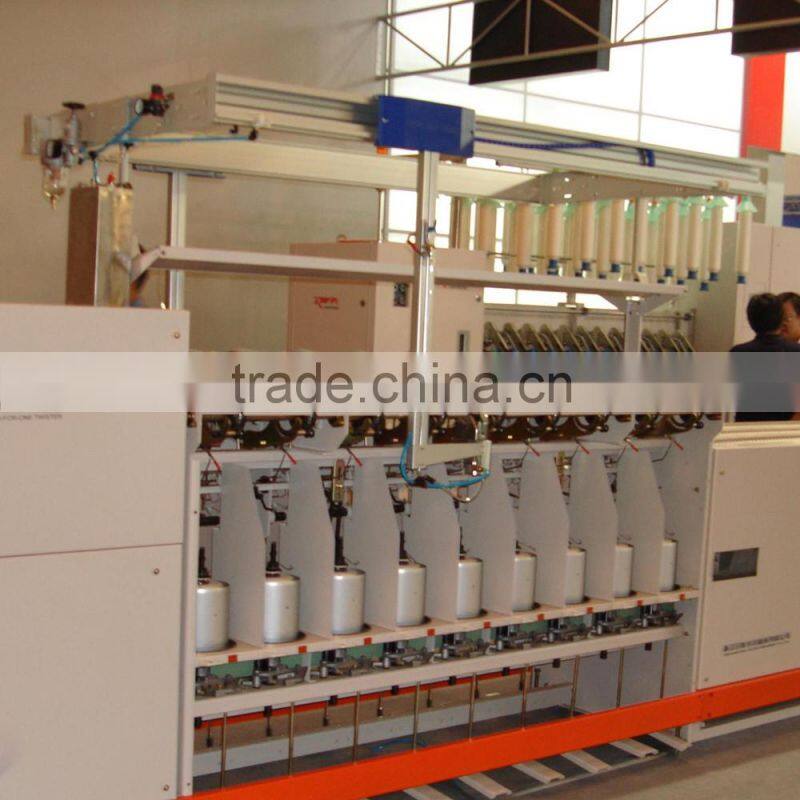

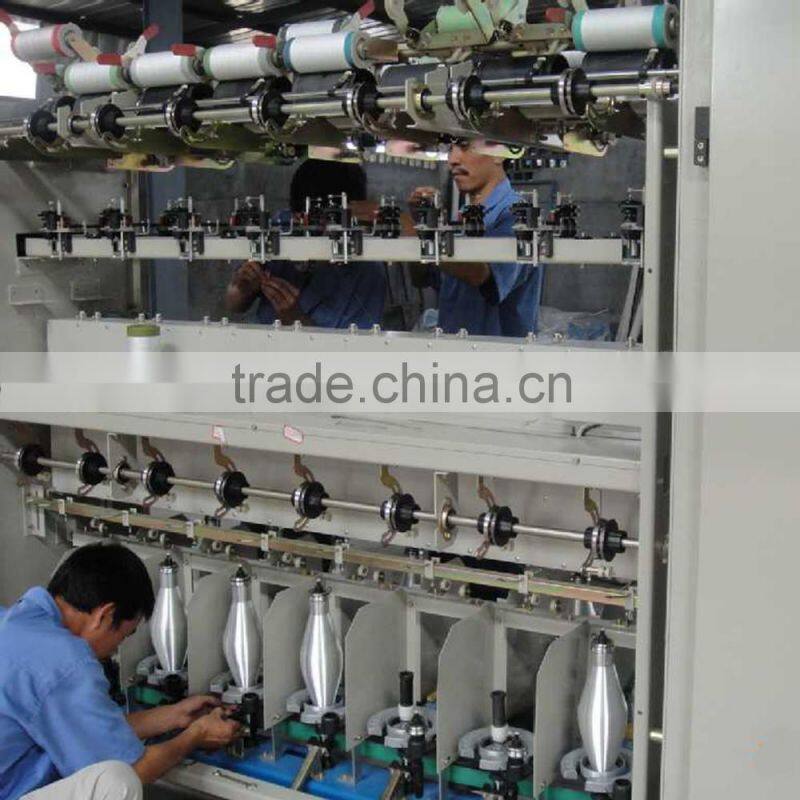

- Applications: twisting machine, texturing machine, elasticizer, etc.
- Advantages: high tensile strength, minimum elongation, energy saving, etc.
- TECHNICAL DATA
Item | TC-35/30 | Antistatic | YES |
THICKNESS (MM) | 3.0 | Traction layer | PET |
Belt weight(KG/m2) | 3.54 | Friction cover | NBR |
Maximim width(mm) | 500 | Friction cover color | Black |
1% Elongation (N/mm) | 19.0 | Reverse cover | NBR |
Minimum pulley diameter(mm) | 70/70 | Reverse cover color | Light green |
Working tempreture (OC) | -20~70 | Joint method | Flexproof/Finger connect |
-PE film wrapped
-Air-cusion film/bubble film wrapped
-woven bag
-plywood pallet or crate (optional)
-customized packing available

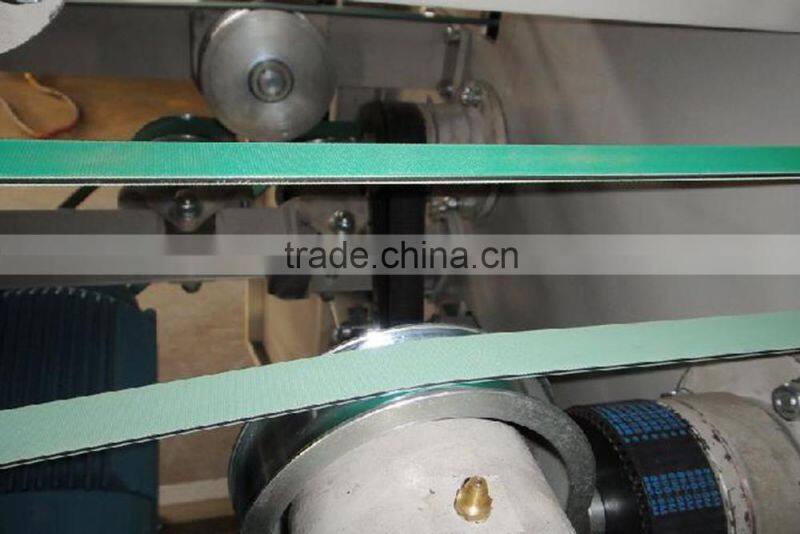

Power transmission field for industrial machinery of flat transmission belts, conveyor belts, etc.
Major Applications:
Twisting machine,
Texturing machine,
Elasticizer, etc.
1Q: Manufacturer or Trading company?
A: Manufacturer. Presently have 5 production lines, with own test center.
2Q: Location&Visit?
A: East China. 2 hour‘s drive away from Shanghai downtown; or 1 hour's bullet train. Call us, if need us pick up.
3Q: About R&D?
A: More than 0.1 million US dollars on R&D, with independent lab. Schedule of new products annually.
4Q: Material? Supplier?
A: Imported polyamide, polyester, NBR and XNBR, etc. Most suppliers authorized for 5 years more.
5Q: Customized, OEM?
A: Sure. Not only color, design, texture, but also labeling&marks.
6Q: Samples?
A: Sure. Normally 3 working days.
7Q: Quality Control?
A: Strict production flow and data to evaluate all steps; sheets track back each step.
Each year, we participate in the exhibitions and fairs related textiles, packing, etc.
Item | Thick (mm) | Traction | Reverse color | Reverse | Friction color | Friction | Joint | Antistatic | Tempreture (oC) | Max Width (MM) |
TC-15GK | 1.5 | PET | Green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-20LK | 2.0 | PET | Light green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-20LG | 2.0 | PET | Light green | NBR | Dark green | NBR | Flexproof | YES | -20~70 | 500 |
TC-20/22DK | 2.2 | PET | Dark green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-20/25LK | 2.5 | PET | Light green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-35/25LK | 2.5 | PET | Light green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-35/30LK | 3.0 | PET | Light green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
TC-55/30LK | 3.0 | PET | Light green | NBR | Black | NBR | Flexproof | YES | -20~70 | 500 |
Since 2003
Specialized in power transmission field for industrial machinery of flat transmission belts, conveyor belts, etc.
More than 0.1 million US dollars on R&D, with independent lab. Schedule of new products annually.
Successive sales growth of 6 years
Export to more than 10 countries in Asia, North Africa, South America, etc.
Our mission is to delivey quality & repliable products and meet the needs of customers
Siqiang Beltech Industries is a privately owned Chinese company over 20 years expericences, and is today one of Chinese Major participants in the lightweight conveyor belting and power transmission belting industry. Siqiang Beltech offers technical support and innovative solutions to her customers.
Today, we could offer a wide variety of industrial belts, to meet the demands for Power Transmission in the line of textile, paper-making, furniture manufacturing and flour milling, etc. Else, conveyance for printing, box folding, and corrugated cardboard machines.
Siqiang Beltech is devoted to building up a professional team of ardor and efficiency, and step by step fulfills the perspective of product diversification and service individuation.
We believe your comments and enquiries would start an important beginning between us.
Contact us right here and right now!
