3.0mm Polyamide Industrial Transmission Belt
- Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Sejone | |
| Model Number | BK-30N10 | Use | Spinning Machinery | |
| Type | Other, Belt transmission |
Product Description

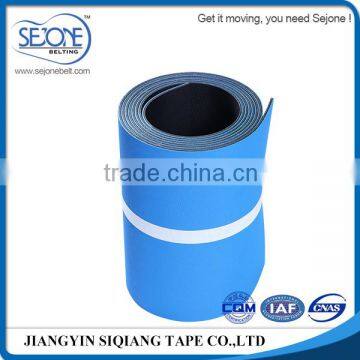

3.0mm Polyamide Industrial Transmission Belt
| Description | 3.0mm Industrial Transmission Belt |
| Total thickness | 3.0mm |
| Tension member/Traction layer | PA 1.0mm thickness |
| Weight | 3.3kg/m2 |
| Cover material | Top Surface Material: NBR Surface: Weave Color:Blue Bottom Surface Material: NBR Surface: Weave Color: Black |
| Axial load under stable condition | 1% elongation: 18.7N/mm width |
| Minimum pulley diameter | 80mm |
| Antistatic | No |
| Standard maximum width | 500mm |
| Slitting | any width slitting for small machine belts offered |
| Joint | offered wedge joint for small machine belts |
| Temperature range for continuous use | -20~+80°c |
| Major applications | -Power transmission in industrial manchinery (fans, pumps, etc.) -Sawmill machines (chippers, etc.) -Paper working machines (coaters, etc.) -Other power transmissions -Cut-proof conveyors (thin-plate conveyors, etc.) |
| Packing details | -PE film wrapped -Air-cusion film/bubble film wrapped -woven bag -plywood pallet or crate (optional) -customized packing available |
| Minimum order quantity | 50 square meters/1 roll; 20 pieces of endless small machine belts |
| Payment | T/T, L/C, D/P, Western Union |
| Delivery | 20-30 days for small machine belts |
Since 2003
Specialized in pwoer transmission field for industrial machinery of flat transmission belts, conveyor belts, etc.
Successive sales growth of 6 years
Export to more than 10 countries in Asia, North Africa, South America, etc.
Our mission is to delivey quality & repliable products and meet the needs of customers
Siqiang Beltech Industries is a privately owned Chinese company over 20 years expericences, and is today one of Chinese Major participants in the lightweight conveyor belting and power transmission belting industry. Siqiang Beltech offers technical support and innovative solutions to her customers.
Today, we could offer a wide variety of industrial belts, to meet the demands for Power Transmission in the line of textile, paper-making, furniture manufacturing and flour milling, etc. Else, conveyance for printing, box folding, and corrugated cardboard machines.
Siqiang Beltech is devoted to building up a professional team of ardor and efficiency, and step by step fulfills the perspective of product diversification and service individuation.
We believe your comments and enquiries would start an important beginning between us.
Contact us right here and right now!
