Pressurized Vacuum Tube Heat Pipe Solar Collector

Specifications

heat Pipe solar collector

Features:
  1.The water can be heated by the heat pipe rapidly.
  2.Save place and easy to install.
  3.Perfectly combined with architecture.
  4.No water flow into the vacuum tubes, the tube won't break in winter.
  5.Stable performance. It can still operate in the event of occasional tube breakage.
  6.The water tank need not be installed higher than the collector.
  7.Ideal for commercial solar water heating applications.
  8.It is available whether the roof is pitch or flat.
  9.Low maintenance effort.

Specifications:
  1.inner mainfold: stainless steel SUS304-2B.
  2.outer mainfold: PVDF
  3.glass tube dimension: 47mm*1500mm      58mm*1800mm
  4. heat preservation: 72hrs
  5. hail resistance: 15mm

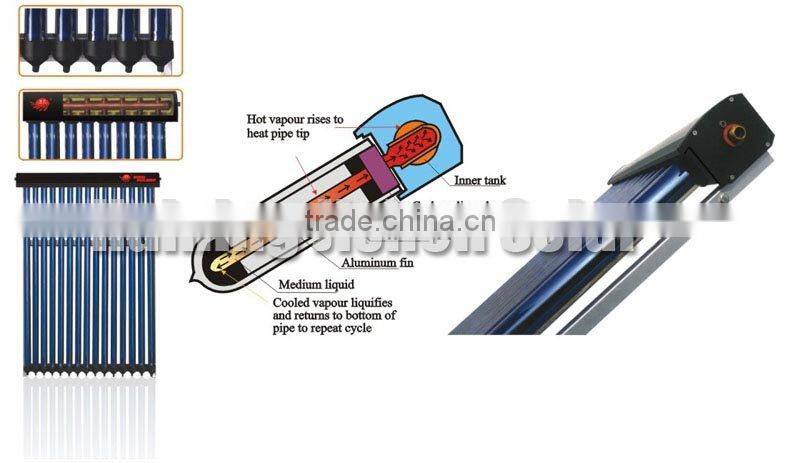

Working Principle:
  1.Solar absorption: solar radition is absorbed by the vacuum tubes and convert into heat.
  2.Heat transfer: Heat pipes conduct the heat from within the tube up to the header pipe.
  3.Water heating: Water is circulated through the header, via intermittent pump cycling, each time the water circulates through the header, the temperature will be raised 5 to 10°c. Throughout the day, the water in the tank is gradually heated.

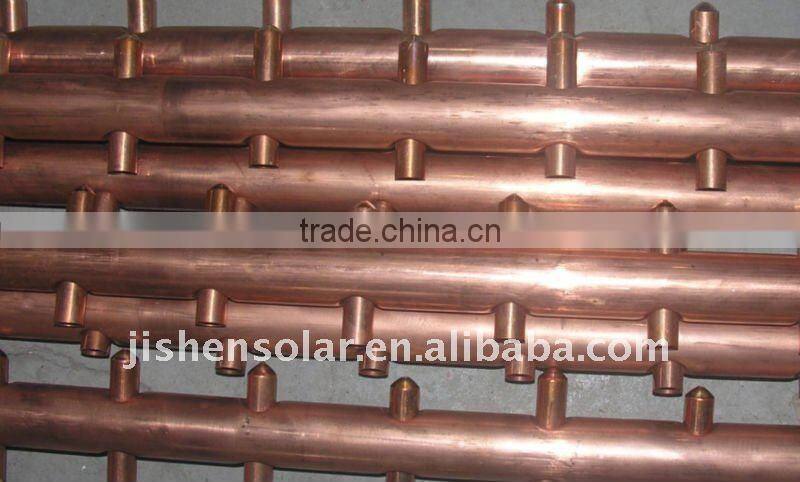

Material figure below

welding

packaging
