New Arrvial Residential 180L Compact No-pressurized Solar Water Heater With 5L Assistant Tank

Specifications

Non-pressurized solar water heater

Solar tank:

   Inner tank: Imported food grade SUS304-2B stainless steel.(0.4-0.5mm)
   Outer tank: Color steel.(0.3-0.4mm)

   Tank diameter: 480mm

   Tank capacity: 100 liter-500 liter.

Solar Insulation:

Imported high pressure polyurethane integral machine foam.

Thickness 50-60mm, density 42 KG/CBM, heat preservation time 72 hours.

Solar Vacuum tube:

    High-quality borosilicate glass 3.3.
    Selective absorption coating: SS-CU-ALN/ALN
    Specification:58-1800MM.

Solar Frame:

   Material: Galvanized steel (1.5mm)

   Angle: 25/30/38/45 degree for option.(any degree)

Solar Accessories:

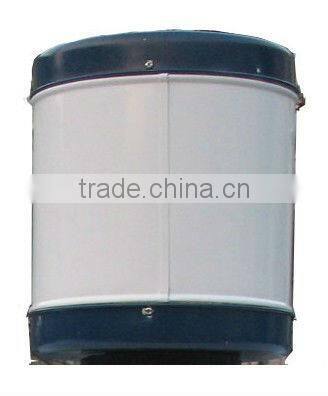

   optional electric heater /assistant tank/ solar controller.

   ISO9001:2000/CE/CCC/SGS certificate

   10 years quality warranty for solar energy water heater whole system.

We are a professional solar water heater factory for more than 15 years

1)Quality control--our defective products rate is 0.001%

2)Imported German(Insulation) material 100%,Make the heat preservation effect is better

and make your life easier and superior

3)Economically priced,exquisitely made.Experienced&responsible QC that you can rely on

4)Adequate supply capacity,Punctual delivery time

5)Best after sales service are provided

features:

1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

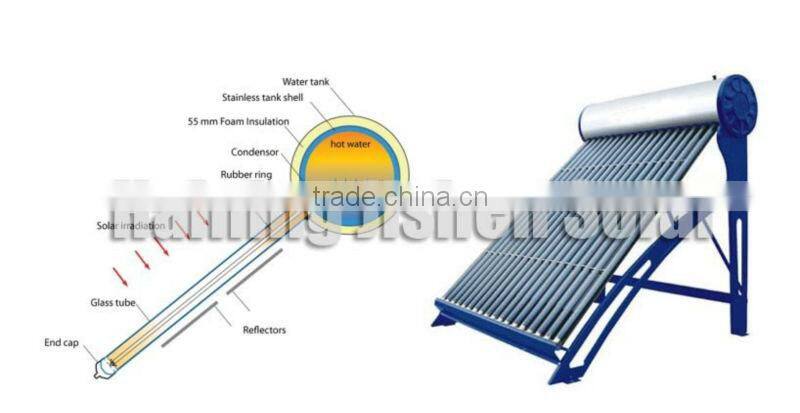

SGS serials is Thermosyphon solar water heater, That is a kind of solar water heating system that solar collector and storage are connected together with the cylinder storage on the top and collector panel on the bottom. There is no need of pump to push the fluid and no need of pipeline between the collector and storage. It is a simple and safe solution to get heat power from the sun.
