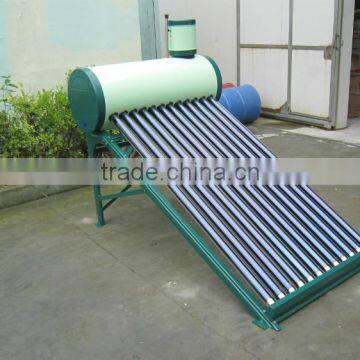

Solar thermal water heater with evacuated tubes

FOB Price

USD $100 - $600 / Set

10 Sets(Min.Order)

Port Shanghai/Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE, Other, CE, RoHS, ISO9001:2000, CCC, SGS
Capacity	100	Place of Origin	Zhejiang, China
Brand Name	JISHEN	Model Number	JSNP-M120

Product Description

Solar thermal water heater with evacuated tubes

Detailed Product Description:

1) Inner tank material: SUS304-2B stainless steel. Available thickness is 0.25-0.5mm.

2) Outer tank material: color chromed steel or galvanized steel or stainless steel.

Available thickness is 0.25-0.5mm.

3) Vacuum tube: 58x1800mm/58x1500mm/47x1800mm/47x1500mm
Material: high borosilicate glass, three-layer coated vacuum tube. Over 15 years service life. Hail resistance: 25mm.

4) Insulation layer: High density polyurethane foam. Available thickness is 50-70mm.

5) Very popular tank capacity in present markets is 100-300L.

6) Frame: Galvanized steel or stainless steel or aluminum alloy

7)Assistant tank: material is same as main tank, capacity with 5L, 8L, 10L available

Loading quantity information:

Vacuum tube			Tank capacity (liters)	Volume of one completed set	Quantities fit in a 20ft and 40HQ container
Dia(mm)	length(mm)	tube quantities(pcs)		Volume of one completed set	20'GP (28m3)	40'HQ (68m3)
Dia(mm)	length(mm)	tube quantities(pcs)		(CBM)/set	(sets)	sets
		10	100L	0.4	70	170
		15	150L	0.6	46	113
Φ58	1800	20	200L	0.8	35	85
		25	250L	1	28	68
		30	300L	1.2	23	56
		35	350L	1.4	20	48
		40	400L	1.6	17	42
		45	450L	1.8	15	38
		50	500L	2	14	34

For more information,please contact us freely,thanks!

Packing details:

Container loading details:
