Milling machine
Negotiable
/ Set
1 Set(Min. Order)
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | tosunny | |
| Model Number | X6036 |
Product Description

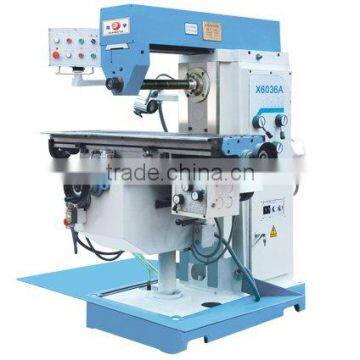

Milling machine
| SPECIFICATIONS | X6036A | X6036B |
| Spindle taper | 7:24 ISO50 | 7:24 ISO50 |
| Distance.spindle to tabie surface mm | 0-380 | 0-380 |
| Spindle center to column guideway surface distance mm | 175 | 175 |
| Spindle speed range r/min | 60-1800(12stage) | 60-1800(12stage) |
| Table size mm | 1250×360 | 1500×360 |
| Table travel (X/Y/Z) mm | 600/320/360 | 1000/320/380 |
| Table longitudinal/lateral Speed of mm/min | 22-555(8stage)810(max) | 15-370(8stage)540(max) |
| Table vertical speed motor movements mm/min | 590 | 590 |
| Table T-slot number/width/spacing mm | 3/18/80 | 3/18/80 |
| Without trip mm | 500 | 500 |
| Main motor power kW | 4 | 4 |
| Table motor power feed motor w | 750 | 750 |
| Lift motor power down feed w | 1100 | 1100 |
| Cooling pump motor powe w | 90 | 90 |
| Cooling pump flow | 25 | 25 |
| Machine NW/GW (kg) | 2200/2400 | 2200/2400 |
| Overall size mm | 1880×1700×1700 | 2220×1790×1700 |
