Engine Lathe

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Horizontal, Engine Lathe
CNC or Not	CNC	Place of Origin	Guangdong, China
Brand Name	TOSUNNY	Model Number	C6232A2
Voltage	380V	After-sales Service Provided	Engineers available to service machinery overseas

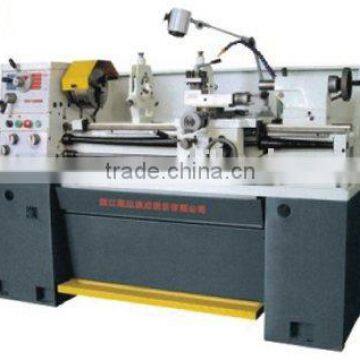

Engine Lathe

Specification
ITEMS	C6232A2
Max. swing over bed	φ330(13")mm
Max. swing over slide	φ195(7-5/8”)mm
Max. swing in gap	φ475(19”)mm
Width of bed	206(8-1/8”)mm
Max. Length of workpiece	1000/750(40”/30”)mm
Taper of spindle bore	M.T.No.5
Diameter of spindle hole	φ38(1-1/2”)mm
Number of spindle speeds	16,2 ranges
Range of spindle speeds	45-1800RPM
Spindle nose	D1-4
Metric pitch thread	0.45-7.5(22kinds)mm
Whit-worth thread	4-112(44kinds)TPI
Range of longitudinal feeds	0.043-0.653(0.0012"-0.0294"rev)mm
Range of cross feeds	0.015-0.220(0.0003"-0.01"rev)mm
Diameter of leadscrew	φ22(7/8”)mm
Pitch threads of leadscrew	4(8T.P.I.)mm
Travel of tailstock quill	120(4-3/4")mm
Diameter of tailstock quill	φ45(1-25/32”)mm
Taper hole of tailstock quill	M.T.No.3
Power of main motor	1.5/2.4(3HP)
Coolant pump motor power	0.04(0.055HP)kw
Overall dimensions (L×W×H)	1920×740×1180mm
Packing size of lath (L×W×H)	2020×900×1560mm
Net weight	700(1540 lbs)kg
Gross weight	820(1810 lbs)kg
