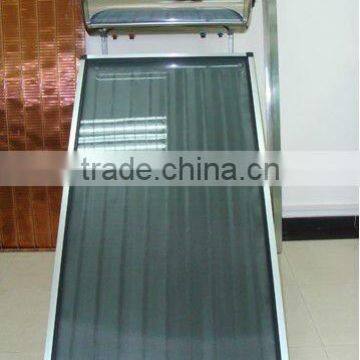

Good quality Flat Panel solar water heater

FOB Price

USD $500 - $1,500 / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Good quality Flat Panel solar water heater (JSCFP-M004)

Specification of tank:

1. Inner tank:1.2mm- 1.5mm sus304-2B food-grade stainless steel

2. Outer tank:0.31mm-0.4mm stainless steel

3. Insulation:50mm-60mm high density ployurethane foam layer

4. Heat preservation:72hours

5. Capacity: 100liter to 350liters

Specification of frame:

1. Bracket: galvanized steel or stainless steel or aluminum

Specification of flat panel collector:

Size(LxWxH mm)	2000x1060x 80(mm)
Gross area	2.12 M2
Aperture area	2 M2
Absorbing area	1.85 M2
Material of cover glass/ thickness(mm)	low-iron tempered patterned glass/4.0mm
Absorbancy	≥92%
Header tube material /size	copper TP2 / Φ25x1060mm
Riser tube material /size	copper TP2 / Φ10x1950mm
Absorber fin/thickness(mm)	copper/0.2mm
Absorber coating	black chrome selective coating or blue sputtering selective coating
Insulation materials	high-density mineral wool
Back sheet	0.5mm galvanized steel plate
Material of frame / thickness	Anodized aluminium alloy /80mm
Operation pressure	1.0MPa
Test pressure	1.6MPa
Working temperature	-34℃≤T≤200℃
