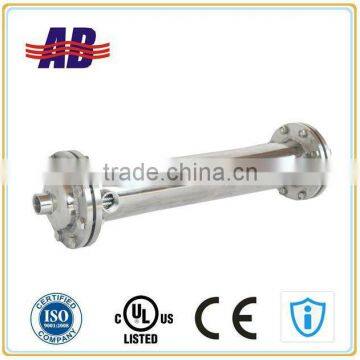

CE Approved Purity Titanium Marine Oil Cooler
- Shanghai Ningbo
- T/T L/C Credit Card PayPal
You May Like
-
CE Approved Stainless steel Hydraulic Oil Cooler for Exchanger
-
CE Approved Stainless steel Hydraulic Oil Cooler
-
CE Approved Stainless Steel 316L Marine Water Intercooler
-
CE Approved Marine Heat Exchanger
-
CE Approved Marine Oil Cooler from Stainless Steel
-
CE Approved Diesel Engine water to air intercooler
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | AB | Model Number | FG140-E | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | 150L/min | |
| Maximum Working Pressure | 2.0MPa | Voltage | 220,380,40V | |
| Weight | 3.5KG | Dimension(L*W*H) | 836*133*155 | |
| Power(W) | 3.5-100kW | Certification | CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Our Marine heat exchanger is1. Stainless steel 316L or titanium material
2. High efficiency corrugated tubes
3. PED 97/EC/23
We produce series of oil coolers for marine or river boat engine, hydraulic system cooling including the following series
l DC Heat Exchangers
l Engine & Transmission Oil Coolers
l Hydraulic Oil Coolers
l Exhausted Air to Water Intercoolers
l Marine Heat Exchangers
l Fuel Coolers
l After Coolers
Features of Marine heat exchanger:
With corrugated tubes, this marine heat exchanger ensures high viscosity oil with good flow velocity inside of the unit.
This features made this marine heat exchanger efficient and cost effective on water to oil cooling system.
Advantages of Marine heat exchanger:
1. High heating efficiency for oil cooling
2. Compacted size
3. Easy installation
4. Stainless steel 316L or titanium shell & tubes.
5. Various connectors for connection.
Performance data of Marine heat exchangers
Typical examples of heat exchangers fitted to marine transmissions with an oil inlet temperature of 80°C and a sea water temperature of 32°C.
Type | Sea water pipe (mm) | Engine Water Pipe | Engine power | |
kW | HP | |||
DC 50 DC 60 DC 90 DC120 | 20/25 20/25 20/25 20/25 | Rc 3/8" or 1/2" Rc 3/8" or 1/2" Rc 3/8" or 1/2" Rc 3/8" or 1/2" | 30 40 60 80 | 40 54 80 107 |
EC 80-E EC100-E EC120-E EC140-E | 32/40 32/40 32/40 32/40 | Rc 1/2" Rc 1/2" or 3/4" Rc 1/2" or 3/4" Rc 3/4" | 60 90 120 150 | 80 120 160 200 |
FC100-E FC120-E FC140-E FC160-E | 65 65 65 65 | Rc 1" Rc 1" Rc 1" Rc 1" | 135 180 225 270 | 180 240 300 360 |
FG100-E FG120-E FG140-E | Rc 2 1/2" Rc 2 1/2" Rc 2 1/2" | Rc 1 1/4" Rc 1 1/4" Rc 1 1/4" | 225 270 360 | 300 360 480 |
GL140-E GL180-E GK190-E GK250-E GK320-E | Rc 2" Rc 2" 100 100 100 | Rc 1 1/2" Rc 1 1/2" Rc 2" Rc 2" Rc 2" | 360 450 700 950 1200 | 480 600 940 1270 1608 |
GL140-H GL180-H GL240-H GK190-E GK250-E GK320-E | Rc 1 1/2" Rc 1 1/2" Rc 1 1/2" Rc 2" Rc 2" Rc 2" | Rc 2" Rc 2" Rc 2" Rc 2 1/2" Rc 2 1/2" Rc 2 1/2" | 180 250 320 360 450 550 | 240 335 428 428 600 737 |
JK190-E JK250-E JK320-E PK190-E PK320-E PK350-E PK400-E | Rc 2 1/2" Rc 2 1/2" Rc 2 1/2" Rc3" Rc3" Rc3" Rc3" | 80 80 80 100 100 100 100 | 550 700 850 700 950 1200 1400 | 737 938 1140 938 1273 1608 1876 |
Design Parameter
Maximum working pressure on oil side: 25 bar
Maximum working pressure on water side: 3 bar, 10 bar, 15 bar
Maximum working temperature: 125°C
We produce customized applications on different working pressure and temperature.
1. High temperature resistant and water proof label
2. One unit will one instruction booklet
3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.
4. Quick delivery for sample and bulk order
5. Minimal order quantity: 1 unit
1. Sample provied
2. Quick delivery by FedEx or DHL
3. Customized production for special requirements
4. OEM logo and brand
5. Quality warranty: 1 year, free replacement for any fail due to our product
