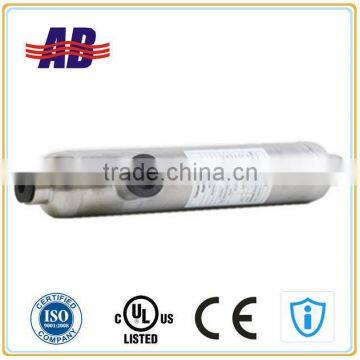

CE Approved Titanium Heat Exchanger
Negotiable
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | AB | Model Number | SP-4500Kti | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | 3176L/min | |
| Maximum Working Pressure | 3.0MPA | Voltage | 220,380v | |
| Weight | 36kgs | Power(W) | 1320kW | |
| Certification | CE, UL, Other, CE, UL, ISO | Warranty | 5 years | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
This titanium Shell & Tube Heat Exchangers are made of titanium spiral twisted tubes and titanium shell.Product Description
We produce series of titanium heat exchangers as the following series
Swimming pool heat exchanger
Marine Engine & transmission oil cooler
Charged air to water intercooler
DC heat exchanger
Marine heat exchanger
Fuel cooler
Features of Titanium Shell & Tube Heat Exchangers:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any liquid to liquid applications.
Advantages of Titanium Shell & Tube Heat Exchangers:
High heating efficiency for oil heating or cooling, big flow volume, compactable, easy installation and durable.
Easy clean, big flow with low pressure drop
Material: All titanium grade 1
Max design temperature:258°C
Max. working pressure:1.3Mpa
Heat Transfer area:8.46 square meter
Heat Exchangers Performance of Titanium Shell & Tube Heat Exchangers:
| Model No. | Heat transfer area | Shell side | Tube side | Weight | Packing Carton Size | |
| m2 | Ft2 | Kgs | CM | |||
| SP-55Kti | 0.15 | 1.636 | 1 1/2" | 1" | 1.60 | 42X10.5X13 |
| SP-85Kti | 0.25 | 2.702 | 1 1/2" | 1" | 2.20 | 58X10.5X13 |
| SP-155Kti | 0.33 | 3.552 | 1 1/2" | 1" | 2.60 | 51X12X14.5 |
| SP-210Kti | 0.44 | 4.769 | 1 1/2" | 1 1/2" | 3.30 | 63X12X15.5 |
| SP-300Kti | 0.64 | 6.889 | 1 1/2" | 1 1/2" | 4.65 | 84X12X16 |
| SP-360Kti | 0.85 | 9.128 | 2" | 1 1/2" | 6.00 | 89X21.5X13 |
| SP-600Kti | 1.55 | 16.695 | 2 1/2" | 2" | 10.20 | 96X24X16 |
| SP-1200Kti | 2.01 | 21.582 | 2 1/2" | 2" | 12.80 | 96X26X18 |
| SP-2400Kti | 4.47 | 48.116 | 4" | 2" | 26.00 | ply wooden box |
| SP-3000Kti | 5.30 | 57.051 | 4" | 2 1/2" | 28.50 | ply wooden box |
| SP-3600Kti | 6.42 | 69.107 | 4" | 2 1/2" | 36.00 | ply wooden box |
| SP-4500Kti | 8.46 | 91.066 | 4" | 2 1/2" | 47.00 | ply wooden box |
Application:
Pool, spa ,
Marine, fish tank,
Chemical process, medical process.
Packaging & Shipping
1. High temperature resistant and water proof label
2. One unit will one instruction booklet
3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.
Our Services
1. Sample provied
2. Quick delivery by FedEx or DHL
3. Customized production for special requirements
4. OEM logo and brand
