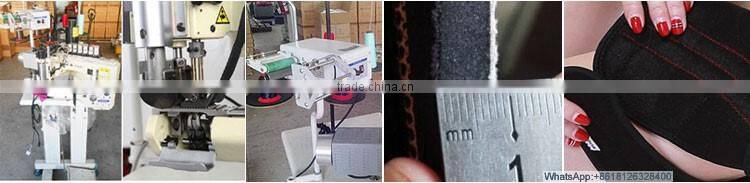

Industrial Sewing Machine Qinme

We have 3 series Industrial Sewing Machines for your sewing work.

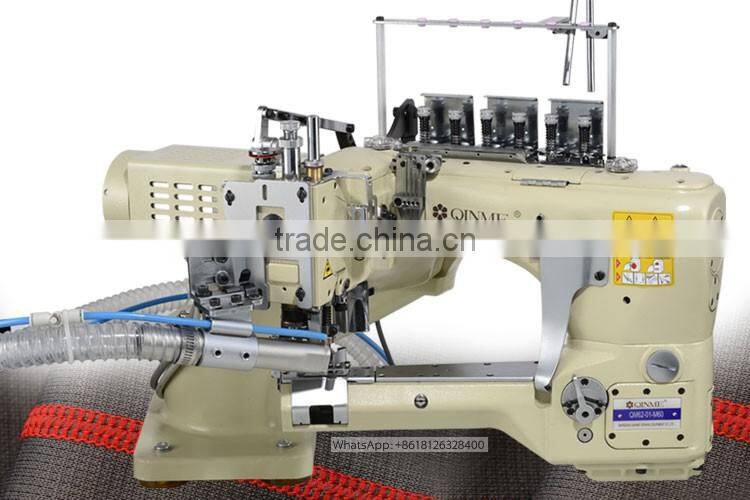

Series 6200:
Featured as 4 needle 6 thread stitch,double and single material trimmer available, taiwan motor, sewing for light weight materials like sports wear,kids clothes,underwear,socks,etc.
QM-6200-12MR
QM-6200-01MR

Specifications:

Description: High speed feed-off-the-arm machine for flat seaming(oil-free)

Dimensions:       420mm(L)x300mm(W)x310mm(H)

Working space:  Cylindrical shape of 210mm in front of needle drop

Weight: 23kg (machine head only)

Stitch Type:  ISO 406, 605, 608

Sewing Speed:    Up to 3800rmp, 3000rmp in usual

Stitch Length:     1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm)   12-19 stitches per 30mm

Needle System:  Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS

                                  Retainer needle: Organ FLG-1, FLF-8(with scarf)

                                  Groz-Becket 36211.36211A(with scarf)

Feed Regulation:       By lever

Differential Ratio:      Max. normal differential:1.0:1.5

                                Max. reverse differential: 1.0:0.7

Lubrication: Automatically by gear pump

Lubrication oil:   OIL NO.68

Capacity of Oil reservoir :          Frame: about 100c

                                                Cylinder: about 100cc

Circumference of Cylinder:       148mm at needle drop

Differential Feed regulation:     By dial

Knives of Fabric Cutting:           Both upper and lower knives made of special steel

Model: 35800

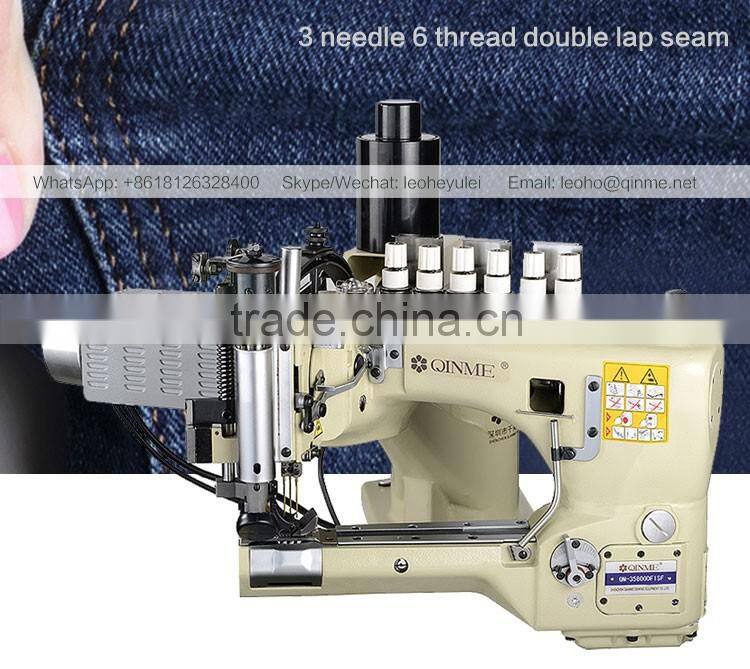

Featured as 3 needle 6 thread stitch,sewing for medium and hevy duty material like jeans,jackets.
Model QM-35800SF1SN Heavy duty material industrial sewing machines

Specifications:

Name                             QM-35800

Sewing form                  three needles six threads sewing machine

Function                        medium~ high thickness: jeans, labor jacket, uniform

Max sewing speed        4500rmp

Stitch length  6.4mm(1/4”)

Sewing length                          2.1mm~3.6mm(standard 3.2mm)

Needle/standard sewing      UY130GS(standard)/Nm140(#22)

Needle bar area            33mm

Stitch conductor           6conductors

Weight(head)                23.5kg

Presser foot lift             Max 9mm(6.5mm for factory)

Tug on the feed width  11.9mm

Feed adjustment method     Main feed: slide length adjustments

                                       Poor feed: lever adjustment        No differential control

Lubricating method      Automatic rotary pump oil

Machine oil                   Juki machine oil NO.18

Installation method      Aid drive assembly  MT103 mounted on the machine

Model: 36800

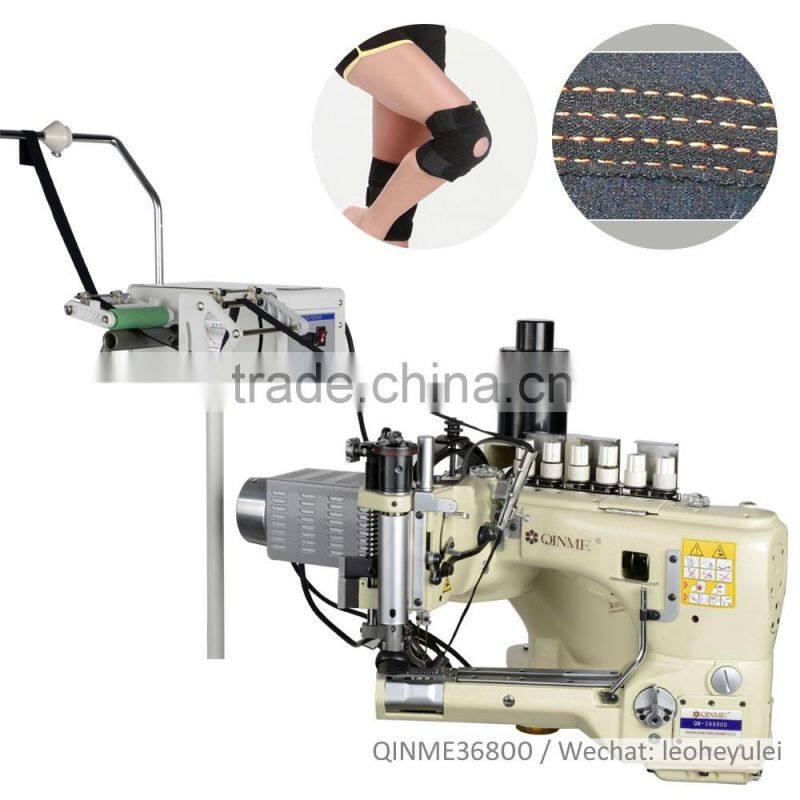

Featured as 4 needle 6 thread stitch, equipped with tape feeder, suitable for extra heavy duty materials like kneepad, jeans, material thickness up to 9:00mm.
Model QM-36800 industrial sewing machines for extra heavy duty material

Specifications:

About  Company Qinme industrial sewing machine

Established in 1993, Shenzhen Qinme sewing equipment co.,ltd has been researching and manufacturing sewing machines for more than 20 years. Today, Qinme has one of the largest varieties of industrial, special equipment; from lockstitch machines for upholstery to specialty 4 needle 6 thread high speed interlock stitch machines for underwear, sports garments, curtains etc. Qinme has it all. Our heavy duty machines are well designed for sewing jeans,leather,canvas,webbing, parachutes,and tents,as well as other garments.

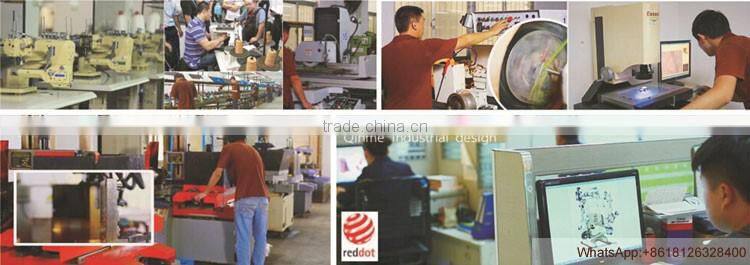

Qinme growing fast in recent years based on our R&D teams and CNC machining department which set up early. All our accessories and parts of sewing machine are produced by ourselves, we gained high reputation from clients. At the same time, We can offer CNC machining services to our customers if they need parts use for electronics,medical, aeronautical, automotive, even intelligent home.

 With offices in Shenzhen China, Bangladesh, Pakistan, and agents throughout the world. QINME is able to supply and service the most reliable ,precisely and affordability machines and parts you need. We are looking for more agents from potential markets, welcome to visit us.
