Home > Products > Cabinet PTC Heater > SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

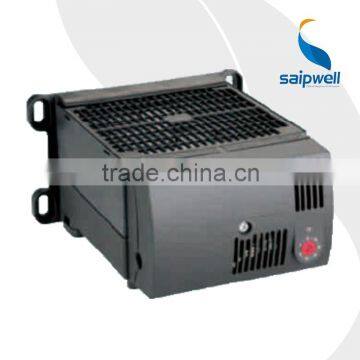

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Type	Air Heater
Power Source	Electric		Place of Origin	Zhejiang, China
Brand Name	SAIP/SAIPWELL/Stego		Model Number	CR 130
Power(W)	950W		Certification	CE,RoHS

Product Description

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

CR 130 Heater Feature:

1.Compact design

2.Double insulated

3.Integrated thermostat or hygrostat

4.Optional clip or screw fixing

5.CE&RoHS

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Specification:

CR 130 Heater: The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.The plastic enclosure provides double insulation and acts as protection against contact.The fan heater is available with integrated thermostat or preset hygrostat for temperature or humidity control. The CR 130 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 030 is recommended.

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Technical Data:

Heating element	high performance cartridge
Temperature safety cut-out	to protect against overheating in case of fan failure
	automatic reset
Heater body	extruded aluminium profile
Axial fan, ball bearing	airflow 160m³/h, free flow
	service life 50,000h at 25°C (77°C)
Casing	plastic according to UL94 V-0, black
Connection	2-pole max. 2.5mm², clamping screw with strain relief,
	torque 0.8Nm max.
Mounting	screw fixing (M5)
Fitting position	horizontal
Operating/Storage temperature	-45 to +70 °C (-49 to +158 °F)
Dimensions	182 x 160 x 99mm
Weight	approx. 1.45kg
Protection type / Protection class	IP20 / II (double insulated)
Note	other heating capacities from 200W up available on request

Art. No.	Model	Operating voltage	Heating capacity	Setting range
13051.0-00	Fan heater with thermostat	230VAC, 50/60Hz	950W	0 to +60°C
13051.0-02	Fan heater with hygrostat	230VAC, 50/60Hz	950W	65% RH,factory-set
13059.9-00	Fan heater with thermostat	120VAC, 50/60Hz	950W	+32 to +140°C

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Technical Drawing:

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Picture Show:

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Thermostat And Heater Series:

SAIPWELL CR 130 950W Compact High-performance Double Insulated Fan Heater

Our Company:

Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
