SAIPWELL CS 130 1200W Compact High-performance Fan Heater

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Type	Air Heater
Power Source	Electric		Place of Origin	Zhejiang, China
Brand Name	SAIP/SAIPWELL/Stego		Model Number	CS 130
Power(W)	1200W		Certification	CE,RoHS
Weight	approx. 1.25kg

Product Description

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

CR 130 Heater Feature:

1.Compact design

2.High heating performance

3.Double insulated

4.Integrated thermostat(optional)

5.Optional clip or screw fixing

6.CE&RoHS

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

Specification:

CR 030 Heater: The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended .

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

Technical Data:

Heater element	PTC resistor,self regulating and temperature limiting
Temperature safety cut-out	to protect against overheating in case of fan failure
Axial fan, ball baring	service life 50,000h at 25°C(77°F)
Connection	2-pole max. 2.5mm², clamping screw with strain relief,
	torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail,EN 60715
Fitting position	horizontal
Dimensions	100×128×165mm
Weight	approx. 1.25kg
Operating/storage temperature	-45 to +70°C (-49 to +158°C)
Protection type/Production class	IP20 / II (double insulated)

Art. No.	Model	Operating voltage	Heating capacity	Inrush current max.	Setting range
13060.0-00	Fan heater with thermostat	230VAC, 50/60Hz	1200w	13A	0 to +60°C
13060.0-01	Fan heater without thermostat	230VAC, 50/60Hz	1200w	13A	-
13060.9-00	Fan heater with thermostat	120VAC, 50/60Hz	1200w	16A	+32 to +140°F
13060.9-01	Fan heater without thermostat	120VAC, 50/60Hz	1200w	16A	-

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

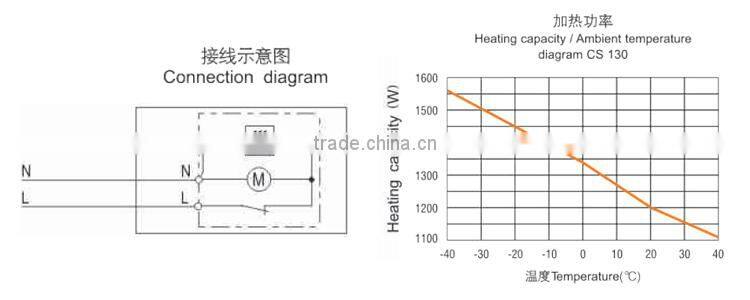

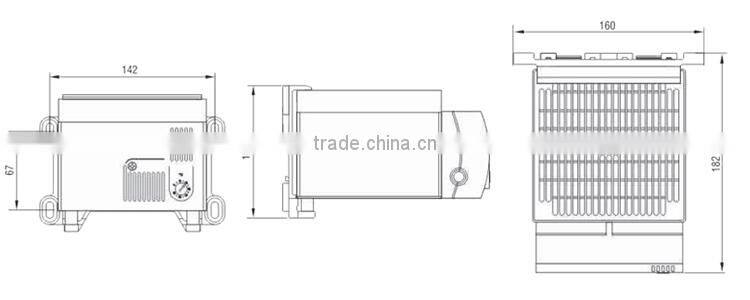

Technical Drawing:

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

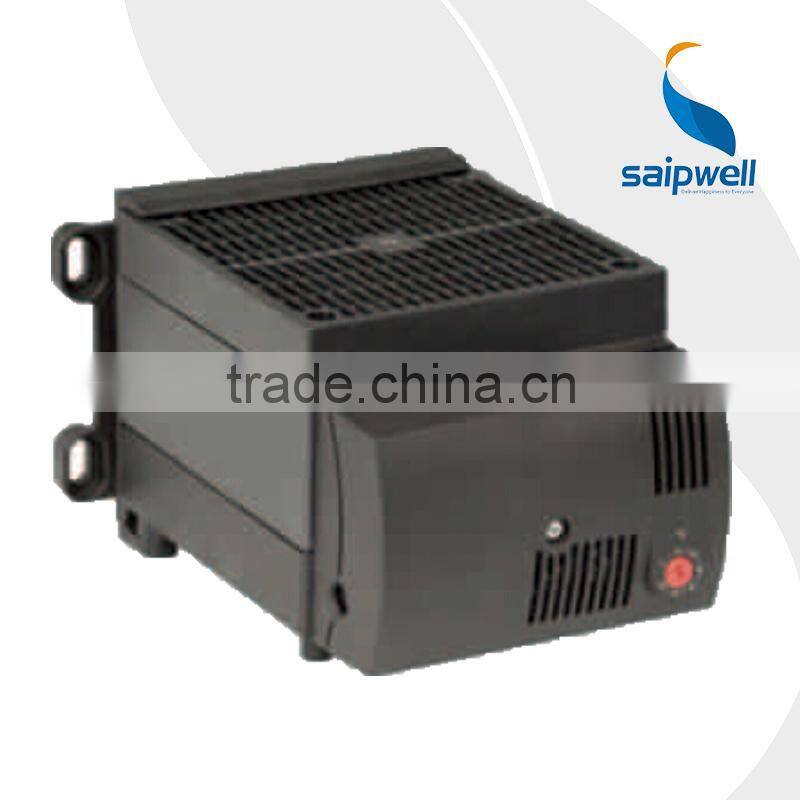

Picture Show:

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

Thermostat And Heater Series:

SAIPWELL CS 130 1200W Compact High-performance Fan Heater

Our Company:

Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

Our Factory:
