Home > Products > Cabinet PTC Heater > SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

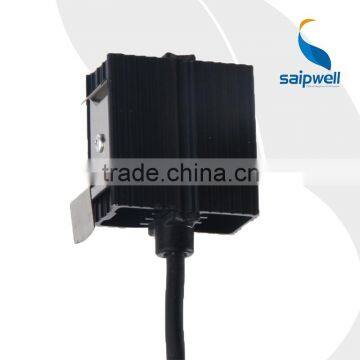

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Type	Air Heater
Power Source	Electric		Place of Origin	Zhejiang, China
Brand Name	SAIP/SAIPWELL/Stego		Model Number	HGK 047
Power(W)	10W,20W,30W		Certification	CE,RoHS
Warranty	2 Years

Product Description

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

HGK 047 Heater Feature:

1.Dynamic heating up

2.Energy saving

3.Wide voltage range

4.Temperature limiting

5.Clip fixing

6.CE&RoHS

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Specification:

HGK 047 Heater: The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Technical Data:

Heating element	PTC resistor, self regulating and temperature limiting
Heater body	extruded aluminium profile, anodised
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical
Operating/Storage temperature	-20 to +70 °C (-4 to +158 °F)
Protection type/Protection class	IP54 / I (earthed)
Accessoires	screw fixing
Note	other voltages on request

Art. No	Operating voltage	Heating capacity	Inrush current max.	Lenght(L)	Weight(approx.)	Connection
04700.0-00	120-240V AC/DC	10W	1.0A	50mm	0.1kg	3 x 0,5mm² x 300mm sheathed cable (silicone)
04701.0-00	120-240V AC/DC	20W	2.5A	60mm	0.2kg	3 x 0,5mm² x 300mm sheathed cable (silicone)
04702.0-00	120-240V AC/DC	30W	3.0A	70mm	0.2kg	3 x 0,5mm² x 300mm sheathed cable (silicone)
04700.9-00	110-120 V AC/DC	10W	1.0A	50mm	0.1kg	3 x AWG 20 x 300mm sheathed cable
04701.9-00	110-120 V AC/DC	20W	1.5A	70mm	0.2kg	3 x AWG 20 x 300mm sheathed cable
04702.9-00	110-120 V AC/DC	30W	1.5A	100mm	0.2kg	3 x AWG 20 x 300mm sheathed cable

¹at 20°C ( 68°F) ambient temperature
²(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Technical Drawing:

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Picture Show:

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Thermostat And Heater Series:

SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For Enclosure

Our Company:

Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
