Home > Products > Cabinet PTC Heater > SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

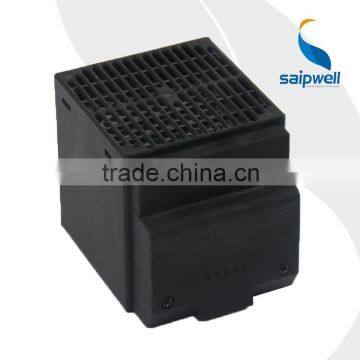

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Type	Air Heater
Power Source	Electric		Place of Origin	Zhejiang, China
Brand Name	SAIP/SAIPWELL/Stego		Model Number	CSL028
Power(W)	150W,250W,400W		Certification	CE,RoHS
Weight	approx. 0.3kg

Product Description

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

CSL 028 Heater Feature:

1.Small,compact design

2.Quiet in operation

3.Dynamic heating up

4.Clip or screw fixing

5.CE&RoHS

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Specification:

CSL 028 Heater: Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature is enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The CS 028s small size make it ideal for use in enclosures where space is at a premium.

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Technical Data:

Heating element	PTC heating element
Inrush current max.	2A at 230VAC, 5A at 120VAC
Surface temperature	Max. 65°C (149°F)
Axial fan, ball bearing	air flow 13.8m³/h, free flow (service life 40,000h at 40°c)
Connection	2-pole clamp max. 2.5mm² clamping screw torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical
Weight	approx. 0.3kg
Operating/Storage temperature	-45°c to +70°c(-49°F to +158°F)
Protection type/Protection class	IP20/II(double insulated)
Note	other voltage on request

Art. No.	Art. No Screw fixing	operating voltage	Heating capacity	Dimensions	Weight
02800.0-00	02800.0-01	230VAC,50/60Hz	150W	9085111mm	0.5kg
02811.0-00	02811.0-01	230VAC, 50/60Hz	250w	9085111mm	0.5kg
02810.0-00	02810.0-01	230VAC, 50/60Hz	400W	9085111mm	0.5kg
02800.9-00	02800.9-0.1	120VAC, 50/60Hz	150W	9085111mm	0.5kg
02811.9-00	02811.9-01	120VAC, 50/60Hz	250W	9085111mm	0.5kg
02810.9-00	02810.9-01	120VAC, 50/60Hz	450w	9085111mm	0.5kg

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Technical Drawing:

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Picture Show:

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Thermostat And Heater Series:

SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan Heater

Our Company:

Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
