Product Details
| Place of Origin | Hebei, China | Brand Name | ELEPHANT | |
| Model Number | EL-ST1000 |
Product Description

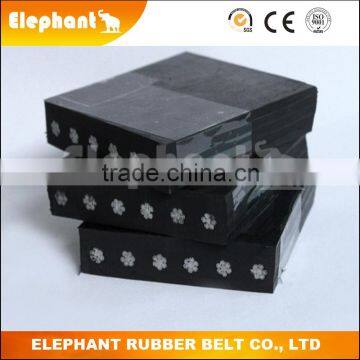

Anti-abrasive Steel Cord Conveyor Belt
Description :
Wear-resistant, rot and corrosion-resistant, resistant to chemicals and thermally stable, our steel cord conveyor belts provide long years of service while requiring little maintenance.
Suitable for mines, steel factories, docks, long distances,high strength, and large quantity.
Features :
l Little Maintenance Required
l Fire Retardant and Anti-static
l Few Splices & Transition Areas
l High Breaking Load at Maximum Conveying Capacity
l Reliable Joint Point, and Long Useful Life
l Wear Resistant, Rot- and Corrosion-resistant, Resistant to Chemicals and Thermally Stable
Specifications :
Belt strength (ST-NO.) | ST 630 | ST 800 | ST 1000 | ST 1250 | ST 1600 | ST 2000 | ST 2500 | ||
Longitudinal Tensile Strength N/mm |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 | ||
Max Cord diam (mm) | 3 | 3.2 | 4 | 4.5 | 5 | 5.7 | 7.2 | ||
Pitch (mm) | 10 | 10 | 12 | 12 | 12 | 12 | 15 | ||
Belt thickness(mm) | 13 | 14 | 16 | 17 | 17 | 20 | 22 | ||
Rubber Cover Thickness | Top Cover | 5 | 5 | 6 | 6 | 6 | 8 | 8 | |
Bottom Cover | 5 | 5 | 6 | 6 | 6 | 6 | 6 | ||
Belt width (mm) | Numbers of Steel Cord | ||||||||
800 | 75 | 75 | 63 | 63 | 63 | 63 | 63 | ||
1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | ||
1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | ||
1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | ||
1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | ||
1800 |
| 171 | 143 | 143 | 143 | 143 | 114 | ||
2000 |
|
| 159 | 159 | 159 | 159 | 128 | ||
