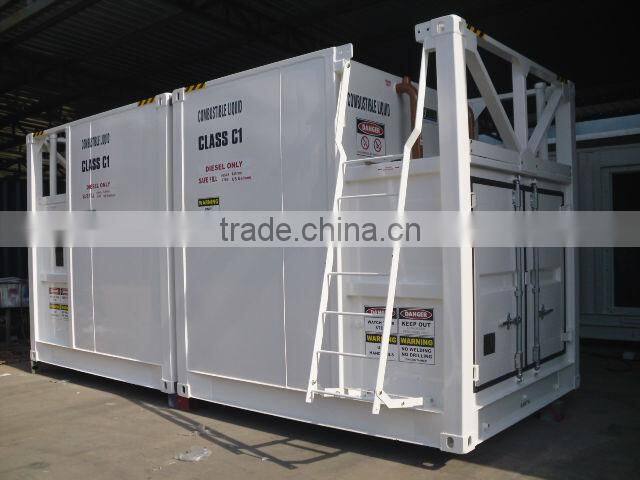

Mining Pumping Package, Refueling Equipment
- SHANGHAI
 - T/T

You May Like
-


ITP TANKS Fuel Dispensing System, Mobile Fuel Station
 -


ITP TANKS Storage and Refueling System, Removable Self-contained Tanks
 -


40ft ITP SERIES CONTAINERISED TANKS, Fuel Storage Tanks, Double Walled
 -


ITP TANKS Fuel Dispensing System, Mobile Fuel Station
 -


Fuel Storage & Refueling, Mobile Container Fuel Station Modular
 -


68KL Bunded Tank, Standards Design to AS1940-2004 / UL142

Product Details
| Place of Origin | Jiangsu, China | Brand Name | INTECH |
Product Description
Specifications
Internation standard , Mobile fuel filling station in container , Easy migration & installation, Low costs,easy to operate.Mining activities put greater demands on pumping equipment than ever before. Conditions like heat, dust, extreme workloads, vibration, high flow rates and harsh operating environments, all test the robustness and practicality of INTECHs’ pumping equipment packages.
Both pumping packages feature the tried and proven Sliding Vane Positive Displacement Pump, Flow meter, supplied with Mechanical Counter, and a range of flow rate nozzles.
Each pumping package is supplied with two dispensing outlets, 450 litres per minute for mining equipment filling, and 80 litres per minute for light vehicle filling. The respective hose lengths are 10 metres in length, for mining equipment filling and 3.6 metres for light vehicle filling points.
The stand alone pumping package is supplied with a power engine to allow for operation without the need for power to be provided. The “Power Required” pumping package requires 380V 3 phase power to be supplied tothe tank.
Specification  | ||
Type  | Fill Rate (lpm)  | Description  |
Mining Pumping Power Required  | 450 (approx)  | • Centrifugal pump c/w 3 phase electric motor • Flow meter with mechanical counter • 2 x High Flow automatic nozzle • 3.8m fuel hose for light vehicle filling, 10m fuel hose for mining equipment filling  |
80 (approx)  | ||
Mining Pumping Stand Alone  | 450 (approx)  | • Diesel engine and fuel pump • Flow meter with mechanical counter • 2 x High Flow automatic nozzle • 3.8m fuel hose for light vehicle filling, 10m fuel hose for mining equipment filling  |
80 (approx)  | ||
Please speak to our sales representative to discuss your specific requirements.
