Specifications

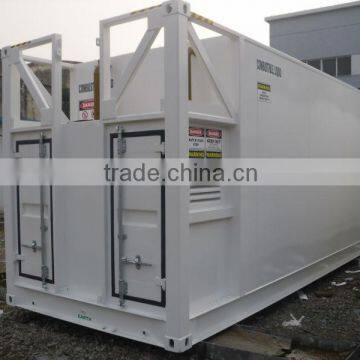

Intech Containers International ITS-68800L Containerised Bunded Fuel Tank
They are a self bunded double wall design which can be transported and relocated easily. It designed with bunded pump bay and inspection platform. It can be customised to suit customer requirements.

Design and manufacturing compliance to AS1940, AS1692.Tanks are designed to comply with the highest environmental standards and to perform in the harshest conditions. Each unit's weather-tight outer tank provides 110% secondary containment of the total capacity of an inner container. This eliminates the risk of spills and jobsite ground contamination, thus protecting the environment for the coming generation.

Standard Tank Features

• Enclosed bunded tank design
• Reduced maintenance costs
• Needs only suitable level hardstanding for sitting on site
• Easily transportable
• Corner casting for offloading
• Galvanized ladder at front and bunded pump bay
• Platform for inspection
• 80nb Camlock Male Tanker hose filler c/w Dust Cap connection.
• 80nb Fire Safe Flanged Ball Valve
• Non Return Valve.
• Ant-isyphon valve
• Tank with pump bund, ladder at front(Ladder also can be designed at side wall)
• 600mm dia manway access to internal tank
• Vent valve
• Unit sandblasted to SA2
• Front mounted security doors (optional)
• Tank signage
• Overfill protection valve.
• Three coat Hemple paints, color customized.

Tank offer

Large Power Generation

Tanks are well-suited for long-term, continuous operation of large generators.

Large Construction Sites & Road Projects

For long-term construction projects requiring fuel tanks for equipment refueling, Intech ITS tanks provide a solid solution

Mining and Oilfield

Significant production operations benefit from larger volume INTECH ITS fuel tanks.

CSC Approval

Individually certified by CCS, each container holds a CSC "Convention of Safe Containers" certificate with a CSC plate mounted on the front of each tank.

Tank Specification

• Dimension: L12,192mm x W2,438mm x H2,896mm
• Capacity: 68,800Litres
• Tare weight: 14,050kg
• Painting System ,Three coats paint

First (Epoxy zinc rich primer)
Second (Epoxy high build)
Third (Polyurethane surface painting)
