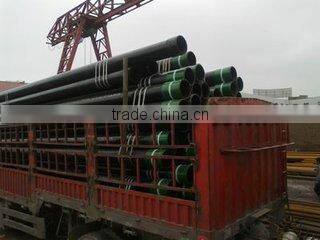

API Standard 4 1/2" Oilfield Tubing for Sale
- Tianjin or Qingdao port
You May Like
Product Details
| Thickness | 3.68, 16 | Section Shape | Round | |
| Outer Diameter | 1.900 - 4.5 inch | Place of Origin | China | |
| Secondary Or Not | Non-secondary | Application | Oil Pipe | |
| Technique | Cold Rolled | Certification | API | |
| Surface Treatment | Galvanized | Special Pipe | API Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Item |
| Tolerances |
Outside Diameter | Pipe Body | D ≤ 101.6mm ± 0.79mm |
D ≥ 114.3mm | ||
Coupling | ± 1%D | |
Wall Thickness | - 12.5% | |
Weight | Single Lengths | +6.5%~-3.5% |
Carload Lots≥18144kg | - 1.75% | |
We offer you pre-sale services, after-sale services which including sales
guidance, information supply & technical support, technical drawing supply,
production planning provide, production schedule provide, inspection support
and certificate provide.
Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise
of Central Plains oilfield branch company of SINOPEC . The company registered capital is
60.83 million yuan, with annual output value 200 million yuan, 580 employees, including
more than 160 technical and administrative staff . Oil machinery is our main products, the
leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas
Tree), pressure vessels, drilling solid control series products and cementing accessories. We
had attained ISO 9001 in 1998 and API Certificates in 2002 .
Size Destination |
Weight Destination |
Outside Diameter |
Wall Thickness | Type of End Finish | |||||||
Grade | |||||||||||
T&C Non-Upset |
T&C External Upset | in | mm | in | mm | J55 | L80-1 | N80 1 ,Q
| C90 | P110 | |
1.900 | 2.75 | 2.90 | 1.900 | 48.3 | 0.145 | 3.68 | PNU | PNU | PNU | PNU |
|
2 3/8 | 4.00 | - | 2.375 | 60.3 | 0.167 | 4.24 | PN | PN | PN | PN | - |
4.00 | 4.70 | 0.190 | 4.83 | PNU | PNU | PNU | PNU | PNU | |||
5.80 | 5.95 | 0.254 | 6.45 | - | PNU | PNU | PNU | PNU | |||
6.60 | - | 0.259 | 7.49 | P | P | P | - | - | |||
7.35 | 7.45 | 0.336 | 8.53 | PU | PU | PU | PU | - | |||
2 7/8 | 6.40 | 6.50 | 2.875 | 73.02 | 0.217 | 5.51 | PNU | PNU | PNU | PNU | PNU |
7.80 | 7.90 | 0.276 | 7.01 | - | PNU | PNU | PNU | PNU | |||
8.60 | 8.70 | 0.308 | 7.82 | - | PNU | PNU | PNU | PNU | |||
9.35 | 9.45 | 0.340 | 8.64 | - | PU | - | PU | - | |||
10.50 | - | 0.392 | 9.96 | - | P | - | P | - | |||
11.50 | - | 0.440 | 11.18 | - | P | - | P | - | |||
3 1/2 | 7.70 | - | 3.500 | 88.9 | 0.216 | 5.49 | PN | PN | PN | PN | - |
9.20 | 9.30 | 0.254 | 6.45 | PNU | PNU | PNU | PNU | PNU | |||
10.20 | - | 0.289 | 7.34 | PN | PN | PN | PN | - | |||
12.70 | 12.95 | 0.375 | 9.52 | - | PNU | PNU | PNU | PNU | |||
14.30 | - | 0.430 | 10.92 | - | P | - | P | - | |||
15.50 | - | 0.476 | 12.09 | - | P | - | P | - | |||
17.00 | - | 0.530 | 13.46 | - | P | - | P | - | |||
4 | 9.50 | - | 4.00 | 101.6 | 0.226 | 5.74 | PN | PN | PN | PN | PN |
Note: P-Plain end N-Non upset threaded and coupled U-External upset threaded and coupled
