20000liter Water Tanker Transport Truck Dimensions Dongfeng Water Bowser Truck
- Shanghai
You May Like
Product Details
| Condition | New | Storage | Water | |
| Drive Wheel | 6x4 | Horsepower | 150 - 250hp | |
| Transmission Type | Manual | Fuel Type | Diesel | |
| Tank Volume | 15001 - 30000L | Dimensions (L x W x H) (mm) | 10000x2500x3400 | |
| Brand Name | Dongfeng | Place of Origin | Hubei, China | |
| Gross Vehicle Weight | 29000 |
Product Description
20T Water Tanker Truck Dimensions Dongfeng Water Bowser Truck
1. Suction≥7m Sprinkler width≥16m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Specification:
Commodity | Dongfeng Water truck | |
Chassis | 6x4 chassis with Cummins engine | |
Cubage (L) | 20000L | |
Vehicle | Overall dimension (length/width/height)mm | 10000x2500x3400 |
| G V W(kg) | 29000 |
| Payload (kg) | 20000 |
| Kerb mass(kg) | 9005 |
| Approach/Departure Angle(°) | 32/14 |
| Front/Rear Suspension (mm) | 1245/2465 |
| Fuel Type | Diesel |
| Fuel consumption(L/100km) | 22 |
| Top speed | 90 |
Engine | Model | B210 33 |
| Exhaust/Power(kw) | 5900/ 210 (210 HP) |
| Manufacturer | Dongfeng Cummins engine technology |
| Type | 6-in-line water cool Turbo Charge engine |
Chassis | Drive type | 6×4 |
| Wheelbase (mm) | 4350+1300 |
| Tread(front/rear)mm | 1940/1860 |
| Front Bridge | 6 Ton |
| Rear Bridge | 10 Ton |
| Transmission | Double spoke wheel, with power steering |
| Gear box | 8-forward gear, one reverse gear, mechanical transmission |
| Clutch | Uniwafer, dry screw spring clutch |
| Brake system | Air brake |
| Cab | One and half row longhead cab |
| Number of spring axles(front/rear) | 8/13 |
| Tire specification | 10.00-20 |
| Air condition | optional |
| Water pump | Self-sucking centrifugal pump |
Water system performance
| Water width | ≥16 |
| Water monitor range | ≥28 |
| Vertical suction range | ≥7 |
| Pressure | 250-450KPa |
| Watering speed | 0.2-2(L/M3) |
| Pump lift | 90m |
| Priming time | <5min |
| Flow | 60 m3/h |
| Rear with working platform, with fire valve, water valve, and filter gauze, water pump, tool box, ect. | |

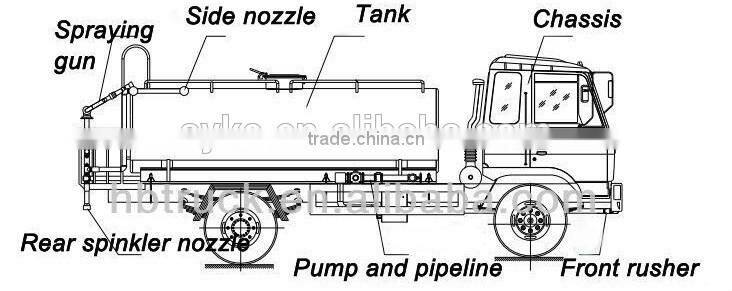

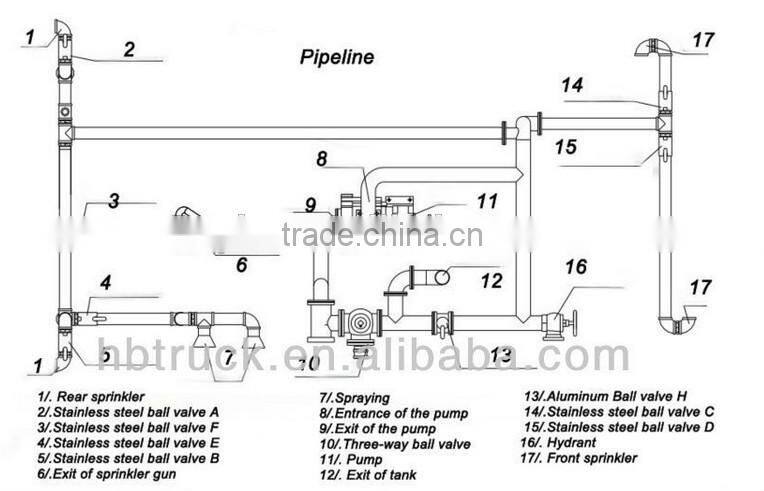

Water truck drawing:
20T Water Tanker Truck Dimensions Dongfeng Water Bowser Truck
