SINOTRUK Truck Mounted Crane Manufacturer Directly Supply With Dealer Price

Chinese truck mounted crane SINOTRUK brand

Dimension(Lx W xH)(unloaded)(mm)

9800×2496×3575,3415,3365(MM)

Cargo body size (LxWxH)(mm)

5700,5800,5900×2326×600,800(MM

arm length (M)

8.5

maximum lifting capacity (tons)

5

Approaching angle/Departure angle(°)

16/15

Overhang(front/rear) (mm)

1500/2625

Wheel base (mm)

4300+1400

Max speed(km/h)(km/h)

102

Curb weight(kg)

11120

Loading Weight(kg)

13750

Engine

(Steyr technology, made in Ch

ina)

Model

WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

213/2200

Emission

EURO2

Fuel tanker capacity (L)

400

Transmission

Model

HW15710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8098

Front axle

Steering with double T-cross section beam

Rear axle

Pressed axle housing, central double reduction

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

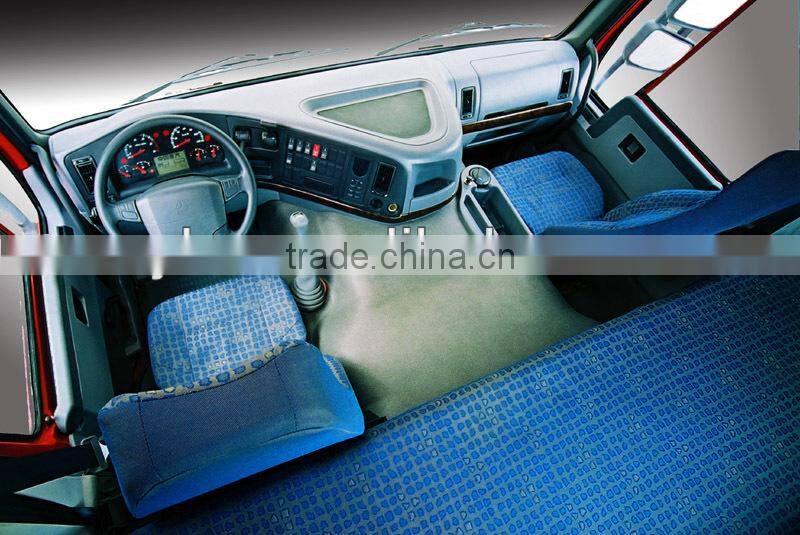

Cab

HOWO76 Standard cab,(air conditions, one sleeper) all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
