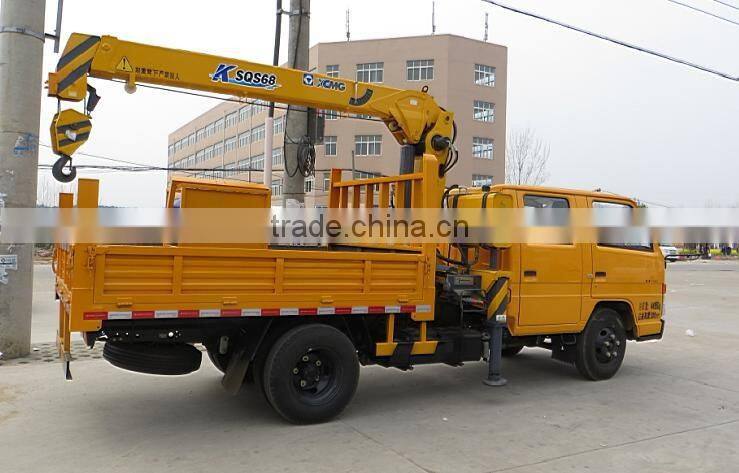

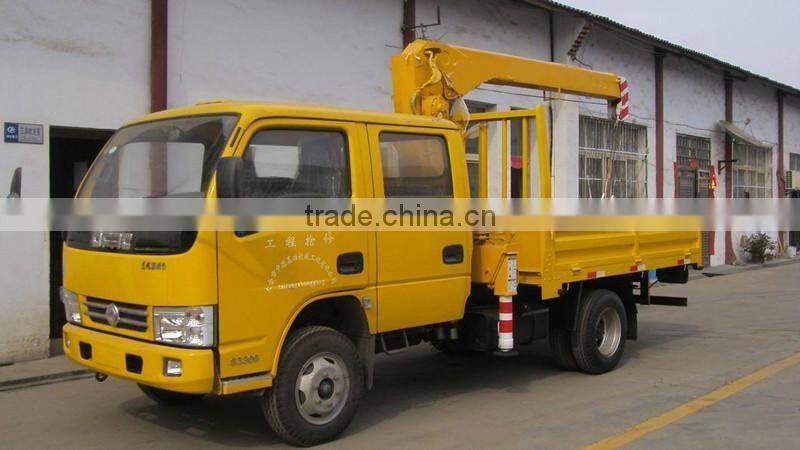

Dongfeng Brand Double Cabin 2 Ton Telescopic Boom Mounted Truck Crane

1.Specification:

4x2 truck with crane 2ton

Product Model

Telescopic 2 boom CRANE

Overall dimensions (L*W*H)

6000×2000×2900mm

Cargo dimensions (L*W*H)

2850×1800×400 mm

G.V.W

Approx 6350 kg

Net weight (kg)

Approx 2855

Rated load (kg)

Approx 3000

Max speed

90 km/h

Allowable passengers

3

Cab type

Flat top. Double cabin

Cab inner

Optional air condition

CHASSIS SPECIFICATION

Chassis model

EQ1060 New chassis, Left hand drive

No. of axle

2

Wheel base

3300 mm

No. of tire & specification

7.00-16

Tractions

4*2

Braking system

Air braking

Operation control system

Power steering

Electric system

24 V

Transmission

Manual,5 forward gear,1 reverse gear

ENGINE SPECIFICATION

Engine model(emission standard)

SD4BW754U

Manufacturer

Sida diesel engine

Fuel type

Diesel

House power

95 hp / 70 kw

Exhaust

3856 ml

TRUCK WITH CRANE EQUIPMENTS AND FUNCTIONS

Crane

telescopic 2 boom crane

Crane lifting weight

2 tons

Crane brand

CLW crane

Landing leg

Using H-leg.

Hydraulic valve

Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube; 24°tie-in.

Optional equipments

About the more details of the crane, Please contact with me.

 Crane specification

Crane Model

SQ2SA1  (2Tons Two sections)

Max lifting load (KG)

2500

Rated Power (KW)

16

Max. lifting torque (N/m)

60000

Rated current (L/min)

50

Section shape

Pentagon

Slewing mechanism

Rotation SPEED:2.3 r/min

Arm

Two arms (one telescopic booms

Rotation angle:360

Length (M)

3.5-5.38

Leg

Upright support

Working radius (M)

7.5

Strided distance (M): 1.85-3.1

Extension speed (M/S)

4.73/21

Hydraulic system

The pressure (Mpa):16

Range ability

0-73

Fuel tanker capacity (L):40

Arm speed (°/s)

76/14

Self weight (KG)

1550

Max. raise height (M)

7.3

Matching truck

The loading must be over 2.5Tons

Single rope allowable tension (N)

6250

Installation space (mm)

950

Crane hook speed (M/Min)

36

The diameter of the crane cable (MM)

9.3

The length of the crane cable (M)

45

Notice:

The parameter on above list is rated parameter when the engine speed is 1500 r/min

Lifting capacity table

Working radius (m)

2.5

3.0

4.0

5.38

Lifting weight (KG)

2500

1880

1080

700
