Home > Products > New Energy Bus > 10m Luxury City Bus
10m Luxury City Bus
Negotiable
/ Unit
1 Unit(Min. Order)
- Shenzhen or Shanghai port
- T/T
You May Like
Product Details
| Seats | 21 - 40 | Emission Standard | Other, zero emission | |
| Transmission Type | Automatic | Max Speed | 51 - 70 km/h | |
| Steering Position | LHD | Fuel Type | Electric | |
| Dimensions (L x W x H) (mm) | 10490*2480*3235mm | Place of Origin | Chongqing, China | |
| Brand Name | Wuzhoulong | Model Number | WZL6100EVG |
Product Description
Specifications
10.5m pure electric intercity busL*W*H:10490*2500*3235mm
Rated passenger: 61/25-39
Top speed: 69km/h
WZL6100EVG Specificatiom
Overall Parameter
| Overall length (mm) | 10490 |
| Overall width (mm) | 2480 |
| Overall height (mm) | 3235 |
| Wheelbase(mm) | 5000 |
| Front/Rear overhang (mm) | 2250 / 3240 |
| Approach/departure angle(°) | 7/ 7 |
| Front/Rear Tread (mm) | 2020 / 1860 |
| Gross Weight(kg) | 16500 |
| Rated Passengers | 61/25-39 |
| Top Speed (km/h) | 69 |
Electric Motor Parameter
| Max Torque(N.m) | 822/1500 |
| Max power (km/r/min) | 100/2000 |
| Electric Motor Model | QYS100-6/240 |
| Electric Motor | induction |
| Electric Motor Position | Rear |
| Emission standard | 0 Emission |
Chassis Parameter
| Chassis Mode/Manufacture | WZL6100DEVR /Chongqing Wuzhoulong |
| Battery/Manu. | EV346V600Ah, Guangdong Power Technology Co., Ltd. Wuzhou Dragon |
| Transmission | QJ1205 |
| Clutch | φ395 ,Electric control ,single .dry style , diaphragm spring |
| Front axle | EQ153 , Forged module, “H”type section, two fist-end type |
| Driving axle | EQ153 Single-grade reduction, hyperbolic gear |
| Suspension | Leaf Spring,3/4 |
| steering | power steering |
| Brake | Dual-circuit drum braking system according with ECE standard .Automatically air-cut brake. |
| Tyre | 275/70R22.5 6pcs |
| Storage battery | 165A.hx2/110A+140A 28 V |
Body
| Frame Structure | Semi-monocoque |

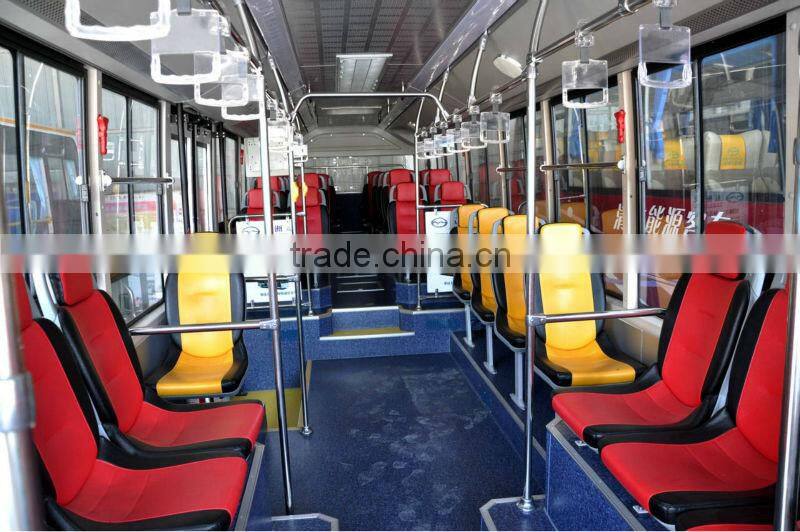

| Interior trim | Integral molding intenerate interior trim, Yellow spray roller spend handrails, Hang Ring 16 pcs |
| door&pump | Front single Phenetic inner-swing passenger door, rear double inner-swing passenger door |
| Window & Windshield | Whole view laminated front windscreen/ Adhesive side window, sliding side window at rear |
| Rear-view / Inner view System | pole shape rear view mirror & inner view mirror, The Inner monitor for Rearing the bus. |
| A/C | Roof style , cool capacity 26000Kcal/h |
| defrost system | electric defrosting |
| Audio-Video System | MP3 |
| Lamp | Front&Rear combination lamp, Long Box Light . |
| Wiper | Opposite scrap wiper with syringe |

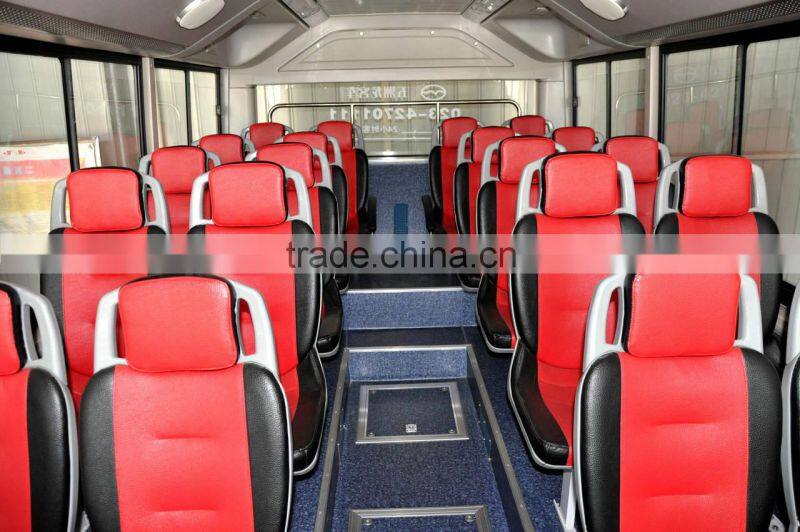

| Seats | 32+1 Injection Molding with soft cushioning Public city bus seats Adjustable driver seats . |
| Floor leather | Anti-sliding floor leather |
| Lacquer | Solid lacquer |
| Others | extinguisher,(4Kg×2), 2 auto distinguishers in engine compartment, froth rail ,Half driver sun-visor, 4 Safety hammers, Air filter access door, Front & Rear luminescence Road Line, Colorful Rearing Monitor, Electric Clock. |
