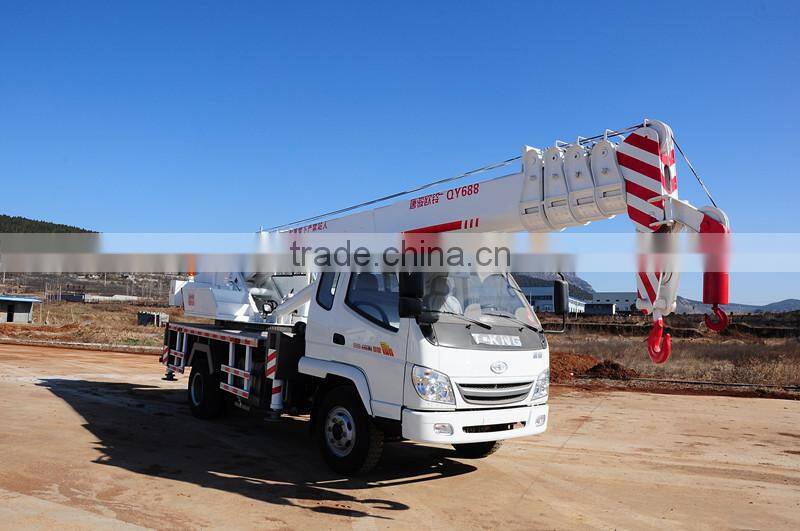

Best Sale 7ton Crane With Truck

Product model

HZ10T-H

Total mass           kg

1.430

Overall dimension     mm

9730*2300*3080

Rated elevating capacity   kg

10000

Rated Lifting torque   kn*m

240

Max. Lifting Height     m

26

Main hook single load   kg

1500

Main hook single elevating speed m/min

50

Auxiliary hook single load kg

300

Auxiliary hook single elevating speed m/min

100

Engine model

YANGCHAI 4102(YZ4DA1-40)

Derailleur model

LG5-38 With high and low speed auxiliary box

Tires

8.25-16 with spare tires

Braking form

Break air brake

Steering form

Hydraulic power steering

Crane jib structure

Category five hexagon box-type, hydro cylinder telescopic boom

Main Lifting Mechanism

Category two planet wheel with a brake inside

Auxiliary Lifting Mechanism

Category one gear brake motor

Swing Bearing

GB Φ1000 Tooth, material 50Mn intermediate frequency

Vertical hydraulicleg

Double-acting engineering oil cylinder

Horizontal hydraulicleg

Double-acting engineering oil cylinder

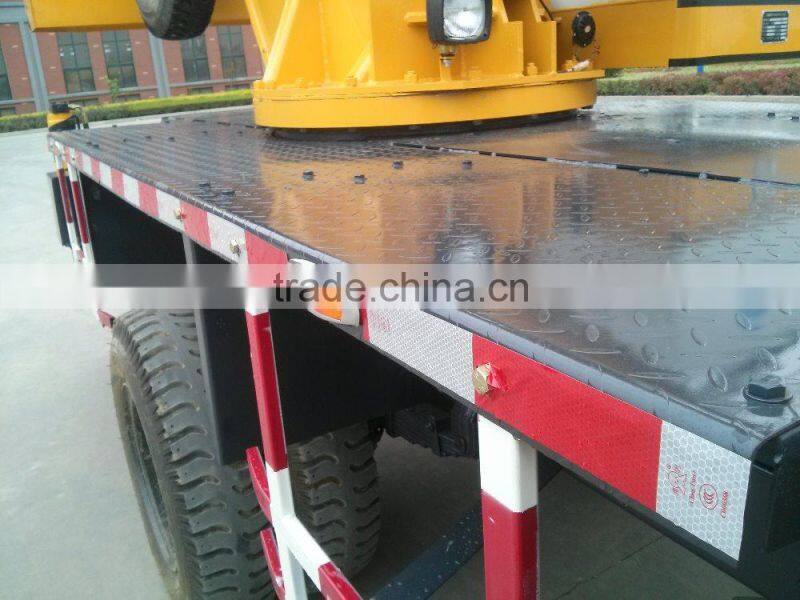

Platform

Anti-skidding and big

Protective Screening

Two-way

Night light

3 lamps control

Dynamic Motor

GB 11KW-6 pole

Crane Cab

Tailor-made

The central axially symmetrical

Four oil ways

Crane Start

Tailor-made

Throttle

Hydraulic

Warning Horn

Mono snail

Pressure gage and switch

Shockproof component

Power Takeoff

Driving indoor operation zip type

Hydraulic Oil Tank

Turntable rearmounted, counter weight combined type, special four-layer filters

Load displayer/ Lift height limiting stopper

Optional
