36U Hot Rolled channel Beam 20MnK
- Tianjin port China
- T/T
You May Like
Product Details
| Standard | GB | Dimensions | 25U;29U;36U | |
| Grade | 20MnK,Q275 | Place of Origin | Hebei, China | |
| Brand Name | YongYang | Model Number | 36U | |
| Shape | U Channel | Application | mineral steel channels | |
| Perforated Or Not | Not Perforated |
Product Description

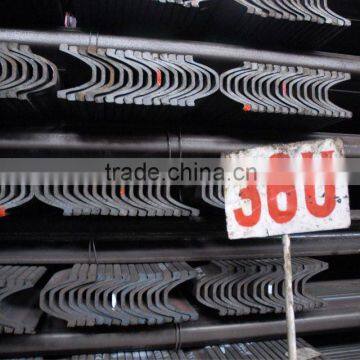

U-type Beam of 36U
Product Introduction
U-type Beam:
Specification: 36U
Standard: GB/T4697-1991, Q/YYG 006-2008
Material: 20MnK, Q275
Length: 8,9,10,12meters/PC.
U beam (25U)20MnK has reached the GB/T4697-1991,Q/YYG006-2008 standard.
THE LIST OF YYGT | ||||||
| Name of Commodity | Specificaton | Materials (Steel Grade) | Standard of Products | Theory Weight (kgs/M) | Length of Dimension (M) | Packed In Bundle With Iron Wire (pcs/bundle) |
| Light Rail | 4kgs/m | Q235 | Q/YYG001-2008 | 4kgs/m | 6,8,9,10 | 75 |
| 8kgs/m | Q235 | Q/YYG001-2008 | 8.42kgs/m | 55 | ||
| 12kgs/m | Q235 | GB11264-89 | 12.2kgs/m | 36 | ||
| 15kgs/m | Q235/55Q/50Q | GB11264-89 | 15.2kgs/m | 28 | ||
| 18kgs/m | Q235/55Q/50Q | YB222-63 | 18.06kgs/m | 21 | ||
| 22kgs/m | Q235/55Q/50Q | GB11264-89 | 22.3kgs/m | 21 | ||
| 24kgs/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kgs/m | 21 | ||
| 30kgs/m | Q235/55Q/50Q | GB11264-89 | 30.1kgs/m | 15 | ||
| Heavy Rail | 38kgs/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 38.733kgs/M | 12,12.5 | 10 |
| 43kg/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 44.653kgs/M | 10 | ||
| 50kgs/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 51.514kgs/M | 10 | ||
| 45/50Mn | Q/YYG002-2008 | 31/34/36/39/41kgs/M | 12,12.5 | 10 | ||
| Crane Rail | QU70 | U71Mn | YB/T5055-93 | 52.8kgs/m | 12,12.5 | 10 |
| QU80 | YB/T5055-93 | 63.69kgs/m | 10 | |||
| QU100 | YB/T5055-93 | 88.96kgs/m | 5 | |||
| QU120 | YB/T5055-93 | 118.1kgs/m | 5 | |||
| I-beam of Hot-Rolled Section Steel for Mine | 9# | 20MnK/ Q235 | YB/T5047-2000 | 17.69kgs/m | 8,9,10 | 28 |
| 11# | YB/T5047-2000 | 26.05kgs/m | 18 | |||
| 12# | YB/T5047-2000 | 31.18kgs/m | 15 | |||
| Hot-Rolled U-Beam Steel for Mine Timbering | 25U | 20MnK/ Q275 | GB4697-1991 /Q/YYG006-2008 | 24.95kgs/m | 8,9,10,12 | 15 |
| 29U | GB4697-1991 | 29kgs/m | 15 | |||
| 36U | Q/YYG006-2008 | 35.87kgs/m | 15 | |||
| Name of Commodity | Specificaton Equal to rails | Materials | Standard of Products | Theory Weight (kgs/set) | Length of Dimension (mm) | Packed In Bundle With Iron Wire (set) |
| Fish Plate | 4/9kgs/M | Q235B or … | GB11265-89 | 0.80 | ≈270-385 | 50 |
| 1.00 | ||||||
| 12kgs/M | GB11265-89 | 1.10 | ≈409 | 50 | ||
| 1.30-1.50 | ||||||
| 15/18kgs/m | GB11265-89 | 1.80-2.00 | ≈372-409 | 25 | ||
| 2.20-2.50 | ||||||
| 2.80-3.00 | ||||||
| 22/24kgs/M | GB11265-89 | 3.30-3.50 | ≈426-510 | 20 | ||
| 3.80-4.00 | ||||||
| 4.20-4.50 | ||||||
| 30kgs/m | GB11265-89 | 5.50-7.50 | ≈561 | 10 | ||
| 8.20-8.50 | ||||||
| 38/43/50kgs/m | GB185-63 | 24-30 | ≈790 | 1 | ||
About Us
1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2008 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.
Welcome your inquiries!
