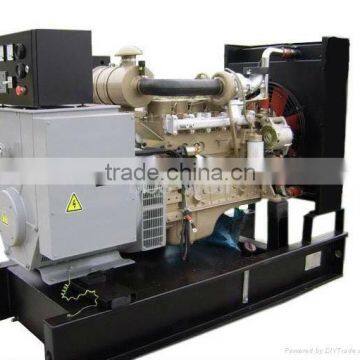

60Hz OEM ISO 225kva Kangmingsi Generator With Kangmingsi Diesel Engines 250hp

60Hz OEM ISO 225kva kangmingsi generator with kangmingsi diesel engines 250hp

This genset is powered by kangmingsi diesel engine, coupled with Marathon alternator;

Stamford,  Siemens and Sanbo alternators are optional;

With Robust foot mounting, Reliable performance and Versatile configurations,

It’s your initial choice for inland power supply.

Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!

Genset Feature

Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Radiator, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.

Model Number: SDC180ll

Prime Power: 180KW/225KVA

Standby Power: 198KW/248KVA

Rated Voltage: 230V/400V/415V/440V

Rated Current: 324A

Output Type: AC 3 Phase

Speed: 1800rpm

Frequency: 60Hz

Dimension: 2310*890*1570 (for reference)

Weight: 2800kgs  (for reference)

Accessories optional: Fuel tank, Canopy, Soundproof enclosure

Diesel Engine Feature

Brand: kangmingsi

Manufacturer: Chongqing kangmingsi Engine Co., Ltd.

Model: 6CTAA8.3-G2

Rated Power: 190KW

Cyl. and arrangement: 6 inline

Bore/Stroke: 114/135mm

Aspiration: turbocharger, aftercooler

Configuration: water cooled closed, 4-strike, direct injection

Governor: Electronic or Manual

Starting Method: DC24V electric motor or air motor

Fuel Consumption: ≤56 L/H

Accessories optional: Governor of manual or servo, Battery charger, Engine coolant and oil heater, Fuel-water separator

Alternator Feature

Brand: Marathon

Manufacturer: Shanghai Marathon-Gexin Electric Co., LTD

Model: MP-180-4

Electric capacity: 180KW/225KVA

Configuration: Brushless, self-excited, AVR, 4 poles

Voltage: 230V/400V/415V/440V

Frequency: 60Hz

Power Factor: 0.8(lagging)

Connecting Type: 3 phase, 4 wires

Insulation: Class H

Protection: IP23

Accessories optional: PMG, Alternator space heater, Anti-condensation heater

Control panel Feature

Brand: Smartgen, Harsen

1. Microprocessor control module, with high stability and credibility

2. Monitoring and measuring operational parameters of the generator set

3. Indicating operation status, fault conditions, all parameters and alarms

4. Multiple protections, multiple parameters display like pressure, temp. etc

5. Manual and automatic work mode selectable

6. Language optional of Chinese, English, Russian etc.

7. LED display, touch control

8. Real time clock display and log entries

Function optional: AMF, ATS, Paralleling, Remote control
